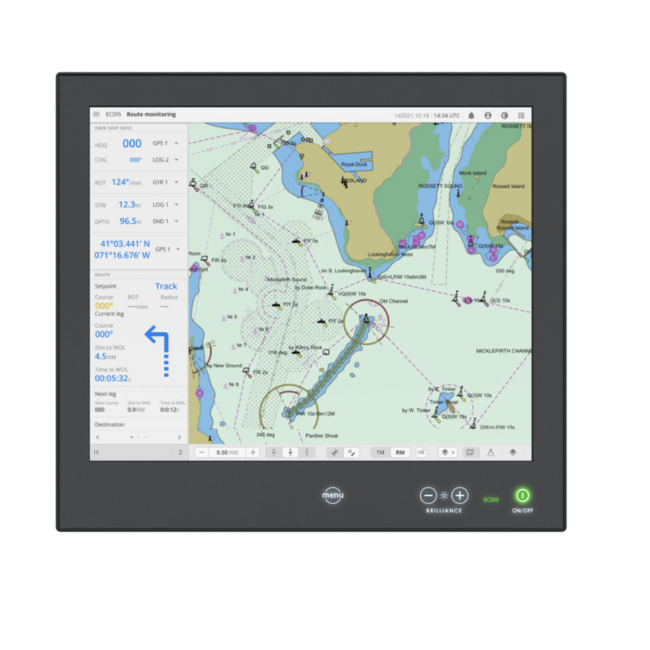

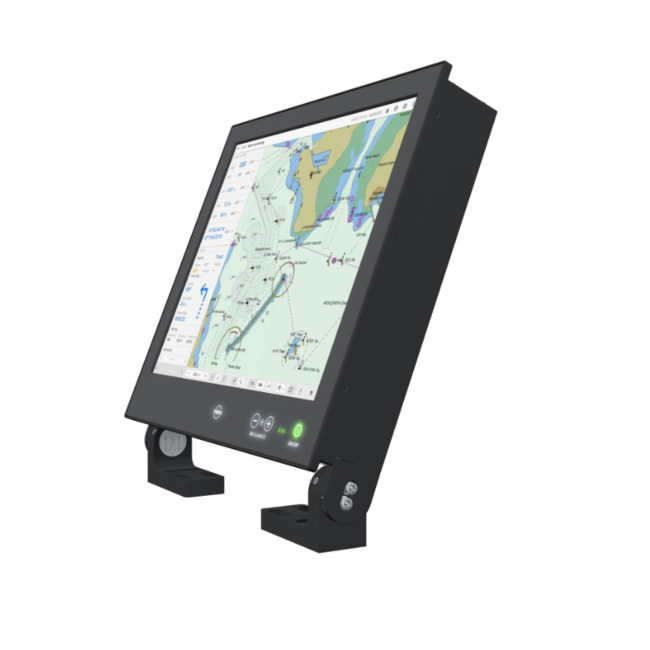

Hatteland HD 17T27 MMD-MA1-FOGP1A 17" LCD Multi Touch Marine Monitor

The Hatteland HD 17T27 MMD-MA1-FOGP1A 17" LCD Multi Touch Marine Monitor is a professional 17" maritime multi display designed to show and control information from connected systems such as Black Box MFDs, navigation processors, onboard computers, automation platforms and camera feeds.

This model belongs to the Hatteland Series X Generation 3 range. The T27 platform is the G3 upgrade of the Series X monitor family, adding upgraded connectivity and a new video scaler while keeping the familiar Series X format used in professional maritime display installations.

With its 17" SXGA display, bonded front glass, Glass Display Control™, PCTouch configuration, AC/DC power setup and Series X G3 architecture, this monitor gives bridge panels and Furuno Black Box systems a larger working screen than the 15" model while still staying compact enough for controlled console layouts.

A 17" Series X G3 Display for Professional Maritime Systems

The HD 17T27 MMD-MA1-FOGP1A is not a standalone chartplotter or multifunction display. It is a Maritime Multi Display built to work as the visual and touch interface for external systems.

The 17" format is a strong middle choice in the Series X G3 range. It gives more screen area than a 15" monitor for navigation, monitoring or camera views, without moving into the larger footprint of a 19" or 24" bridge display.

This model is particularly relevant for:

• Furuno Black Box systems where the processor is separate from the display and the monitor is used as the dedicated visual and touch interface
• Bridge panel upgrades that need more display area than a 15" unit while still keeping the console layout controlled
• Onboard computer output for navigation, monitoring or control software
• Automation, alarm, camera or CCTV display points that need a dedicated marine-grade visual interface
• Professional bridge upgrades built around a compact Series X G3 monitor, with modern connectivity, reliable touch control and cleaner signal handling

For the operator, the benefit is clear: a larger, marine-grade working screen that keeps critical information easier to read and control without forcing the installation into an oversized display. The HD 17T27 MMD-MA1-FOGP1A is especially relevant when the bridge needs stronger visibility and integration flexibility, but still has to respect panel space.

Key Technical Specifications

• Brand: Hatteland
• Model reference: HD 17T27 MMD-MA1-FOGP1A
• Product number: 138419
• Product type: 17" Maritime Multi Display / Marine Monitor
• Series: HATTELAND® Series X G3
• Screen size: 17.0"
• Native resolution: 1280 x 1024 pixels, SXGA
• Brightness: 350 cd/m² typical
• Contrast ratio: 800:1 typical
• Viewing angle: 80° down/left/right, 60° up
• Configuration: ACDC, Black, Bonded, GDC, Buzzer, PCTouch
• Touch configuration: PCTouch
• Generation improvements: upgraded connectivity and new video scaler

The product listing identifies this exact reference as HD 17T27 MMD-MA1-FOGP1A, product number 138419, with 17", ACDC, Black, Bonded, GDC, Buzzer and PCTouch configuration.

Compatibility Details That Matter Before Ordering

Before choosing this monitor, check the details that decide whether it fits the connected system and bridge layout:

• Use 1280 x 1024 SXGA for best image quality. This is the native resolution of the 17" display and the correct target resolution for the connected processor or onboard computer.

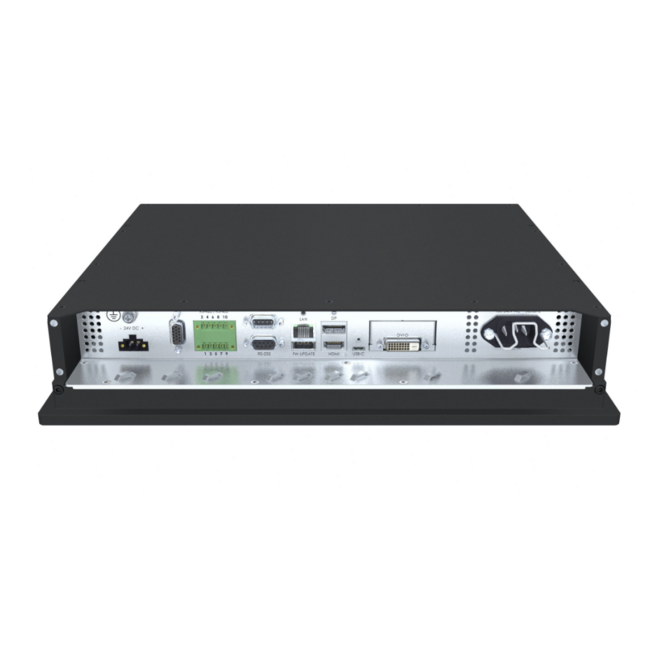

• Match the processor output to the T27 input configuration. The G3 platform introduces updated I/O interfaces and a new video scaler, so the connected system should be checked against the monitor’s selected input configuration before ordering.
• Confirm touch communication. This configuration includes PCTouch, so the connected processor or computer must support the required touch interface if touch control will be used.
• Check Furuno Black Box integration. This monitor is suitable for compatible Furuno Black Box and professional bridge display environments, provided the processor output matches the monitor’s supported video inputs and touch support is available when touch control is required.
• Plan refits around the Series X form factor. Hatteland states that G3 units follow its FormFit principle, inheriting predecessor sizes and form factors to support easier replacement planning.
• Review legacy system needs before ordering. Hatteland highlights adapter cables and custom expansion options for smoother integration with legacy systems during the transition from G2 to G3.

What the 17" T27 Upgrade Adds

The move from Series X G2 to Series X G3 is mainly about making the monitor platform more suitable for current bridge systems and future refits.

The key improvements are:

• Upgraded connectivity for modern processors, onboard computers and digital bridge systems
• A new video scaler for better handling of different signal resolutions and source types
• Improved retrofit logic for installations moving from older Series X displays
• Continued Series X design quality, including Glass Display Control™, bonded front configuration and professional maritime display architecture

For bridge layouts that need more screen space without moving to a larger display format, the HD 17T27 MMD-MA1-FOGP1A brings the benefits of the Series X G3 platform into a balanced 17" size, combining modern connectivity, improved signal handling and strong retrofit value in one professional marine display.

Frequently Asked Questions About the Hatteland HD 17T27 MMD-MA1-FOGP1A 17" Monitor

• Is the Hatteland HD 17T27 MMD-MA1-FOGP1A a chartplotter?

No. This product is a marine monitor, not a standalone chartplotter. It must be connected to a compatible Black Box MFD, onboard computer, navigation processor, camera source or monitoring system.

• What is the resolution of the HD 17T27 MMD-MA1-FOGP1A?

This 17" model has a 1280 x 1024 SXGA resolution, giving it more screen detail than the 15" XGA version.

• What is the difference between the 15" and 17" T27 models?

The 17" version provides a larger SXGA display, making it better for bridge positions that need more readable screen space for navigation, monitoring or camera feeds. The 15" version is better when panel space is the main limitation.

• What is the difference between HD 17T22 MMD and HD 17T27 MMD?

The HD 17T22 MMD belongs to Series X G2, while the HD 17T27 MMD belongs to Series X G3. The T27 platform adds upgraded connectivity and a new video scaler while keeping the established Series X display concept.

• Can this monitor be used with Furuno Black Box systems?

This monitor is suitable for compatible Furuno Black Box and professional bridge display environments, provided the Furuno processor output matches the monitor’s supported video inputs and touch support is available when touch control is required.

• When should I choose the 17" version instead of a 19" monitor?

Choose the 17" version when the installation needs more display area than a 15" monitor but does not have the space, viewing distance or layout requirement for a 19" screen. It is a balanced choice for compact professional bridge panels and Black Box stations.

A Professional Marine Monitor Selected for Balanced G3 Bridge Installations

The Hatteland HD 17T27 MMD-MA1-FOGP1A is a strong choice for vessels that need a larger compact display with the newer Series X G3 platform. It is especially relevant for Black Box systems, navigation processors, onboard computers, camera feeds, automation screens and refit projects where screen size, connectivity and installation continuity all matter.

At Sail360, this type of high technology marine monitor is selected for buyers who need more than a standard screen. Our focus is to make advanced marine electronics easier to compare, with clear product information that helps boat owners, refit specialists and professional users understand what fits their system before they buy.

Whether you are upgrading from a previous Series X display, building a Black Box setup or replacing an unsuitable monitor with a professional maritime display, Sail360 helps you choose with stronger technical clarity and better purchase confidence.

Brochure

Hatteland HD 17T27 MMD Series X G2 Datasheet

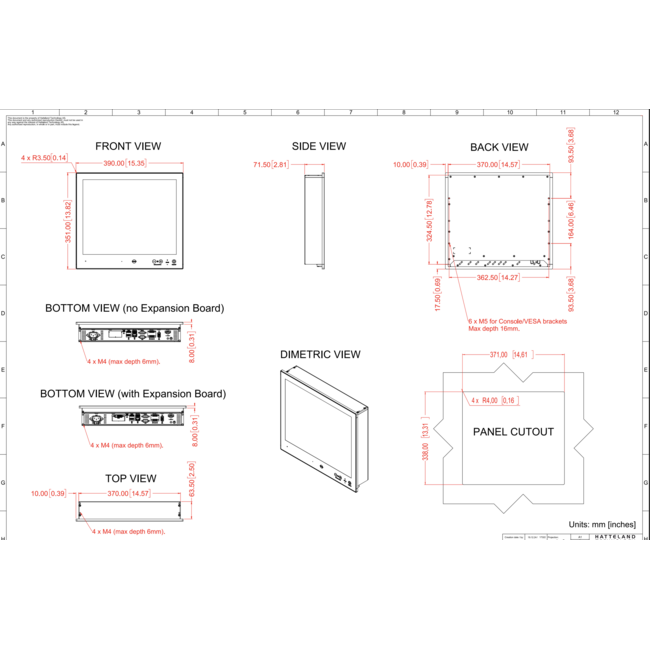

Hatteland HD 17T27 MMD Technical Drawings
