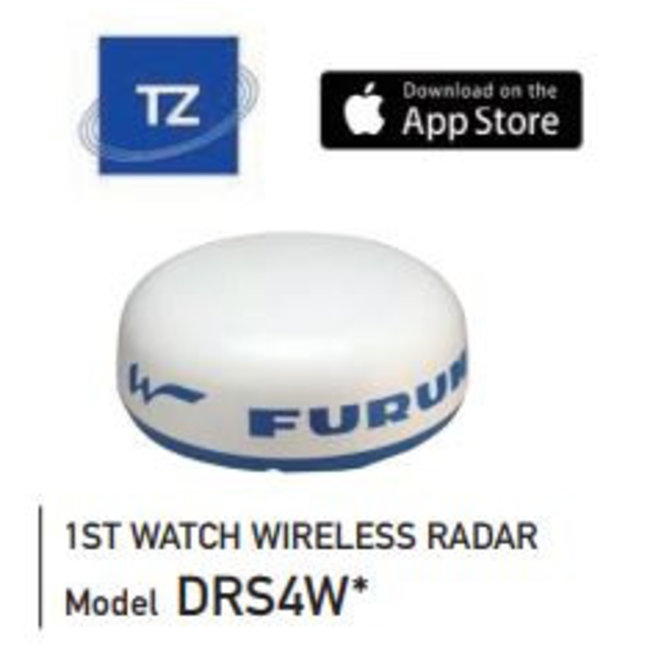

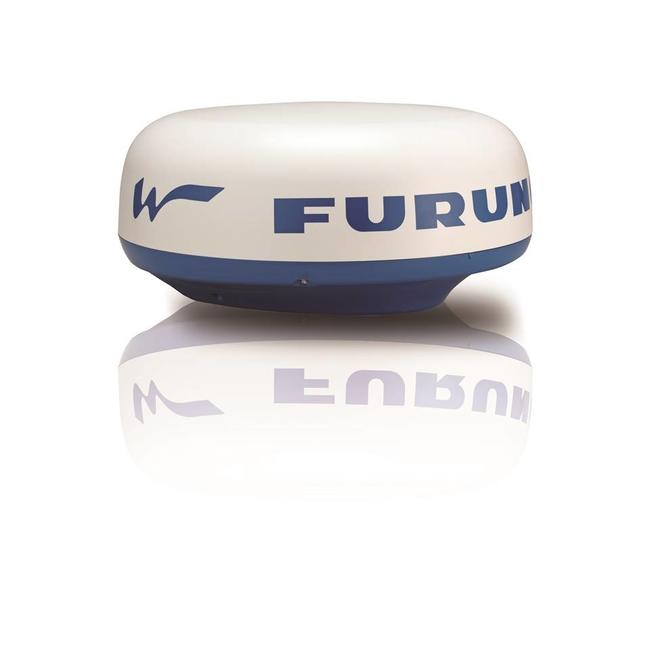

FURUNO WIFI Boot Radar Sensor DRS4W

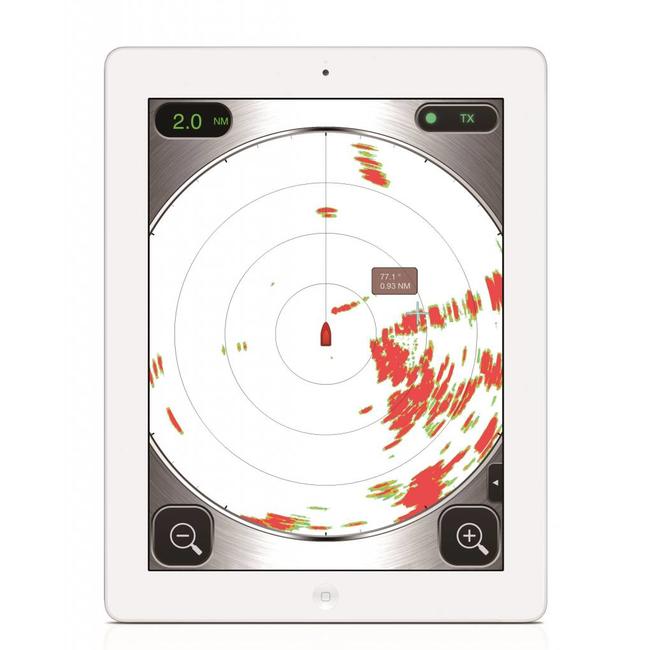

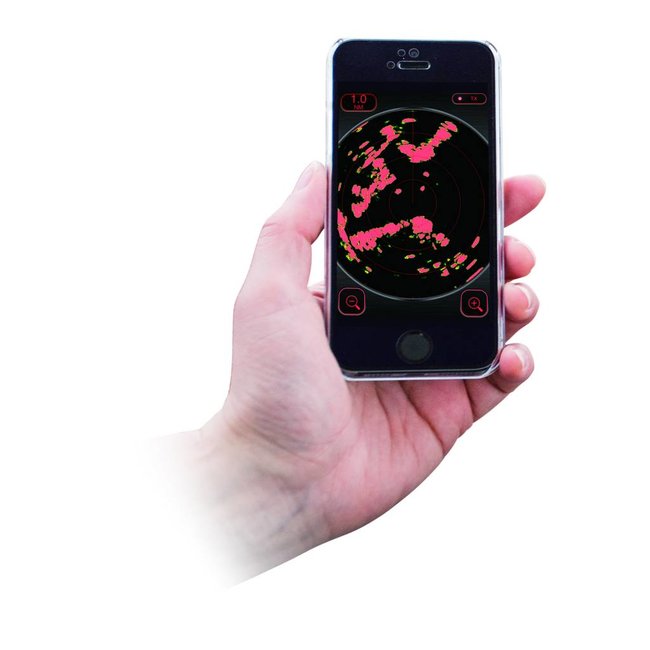

The FURUNO WIFI Radar Model DRS4W is a groundbreaking marine radar sensor that is the first to Wireless display radar images on your iOS devices. This innovative system uses advancing technology, allowing you to view radar images directly on your iPad or iPhone without the need for a traditional MFD plotter – although this can of course be integrated at a later date.
Innovative Functionality and Ease of Use

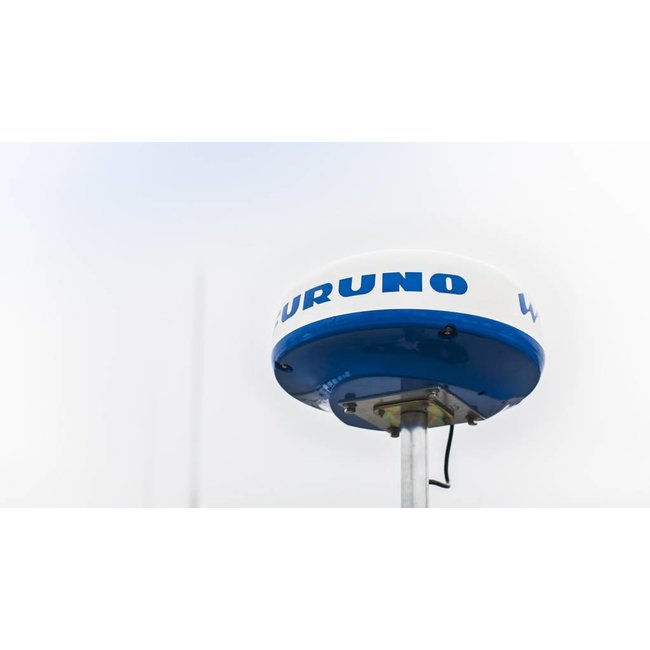

After simply installing the antenna and downloading the free Radar App from the Apple Store, you will have direct access to real-time radar images. Thanks to the wireless connection, you can move freely up to 10 meters over your boat with full visibility of your surroundings. In addition, up to two devices can be connected simultaneously, making this system attractive to both the modern recreational sailor and the professional skipper.
In-depth Technology and Applications
With a transmission power of 4 kW and an impressive range of 0.125 to 48 miles (according to software version 1.05), this radar delivers reliable and sharp images. The system has a rotation speed of 24 revolutions per minute and operates on a supply voltage of 12-24 Volt DC with a modest power consumption. The simple installation – requiring only 12 volts and no additional cables – ensures stress-free integration, while features such as the guard zone and the option for a radar overlay with the TIMEZERO navigation APP provide additional safety and ease of use.
Product Contents and Basic Features

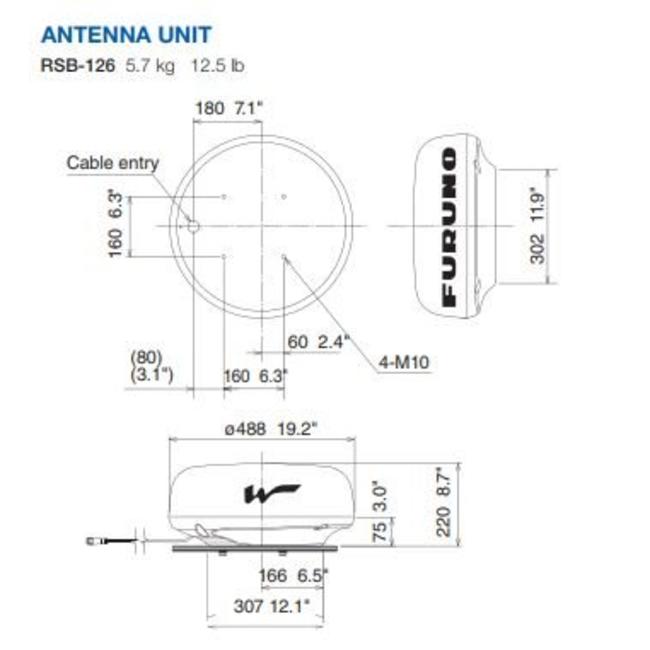

- 19" Radome Antenna
- 50ft Power Cable
Key Features
- 4kW Transmitting Power
- 0.125 to 48 Mile Range (Software Version 1.05)
- 24 RPM for Optimal Coverage
- 12-24 Volt DC Power Supply with Low Power Consumption
- Lightweight (only 12 lbs.) and Compact Installation
- WIFI Connection with a Range of up to 33ft
- Guard Zone Function and Radar Overlay via TIMEZERO Navigation APP
- AIS Integration Possible and Support for Two iOS Devices Simultaneously
- Video Demonstrations and Additional Information
Watch the video below to see the installation and operation of the wireless radar in action:
For additional explanation about the synchronization between iPhone and iPad and a demonstration of the radar in a real sailing situation, also watch the video below
New is the
Furuno Navpilot-300 autopilot which completes the navigation system in a combination package with the WIFI radar and the plotter.
Why Choose FURUNO WIFI Radar?
This system offers more than a standard product description. The FURUNO WIFI Radar Model DRS4W has delivered a huge technology with an intuitive interface, giving you a product that is not only innovative, but also offers direct added value in practice. The wireless functionality, together with the possibility of integration with other navigation systems, makes it an ideal choice for both the technically skilled skipper and the recreational user.
With a careful determination of performance, use and modern connectivity, this radar is a unique added value to any boat equipment
http://www.furuno.com/special/en/wireless/radar/index.php
DRS4W user manual
