SCANSTRUT SC-12 fixed mast bracket radome for 46/49 cm Radarantennes

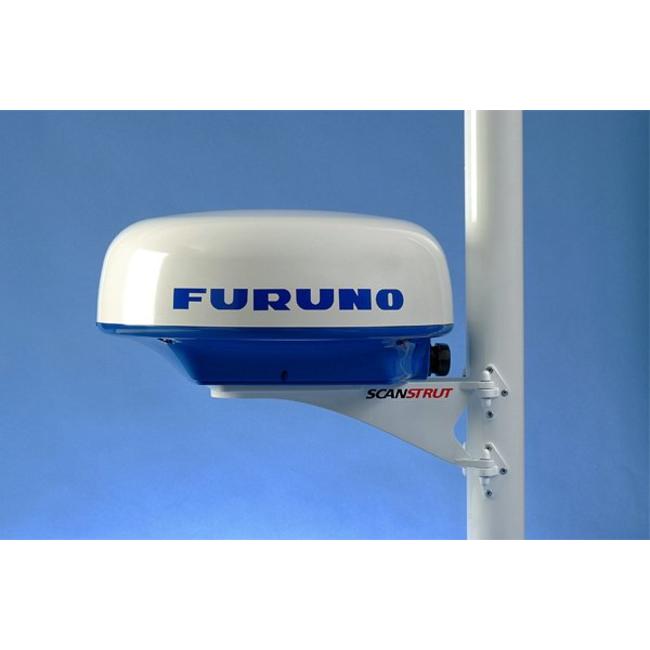

SCANSTRUT SC-12 FIXED MAST BRACKET RADOME

Intended for the closed radome antennas and small Satcom / TV antennas

Characteristics:

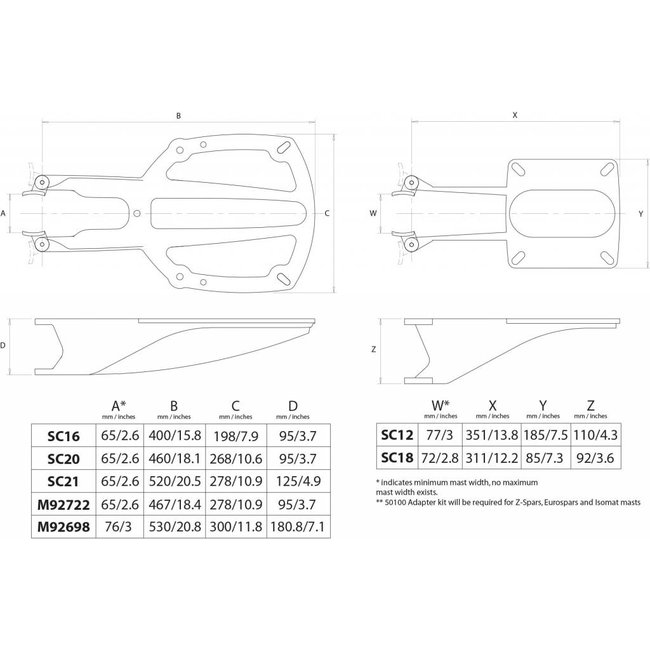

• For radomes with a diameter of 46 - 49 cm
• Simple assembly, tailored to Furuno dimensions
• Robust 12-point mast attachment
• Rotatable attachment points that adapt to the mast profile
• Minimum width of the mast profile 65 mm
• No maximum width mast profile

SC-12 Fixed mast bracket can be used for the following Radomes

Optionally available:

• safety cable
• Stainless steel protection ring against abrasions through sails or lines for SC-12 fixed mast bracket radome
