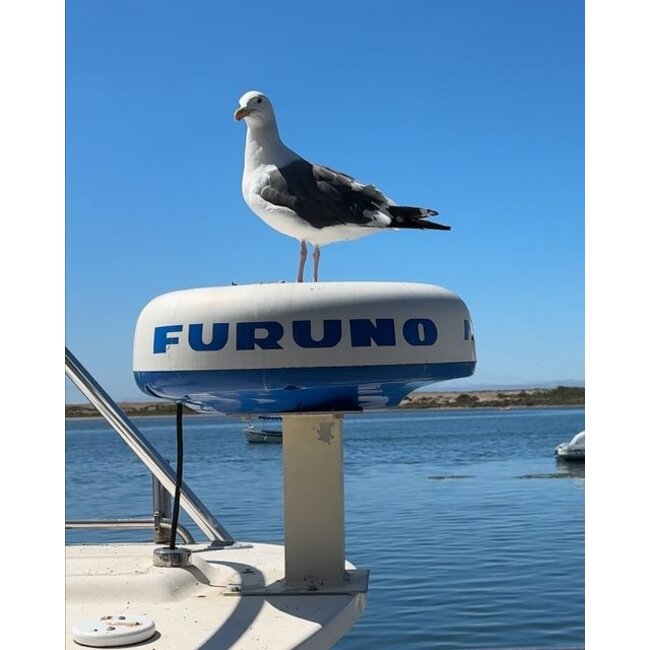

The Furuno DRS4DL 4kW Radome Radar Sensor is a compact and economical priced radome for use on board smaller vessels with the familiar Furuno quality and the advantages of Ultra High Definition (UHD ™) Digital Radar. UHD ™ offers a crystal-clear fluid target presentation thanks to automatic real-time digital signal processing. Due to the small dimensions and relatively low weight very suitable for mounting on an auxiliary pole, mast bracket or the salvage of sailing ships. The transmission power is 4 kilowatts, good for a maximum range of 36 nautical miles. Can be connected directly to NavNet TZtouch and TZtouch2 systems, no separate power supply is required. The power consumption is less than 30 watts.
DRS4DL comes with:
Radome 48.8 cm 19 inch Radar antenna
Cables available in lengths from 10 to 30 meters to be ordered separately
4 kW transmission power
Range: 0.0625 to 36 nautical miles
Horizontal opening angle of the antenna: 5.2 degrees
Vertical opening angle of the antenna: 25 degrees
Rotational speed 24 revolutions per minute
Weight 7 Kg
Supply voltage 12-24 Volt dc, 2.1 / 1A

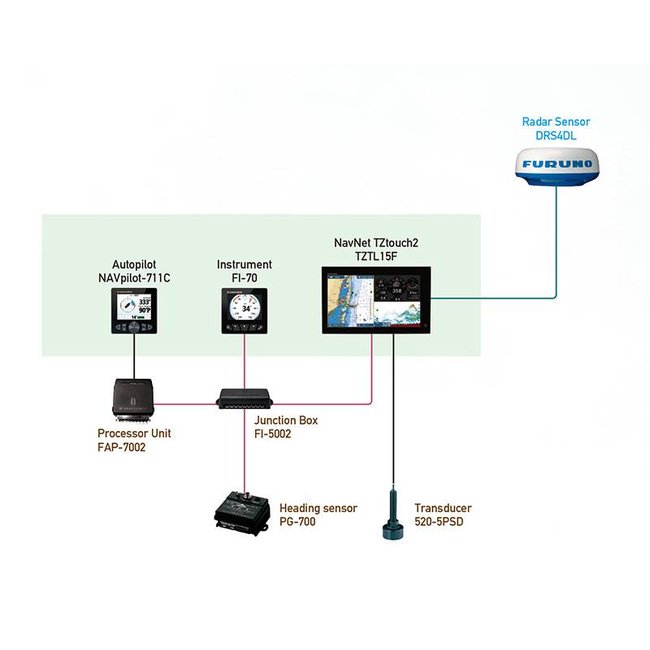

DRS4DL for use with the NavNet TZtouch and TZtouch2
Without the need to purchase a separate power supply unit
Suitable for recreational ships, fishing vessels and work boats.
