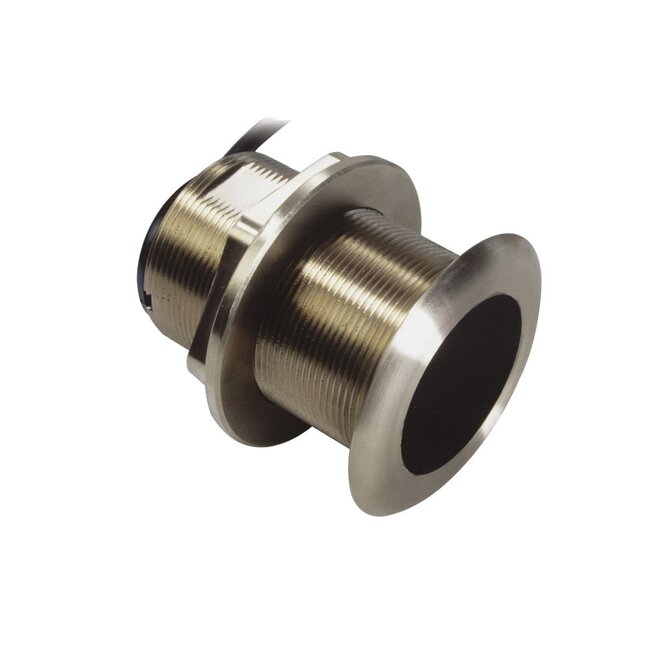

B60 50/200A Thru Hull Transducer
The SS60 is a 600 W, 50/200 kHz transducer that incorporates Airmar’s proven Tilted Element technology for enhanced performance on boats with angled hulls. With the ceramic element fixed at either a 20° or 12° tilt inside the housing, the SS60 compensates for hull deadrise when installed nearly flush, orienting the beam straight down for stronger echo returns and more accurate depth readings.
Available in two Tilted Element models:
20° tilt for hull deadrise angles of 16 to 24°
12° tilt for hull deadrise angles of 8 to 15°
FEATURES
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile housing extends only 5 mm (3/16") below the hull
- No effect on your boat’s running performance
- Stainless steel housing for use in all hull materials
- Available in a bronze housing (B60) for use in a fiberglass or wood hull
SPECIFICATIONS
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Stainless Steel
- Functions: Depth, Temperature
- Hull Material: Compatible w/ all hull materials
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)
- Usable Shaft Length: 68.5 mm (2.70")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: Yes
- Weight: 1.4 kg (3 lb.)
