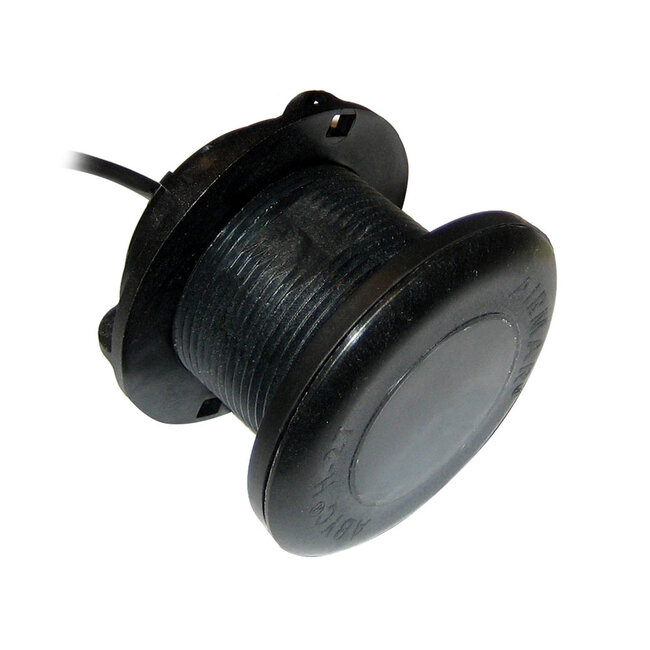

P7 200BB Thru Hull Transducer
The plastic P7 is part of Airmar’s Shorty™ Series, specifically designed for boats with limited headroom. With a housing that is 28 mm (1.10") shorter than the P19, the P7 is ideal for tight installation spaces. Its low-profile design sits nearly flush with only 5 mm (3/16") extending outside the hull, minimizing drag and eliminating turbulence to ensure exceptional high-speed echo sounder performance.
FEATURES
- Depth only or depth and fast-response water-temperature sensing
- 350 W of power
- 235 kHz frequency with an 11° beamwidth for depth performance to 176 m (600')
- Can be installed in tight spaces with only 153 mm (6") of headroom
- Total height of transducer is only 71 mm (2.8")
- Low-profile housing extends only 5 mm (3/16") below the hull
- Right-angle cable exit saves space and protects transducer if stepped on
- Plastic housing is ABYC H-27 compliant
- Available in a plastic housing only
SPECIFICATIONS
- Cable-Length: 9 m (29.5')
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Conventional Beam: 11°
- Country of Origin: USA
- Frequency Band: 235 kHz
- Material: Plastic
- Max Deadrise: Best performance through 7°. Accommodates up to 12°
- Max Depth: 183 m (600')
- Mounting Style: Low Profile Thru-Hull
- Single or Dual Frequency: Conventional Single Frequency
- Tilted Element: No
- Weight: 0.5 kg (1.1 lb.)
- Power Rating: 375 W
- Max Deadrise Angle: 12°
- Functions: Depth, Depth, Temperature
- Hull Material: Fiberglass or metal
- Hole Size: 51 mm (2")
- Display Connector: FISO
