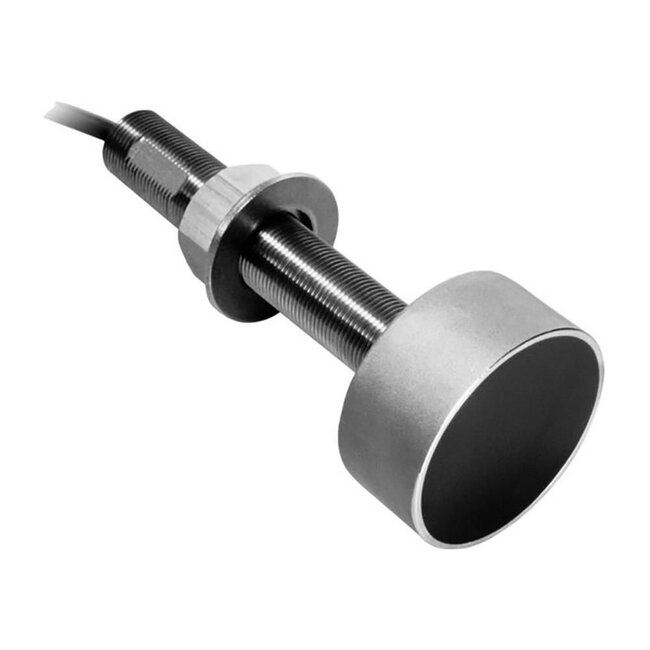

SS505 Transducer Thru Hull Depth
The SS505 is a compact and impact-resistant stainless steel stem transducer suitable for all hull types. This dual-frequency model offers reliable performance with excellent target detail in shallow water at 200 kHz and effective deep-water bottom tracking at 50 kHz. The narrow beam of the 200 kHz frequency ensures clear bottom definition. For optimal results, Airmar recommends using a High-Performance Fairing with all SS505 installations.
FEATURES
- Good sensitivity in a compact housing
- Depth and temperature
- High-Performance Fairing reduces drag and directs smooth water over the transducer’s face for excellent echosounder performance at all speeds
- Includes kit to isolate the stem from metal hulls, minimizing the possibility of electrolytic corrosion
- Faring vertically orients sound beams for stronger return echoes resulting in optimal sounder performance
- Airmar’s SS505 fairing is easy-to-cut and will not swell or rot
- Optional temperature sensor
- Stainless steel housing only
- Boat Size: 9 m (30’) and up
SPECIFICATIONS
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 5-Pin (MM)
- Conventional Beam: 45°/12°
- Frequency Band: 50/200 kHz
- Max Deadrise: Up to 28° with fairing
- Max Depth: Low frequency- 235 m to 353 m (800’ to 1200’) at 50 kHz, High frequency- 118 m to 206 m (400’ to 700’) at 200 kHz
- Mix and Match Series: 5-Pin 600 Watt
- Mounting Style: Thru-Hull
- Sensor Connector: MM
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 1.0 kg (2.3 lb.)
- Power Rating: 600 W
- Housing: Stainless Steel
- Functions: Depth, Depth, Temperature
- Hull Material: All hull materials
- Max Vessel LOA: 9 m (30') and above
- Hole Size: 22 mm (7/8")
- Display Connector: MM
