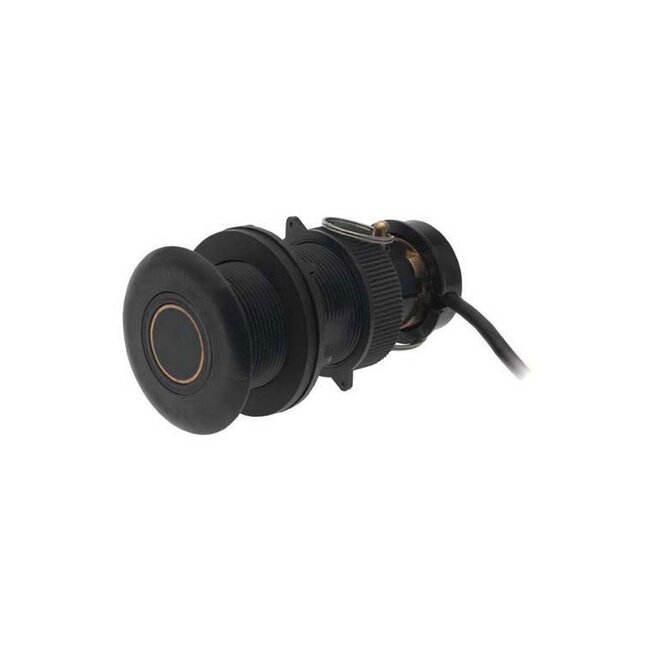

UST850 P17 Ultrasonic Speed Sensor

Airmar’s patented UST850 just turned your maintenance time into more cruising time, and made your boat smarter too. This innovative sensor delivers ultrasonic speed and temperature data through a single thru-hull housing, all without any moving parts. It’s a high-precision, low-maintenance solution ideal for both power and sailboats of any size. Eliminate the need for paddlewheel maintenance and embrace the reliability of Smart™ technology, brought to you by the company that invented the Smart™ Sensor.

FEATURES

• Ultrasonic speed and fast-response water-temperature sensing
• Single housing with no moving parts—no paddlewheel
• Advanced filtering and sampling rates for increased accuracy at all speeds
• Adapts automatically to increases in speed so accuracy remains constant
• Retractable plastic insert in a low-profile, plastic or bronze housing with a water valve
• Retrofits into Airmar’s plastic (P17) or bronze (B17) housing
• Airmar's Smart™ Sensor technology

SPECIFICATIONS

• Functions: Speed, Temperature
• Mounting Style: Thru-Hull
• Power Rating: N/A
• Protocol Output: NMEA 2000®
• Housing: Plastic
• Hull Material: Fiberglass or metal
• Hole Size: 51 mm (2")
• Retractable Housing: Yes
• Acoustic Window: Urethane
• Cable-Length: 6 m (20') NMEA 2000® cable
• Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
• Data Rate: Up to 10 times per second
• NMEA 2000 LEN: 7
• Retrofits: Retrofits into AIRMAR P17, B17, P617V housings
• Speed Range: 0.1 to 50 knots (0.1 to 57 MPH)
• Temperature Accuracy: ±0.5°C (±1.8°F)
• Tilted Element: No
• Usable Shaft Length: 57 mm (2.25")
• Voltage: 9 to 16 VDC
• Water Temperature: -10° to 40°C (14° to 104°F)
• Weight: 1.4 kg (3 lb.)

BROCHURES

• UST850 P17 Ultrasonic Speed Sensor Brochure
• UST850 P17 Ultrasonic Speed Sensor Installation Instructions
