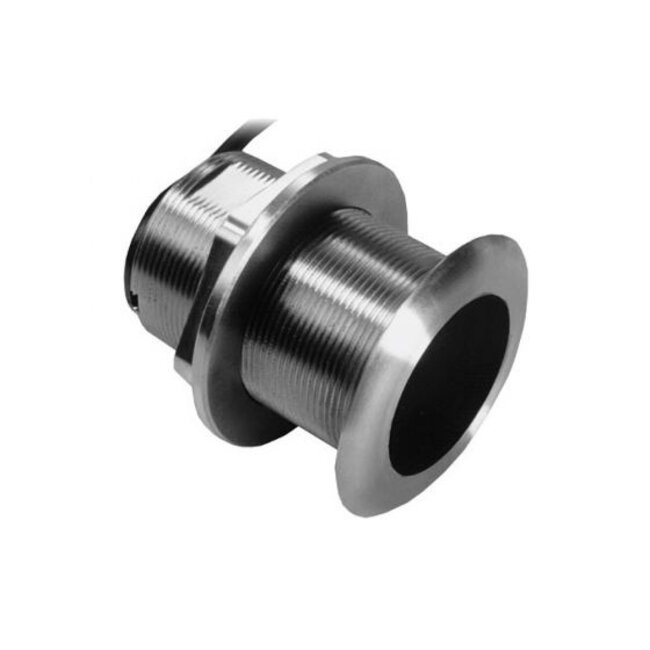

SS60 50/200A Thru Hull DST
The SS60 is a 600 W, 50/200 kHz transducer featuring Airmar’s popular Tilted Element™ design. The ceramic element is fixed at either a 20° or 12° angle within the housing, allowing it to compensate for the hull’s deadrise when installed nearly flush to the hull. This orientation directs the sonar beam straight down, maximizing echo returns and improving depth accuracy.
Available Tilted Element versions:
20° tilt for hulls with a 16 to 24° deadrise
12° tilt for hulls with an 8 to 15° deadrise
FEATURES
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile housing extends only 5 mm (3/16") below the hull
- No effect on your boat’s running performance
- Stainless steel housing for use in all hull materials
- Available in a bronze housing (B60) for use in a fiberglass or wood hull
SPECIFICATIONS
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Stainless Steel
- Functions: Depth, Temperature
- Hull Material: Compatible w/ all hull materials
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm (2-3/4") (metal hull)
- Usable Shaft Length: 68.5 mm (2.70")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24°
- Max Depth: Low frequency – 366 m (1200'), High frequency – 206 m (700')
- Mounting Style: Tilted Element Thru-Hull
- Retractable Housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: Yes
- Weight: 1.4 kg (3 lb.)
