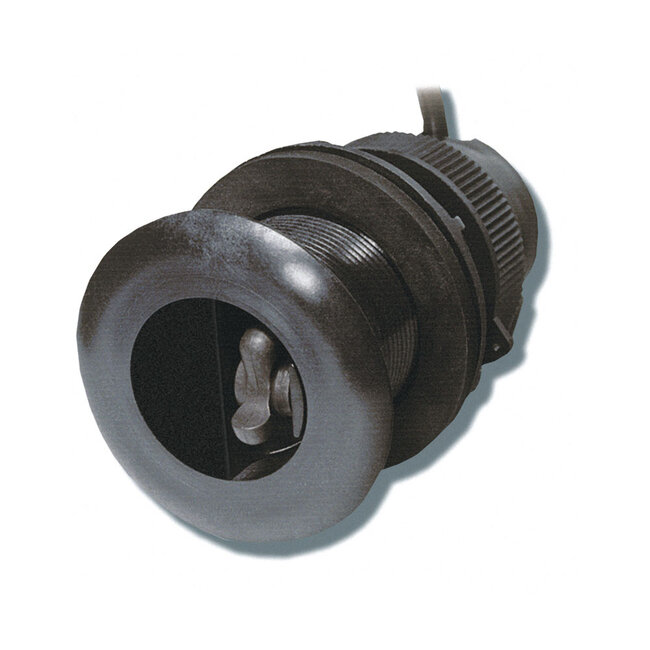

DST800 P17 Thru Hull Transducer
The DST800 is an analog Triducer multisensor that combines depth, speed, and temperature functions in a single, compact thru-hull housing. This low-profile, retractable sensor delivers accurate data to a compatible display using just one cable, simplifying installation and reducing onboard clutter. Its wide, fan-shaped beam scans port to starboard, allowing the DST800 to maintain bottom tracking even on vessels with high-deadrise hulls or when a sailboat is heeling. Designed for reliability and versatility, it’s a practical choice for a wide range of recreational and light commercial applications.
FEATURES
- Depth, speed, and temperature in one compact housing
- Depth performance from 500 mm to 185 m (1.6 to 600')
- Wide, port-starboard, fan-shaped beam is able to find bottom even when installed on high-deadrise hull or heeling sailboat
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Analog output sensor operating at 200 kHz
- Also available in NMEA 0183 or NMEA 2000 standard
- Plastic housing with water valve
- Available in a paddlewheel-free model, utilizing ultrasonic speed calculation-- see UDST800
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 9 m (29.5')
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Connector: Raymarine FISO
- Conventional Beam: 13°
- Country of Origin: USA
- Data Rate: 1X per second
- Frequency Band: 200 kHz
- Material: Plastic
- Max Deadrise: Up to 22°
- Max Depth: Up to 100 m (330')
- Mounting Style: Tilted Element Thru-Hull
- Protocol Output: Analog
- Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Single Frequency
- Speed Range: Up to 45 knots
- Temperature Accuracy: ±0.5°C (±1.8°F)
- Tilted Element: No
- Water Temperature: -10° to 40°C (14° to 104°F)
- Weight: 0.9 kg (2 lb.)
- Power Rating: 250 W
- Max Deadrise Angle: 22°
- Housing: Plastic
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or metal
- Hole Size: 51 mm (2")
- Usable Shaft Length: 57 mm (2.25")
- Display Connector: FISO
