ScanPod SPR-1i-AM Arm Pod for 1 x standard size instrument

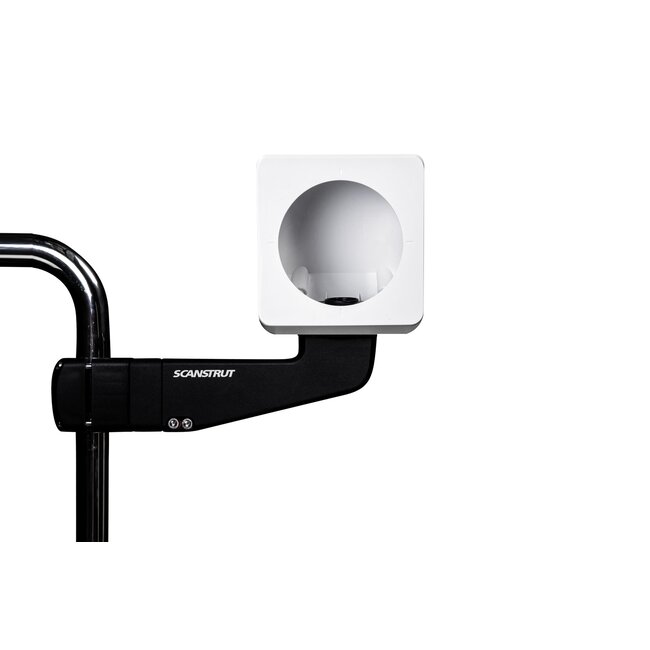

The SPR-1i-AM ArmPod offers a sleek and reliable solution for mounting a single navigation instrument directly onto any standard or curved rail. Designed for both aesthetics and performance, it keeps your helm area clean, organised, and fully functional.
Featuring waterproof internal cable routing, the ArmPod allows you to run cables seamlessly through the bottom of the pod, through the precision machined aluminium clamp, and directly into the rail, ensuring a tidy installation and lasting protection from the elements.
Built to withstand harsh marine conditions, the SPR-1i-AM delivers a secure, professional-grade mount that blends effortlessly into any helm layout.
The product ScanPod SPR-1i-AM is designed for 1 x standard size instrument applications, providing optimal performance and reliability.
FEATURES
Designed for Standard Instruments
Built to accommodate one standard-sized marine instrument, such as the ST60, ensuring a precise and professional fit.
Universal Rail Compatibility
Fits pedestal rails with diameters ranging from 25mm to 33.7mm (0.98″ to 1.33″), offering flexible installation across a wide range of setups.
Secure and Watertight Mounting
The arm mount provides a stable and reliable connection to the pedestal, while also ensuring a watertight seal at the cable entry point.
Easy Installation and Servicing
Fixings are designed to mount from back to front, cutting threads into specially engineered ABS inserts. This allows for quick installation and safe, repeatable servicing when needed.
Enhanced Weather Protection
The pod seal is made from high tear-strength silicone with excellent resistance to heat and UV exposure. It’s built to endure harsh marine conditions without degrading over time.
Pre-Cut for Convenience
The A-1i-AM Scanpod comes pre-cut, saving time and effort during setup and ensuring a clean, ready-to-install solution.
SPECIFICATIONS
General Specifications
Size Guide
Dimensions
-
Width: 120 mm (4.7”)
-
Height: 120 mm (4.7”)
COMPATIBLE DEVICES
| B&G |
Nexus |
Garmin |
| 10 / 10 HV |
NX, NX2 Digital, NX2 Analogue |
GHC 20 |
| |
|
GMI 10 |
| Furuno |
Northstar |
GMI™ 20 |
| FI-50 STD Instruments |
Explorer 310 Instruments |
GNX™ |
| NAVpilot-300 |
Explorer AP380 |
GNX™ 20 |
| NAVpilot-711C |
|
GNX™ 21 |
| |
Raymarine |
|
| Simrad |
i70, p70, p70r |
Sitex |
| AP24 |
ST290 Analogue |
SP120 |
| IS20 |
ST60+ |
|
| IS35 Digital Gauge |
ST70 |
Tacktick |
| IS70/IS80 |
T100 Series |
Maxi Display T100 Series |
