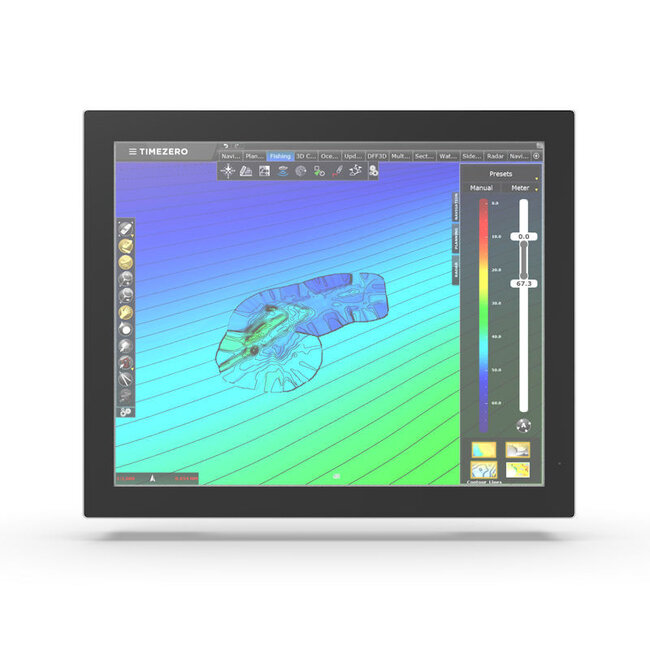

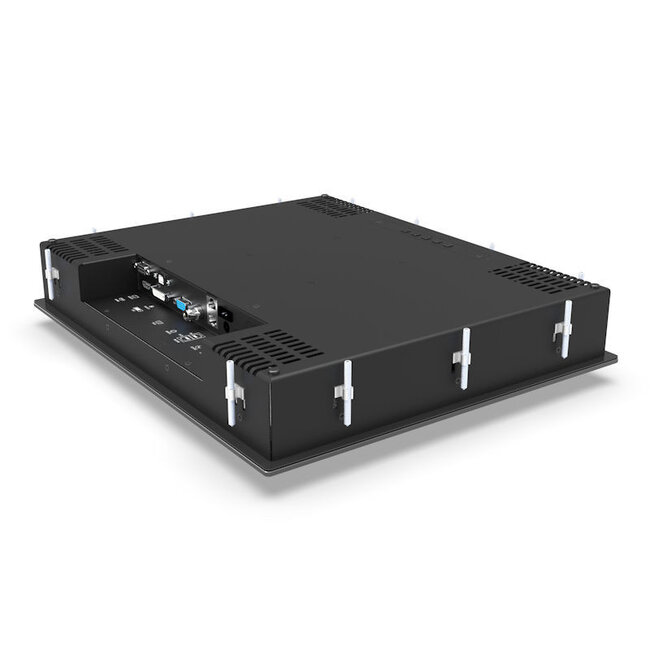

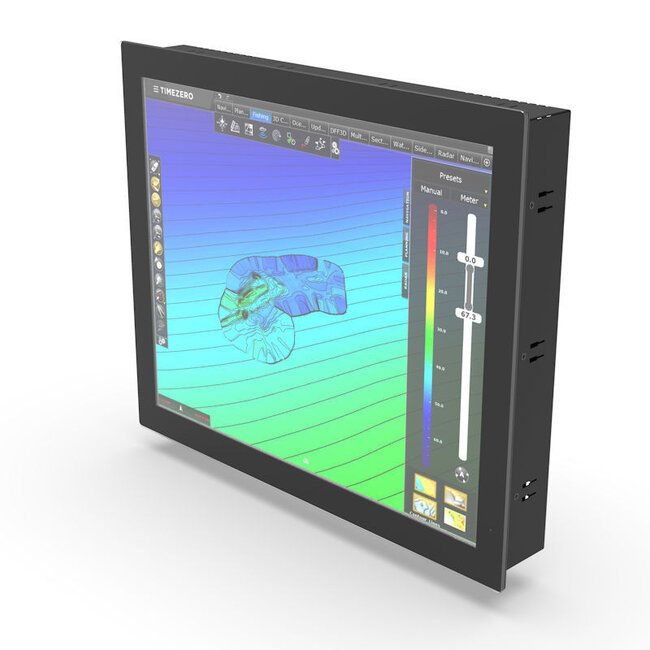

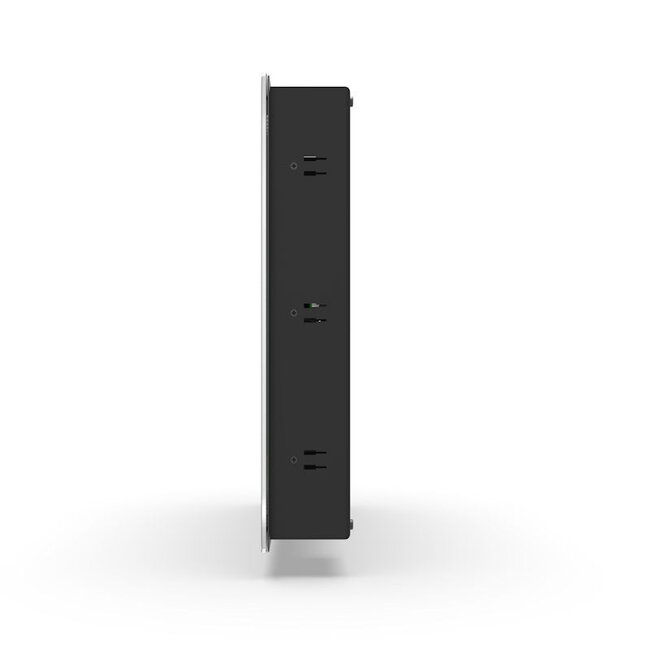

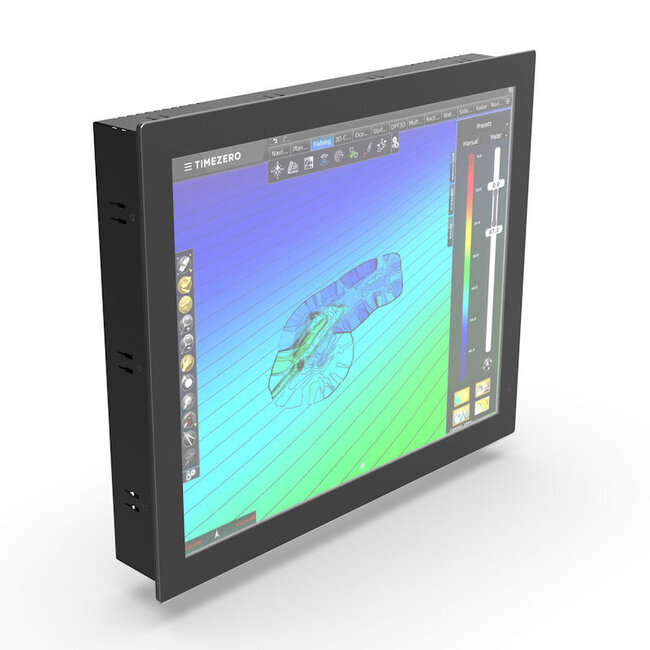

N-line N190KG 19" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N190KG is a high bright 19” full glass panel mount monitor engineered for reliable performance and exceptional visibility in harsh maritime environments. With a sleek, waterproof full glass front and durable steel body, it is made for flush console integration on yachts, workboats, and fishing vessels. As part of the versatile N-line series (available in 15” to 27”), it’s designed for a wide range of onboard tasks including navigation, monitoring, CCTV, and power management.

This high bright model delivers up to 1500 nits of brightness, ensuring optimal screen clarity even in direct sunlight or brightly lit conditions. The external dimming encoder provides intuitive control of brightness, power, and the on-screen display. The projected capacitive touchscreen supports smooth multi-touch input, while the optically bonded anti-glare glass ensures visibility without reflections or washout. Certified to DNV (IEC 60945) standards, the N190KG is ready for mission-critical maritime applications with flexible dimming setup options.

FEATURES

• High bright display (up to 1500 nits) for sunlight-readable clarity

• Sleek full glass front for waterproof flush console mounting

• Robust steel housing built for marine durability

• Projected capacitive multi-touch touchscreen

• External dimming encoder for brightness, OSD menu, and power control

• Anti-glare and optically bonded glass for maximum screen readability

• Ideal for navigation, alarms, CCTV systems, and onboard power monitoring

• Flexible dimming options: external, central, and multi-monitor setups

• Certified to DNV (IEC 60945) maritime standards

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KG

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP68 (front only)

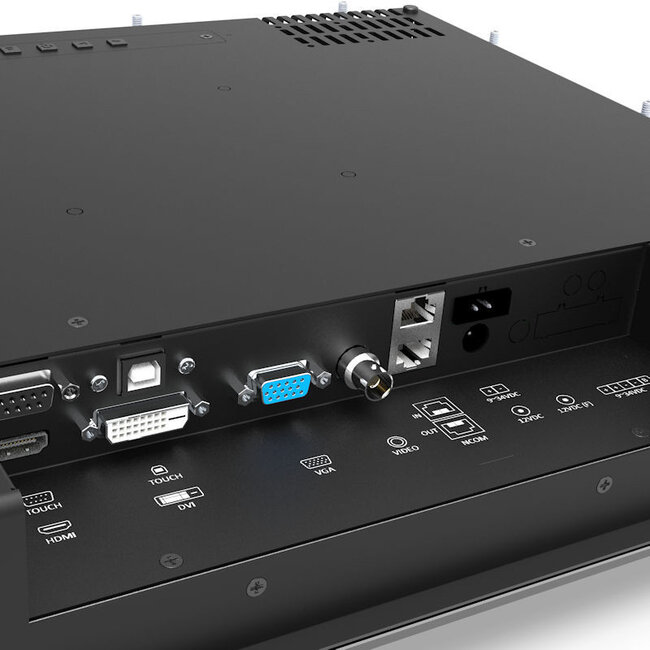

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: External encoder; supports central and multi-dimming configurations

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KG - DNV Product Sheet
• N-Line N190KG - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
