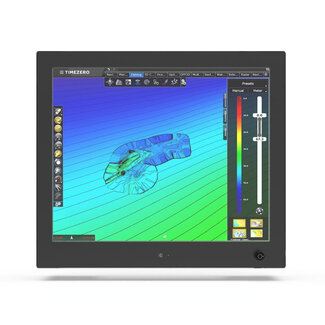

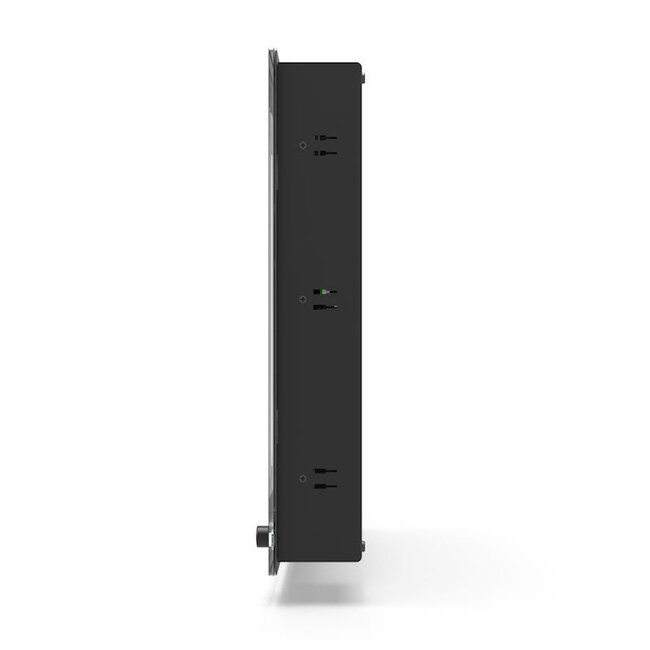

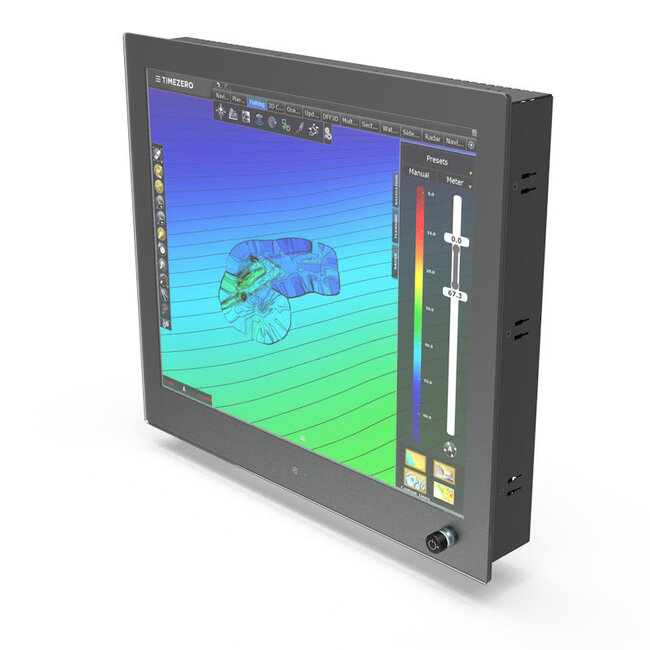

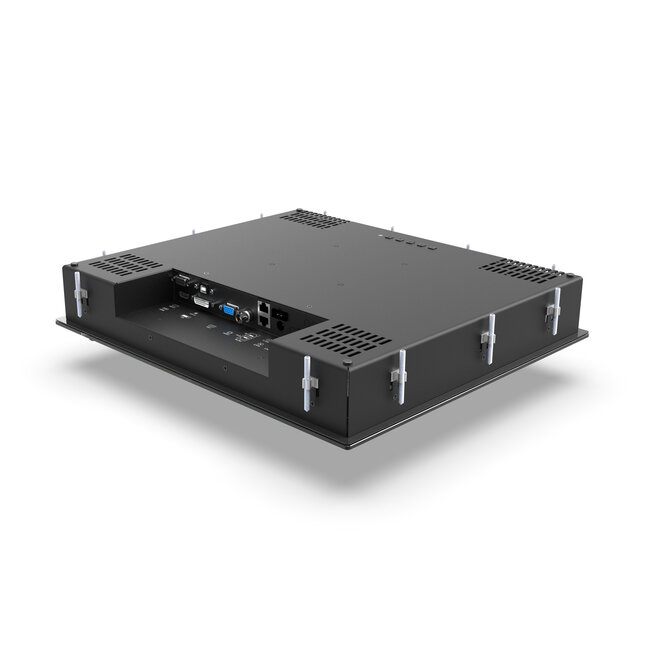

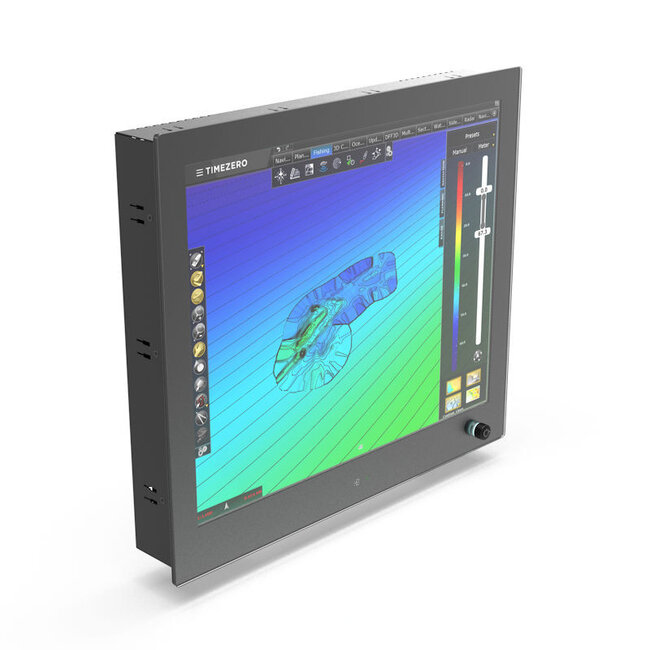

N-line N190KGE 19" pfull Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass

The Nottrot N-line N190KGE is a 19” full glass panel mount monitor built for high durability and performance in marine environments. Its robust steel body and sleek full glass front make it ideal for flush-mount installations on yachts, workboats, and fishing vessels. This model is part of the versatile N-line series (available in 15” to 27”) and is well-suited for a wide range of onboard applications such as navigation data display, alarm monitoring, CCTV systems, and power management.

The integrated front dimming encoder provides easy access to brightness control, power functions, and the OSD menu. The KGE version features a capacitive switch at the bottom of the monitor, allowing quick switching between video sources. The projected capacitive touchscreen ensures responsive multi-touch interaction, while the optically bonded anti-glare glass offers excellent readability in various lighting conditions. Built for flexibility and resilience, the N190KGE supports multiple dimming options to match any vessel’s setup.

FEATURES

• Sleek full glass front for flush marine console mounting

• Rugged steel construction for maritime durability

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness and OSD control

• Capacitive switch for video source selection (KGE model)

• Anti-glare and optically bonded glass for enhanced screen clarity

• Ideal for navigation, CCTV, power systems, and alarm monitoring

• Flexible dimming setups: front, external, central, or multi

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N190KGE

• Screen Size: 19”

• Resolution: 1280 x 1024 pixels

• Aspect Ratio: 5:4

• Brightness: 400 nits

• Optional High Brightness: 1500 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

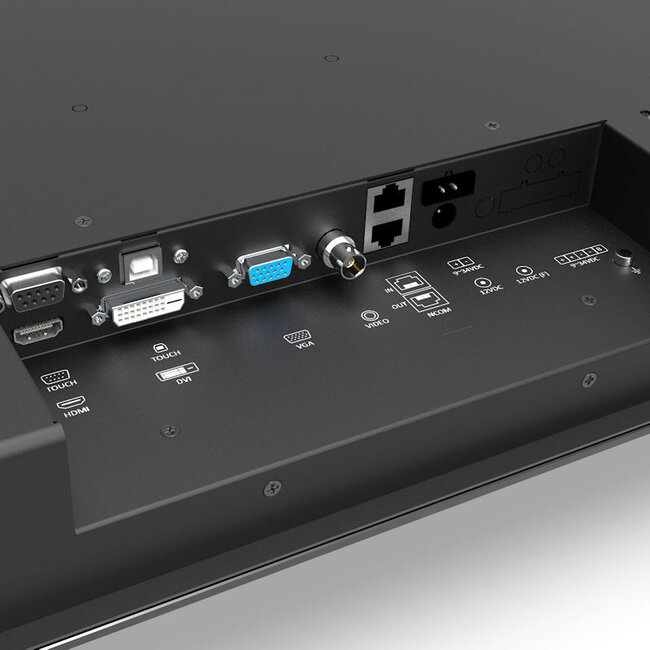

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming configurations

• Capacitive Switch: Yes, for video input selection

• Optional Accessories:

  • Mounting bracket (VESA) 100x100

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N190KGE Product Sheet
• N-Line N190KGE Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
