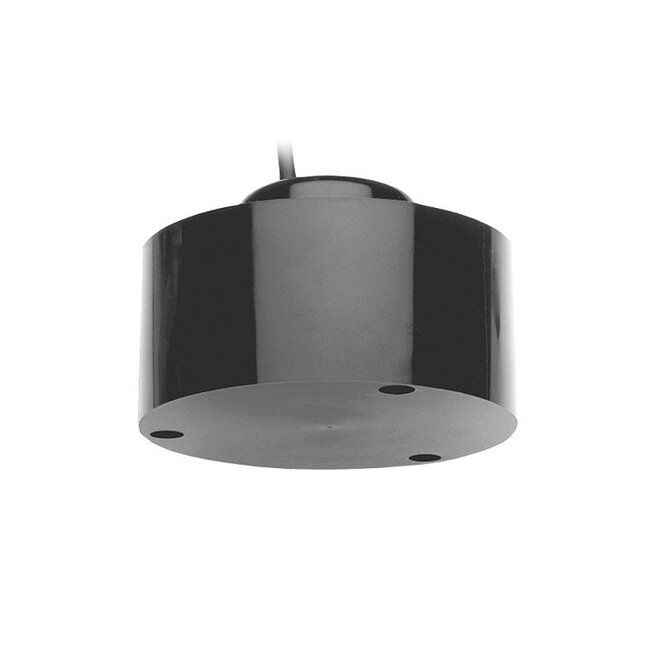

M192 33B 200H 15M C44
The patented M192 transducer features a high-performance ceramic-element array designed for precision and clarity. Its narrow beamwidth delivers exceptional sensitivity, providing outstanding bottom detail and target resolution, ideal for applications requiring accurate depth soundings in a compact form factor.
FEATURES
- Low-ringing array provide excellent target resolution
- Can be adapted for welded-tank or portable mounting
- SEALCAST™, seamless, urethane housing for long life underwater
Options
- Many frequencies available, such as:
- 15 kHz broadband
- 24 kHz
- 28 kHz
- 30 kHz
- 33 kHz
- 38 kHz
- 33 kHz amp; 200 kHz broadband
- Impedance to customer’s specifications using matching transformer
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable Type: C44-02 Transducer Cable
- Conventional Beam: 19°
- Conventional or Chirp: Conventional
- FOM (db): -13
- Frequency: 33 kHz
- Housing Type: SEALCAST™, seamless, urethane housing
- Impedance Series: 90-j0(Ω)
- Mounting Style: Welded Tank or Portable Mounting
- Q: 7
- Recommended Use: Survey
- Transducer Functions: Depth
- Display Connector: No Connector
- Power Rating: 1 kW
- Functions: Depth
- Single or Dual Frequency: Single
- Country of Origin: USA
- Cable-Length: 15 m (49')
- Weight: 8 kg (17 lb.)
