Hatteland HD 19T22 MMD-MA1FOGP marine monitor provides multi-touch control, SXGA clarity and reliable performance for advanced bridge systems. For expert advice from Sail360, see our guide at the bottom of this page. Read more.

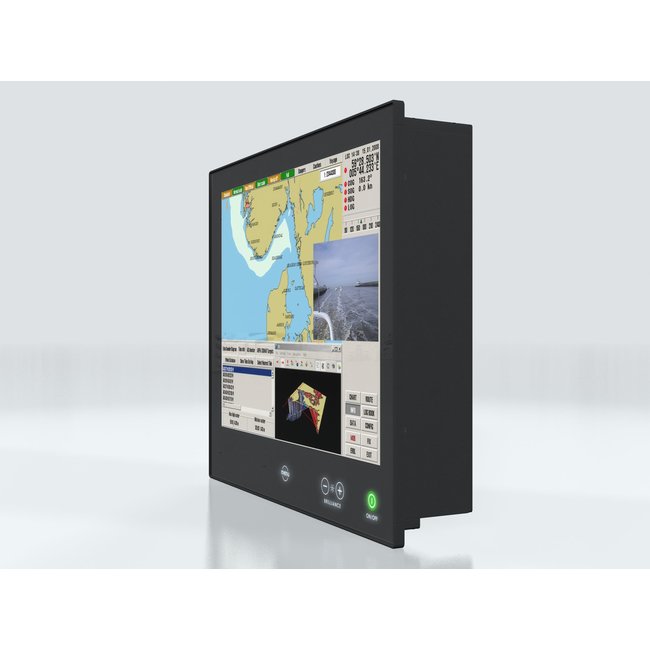

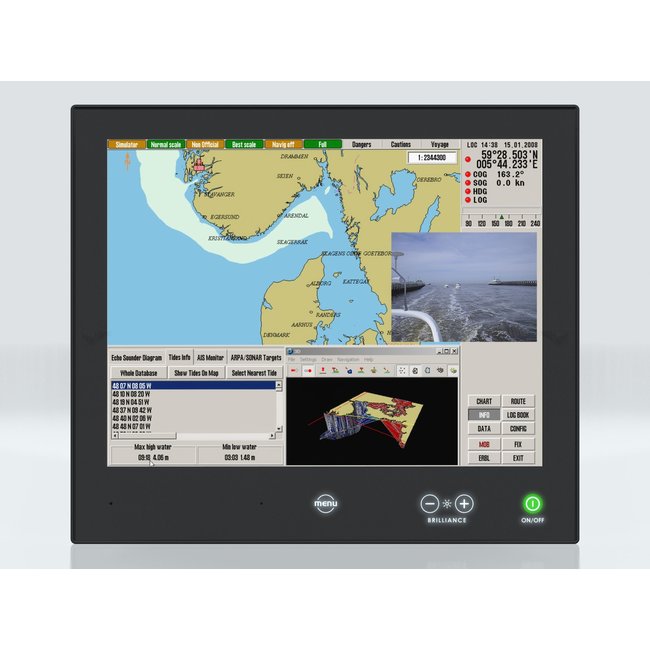

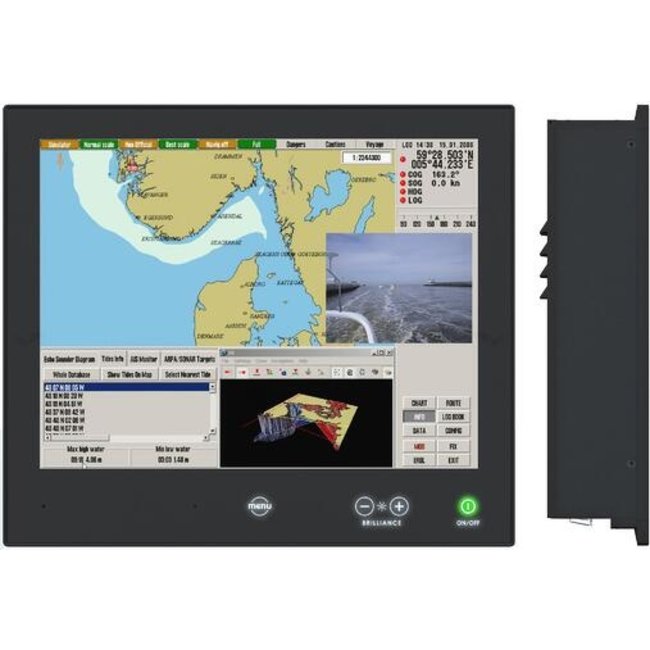

The Hatteland HD 19T22 MMD-MA1FOGP 19" LCD Multi Touch Marine Monitor is a professional 19" maritime multi display used to show and control information from connected systems such as Black Box MFDs, navigation processors, onboard computers, automation systems and camera feeds.
This model belongs to the Hatteland Series X Generation 2 range, a professional maritime display platform developed for system integrators, boat builders and demanding bridge installations where reliability, long lifetime and flexible integration are essential.
In this type of setup, the display is not a secondary accessory. It is the operator’s working screen for navigation, monitoring and control. If the monitor is difficult to read, limited in connectivity or not built for marine conditions, the whole bridge system becomes slower and less effective to use.
With its 19" SXGA display, projected capacitive multi-touch, full dimming, Glass Display Control™, AC/DC power flexibility and multi-input connectivity, this Series X G2 monitor gives professional marine installations a robust and precise display point for charts, radar output, CCTV, alarm systems, onboard computers and integrated bridge monitoring.
See how Hatteland Series X displays support professional bridge layouts with marine-grade visibility, control and system integration.
[ADD VIDEO LINK HERE]
The Series X Generation 2 range is built around a clear purpose: giving marine system builders a flexible, type-approved display platform for professional onboard environments. Instead of using a standard commercial screen, Series X G2 monitors are designed to handle the practical demands of vessel installations, including long operating hours, changing light conditions, multiple signal sources and bridge-specific control requirements.
The HD 19T22 MMD-MA1FOGP follows that same logic in a 19" format. It is not a standalone chartplotter or multifunction display. It is a Maritime Multi Display designed to show information from connected external systems such as:
For system integrators, refit projects and advanced bridge layouts, this monitor provides the key elements standard screens often lack: marine-grade protection, touch control, full dimming and multiple input types in one dedicated maritime display platform.
Before choosing this monitor, check the points that directly decide whether it will work correctly with the connected bridge system:
The strength of this monitor is its ability to serve as a reliable display point for different onboard systems without forcing the installation into one single signal type. Bridge installations often combine a Black Box processor, onboard computer, analogue camera feed, automation screen or monitoring interface, so input flexibility is a major advantage.
The HD 19T22 MMD-MA1FOGP gives the installer digital, analogue and composite video options in one professional marine monitor. For the operator, the result is a clearer and more dependable screen environment for the systems that matter most at the bridge.
This product is delivered with:
No. This product is a marine monitor, not a standalone chartplotter. It must be connected to a compatible Black Box MFD, onboard computer, navigation processor, camera source or monitoring system.
The best resolution is 1280 x 1024, which is the monitor’s native SXGA resolution and the recommended resolution for optimum picture quality.
Yes. This model includes projected capacitive multi-touch via USB. Touch control will only work when the connected system supports USB touch input.
This article number is the standard brightness version at 350 cd/m², best suited to protected bridge or indoor helm positions. For direct sunlight or flybridge use, choose the High Bright version with 1000 cd/m².

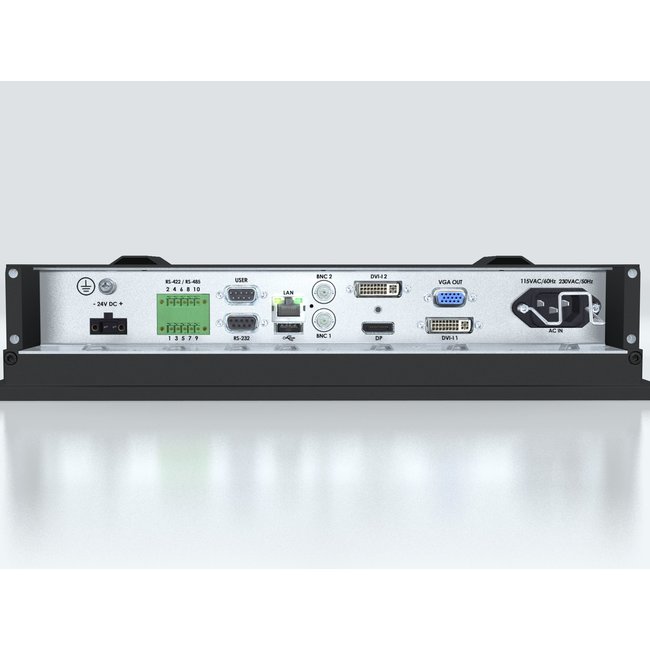

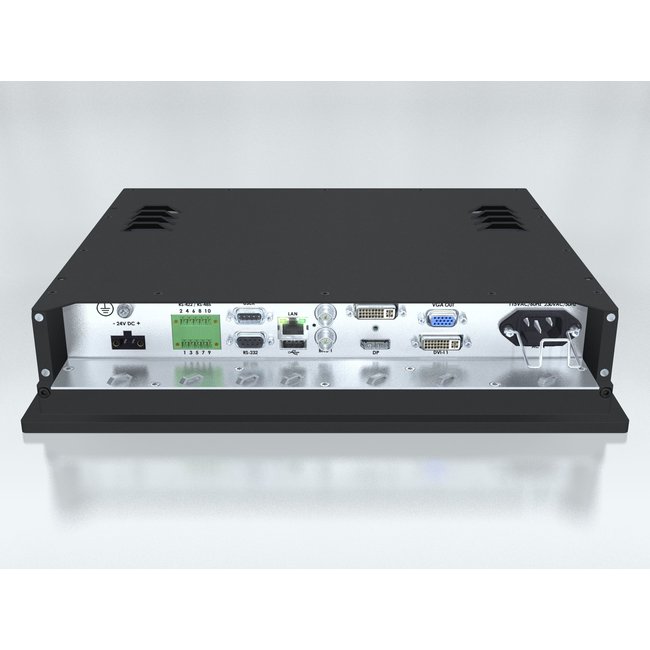

The monitor supports 2 x DVI-I inputs, 1 x DisplayPort 1.2 input and 2 x BNC composite video inputs. The DVI-I inputs can also be used for VGA with the correct adapter.
This monitor is suitable for compatible Furuno Black Box and professional bridge display environments, provided the Furuno processor output matches the monitor’s supported video inputs and USB touch support is available when touch control is required.
The Hatteland HD 19T22 MMD-MA1FOGP is a strong choice for vessels that need a dependable 19" multi-touch marine monitor for Black Box systems, navigation processors, onboard computers, camera feeds or professional bridge displays. It brings together marine-grade construction, flexible inputs, full dimming, multi-power support and Hatteland Series X G2 display technology in a format built for demanding maritime use.
At Sail360, this type of product is selected for buyers who need more than a standard screen. Our focus is to make high technology marine electronics easier to compare, with clear product information that helps boat owners, refit specialists and professional users understand what fits their system before they buy.
Whether you are upgrading a bridge display, building a Black Box setup or replacing an unsuitable monitor with a professional maritime display, Sail360 helps you choose with better technical clarity and stronger purchase confidence.
Hatteland HD 19T22 MMD Series X G2 Datasheet
