Hatteland HD 17T22 MMD-MA1FOGP marine monitor provides multi-touch control, SXGA clarity and reliable performance for advanced bridge systems. For expert advice from Sail360, see our guide at the bottom of this page. Read more.

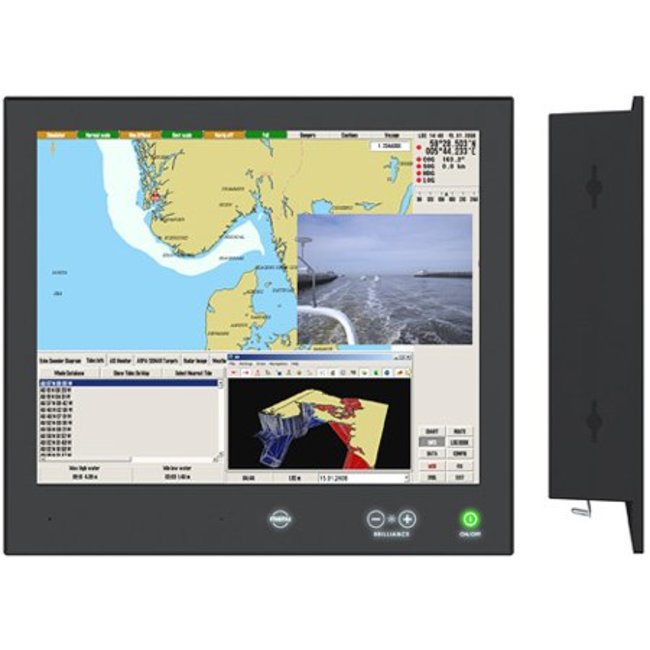

The Hatteland HD17T22MMD-MA1FOGP1A 17" LCD Multi Touch Marine Monitor is a professional 17" maritime multi display used to show and control information from connected systems such as Black Box MFDs, navigation processors, onboard computers, automation systems and camera feeds.
This model belongs to the Hatteland Series X Generation 2 range, a professional maritime display platform developed for system integrators, boat builders and demanding bridge installations where reliability, long lifetime and flexible integration are essential.
The 17" format is especially useful when the bridge needs a robust marine monitor with a smaller footprint than a 19" display, without losing the core advantages of the Series X G2 platform. It gives refits, compact bridge panels and multi-screen layouts a reliable display point for critical onboard information.
With its 17" SXGA display, projected capacitive multi-touch, full dimming, Glass Display Control™, AC/DC power flexibility and multi-input connectivity, this Series X G2 monitor is built for marine installations that need clear screen performance, dependable control and flexible signal handling.
The Series X Generation 2 range is designed to give marine system builders a flexible, type-approved display platform for professional onboard environments. Instead of relying on a standard commercial screen, Series X G2 monitors are built for vessel installations where long operating hours, changing light conditions, multiple signal sources and bridge-specific control requirements are part of daily use.
The HD17T22MMD-MA1FOGP1A follows that same logic in a more compact 17" format. It is not a standalone chartplotter or multifunction display. It is a Maritime Multi Display designed to show information from connected external systems such as:
For system integrators, refit projects and advanced bridge layouts, this monitor provides the key elements standard screens often lack: marine-grade protection, touch control, full dimming and multiple input types in one dedicated maritime display platform.
Before choosing this monitor, check the points that directly decide whether it will work correctly with the connected bridge system:
The main advantage of this 17" Hatteland monitor is its balance between professional display capability and controlled installation size. It is compact enough for bridge panels where space is limited, but still provides SXGA resolution, marine-grade construction and the input flexibility needed for multi-source maritime systems.
This makes it a practical option for:
The HD17T22MMD-MA1FOGP1A gives installers digital, analogue and composite video options in one professional marine monitor. For the operator, the result is a clearer and more dependable screen environment without moving to a larger display size than the installation needs.
This product is delivered with:
No. This product is a marine monitor, not a standalone chartplotter. It must be connected to a compatible Black Box MFD, onboard computer, navigation processor, camera source or monitoring system.
The best resolution is 1280 x 1024, which is the monitor’s native SXGA resolution and the recommended resolution for optimum picture quality.
Yes. This model includes projected capacitive multi-touch via USB. Touch control will only work when the connected system supports USB touch input.
This article number is the standard brightness version at 350 cd/m², best suited to protected bridge or indoor helm positions. For direct sunlight or flybridge use, choose the High Bright version with 1000 cd/m².
The monitor supports 2 x DVI-I inputs, 1 x DisplayPort 1.2 input and 2 x BNC composite video inputs. The DVI-I inputs can also be used for VGA with the correct adapter.
Choose the 17" version when the installation needs a professional Series X G2 marine monitor but has less panel space or a shorter viewing distance. Choose a 19" model when the bridge layout benefits from a larger screen area for charts, monitoring screens or split information views.
The Hatteland HD17T22MMD-MA1FOGP1A is a strong choice for vessels that need a dependable 17" multi-touch marine monitor for Black Box systems, navigation processors, onboard computers, camera feeds or professional bridge displays. It brings together marine-grade construction, flexible inputs, full dimming, multi-power support and Hatteland Series X G2 display technology in a compact format built for demanding maritime use.
At Sail360, this type of product is selected for buyers who need more than a standard screen. Our focus is to make high technology marine electronics easier to compare, with clear product information that helps boat owners, refit specialists and professional users understand what fits their system before they buy.
Whether you are upgrading a compact bridge display, building a Black Box setup or replacing an unsuitable monitor with a professional maritime display, Sail360 helps you choose with better technical clarity and stronger purchase confidence.
Hatteland HD 17T22 MMD Series X G2 Datasheet
