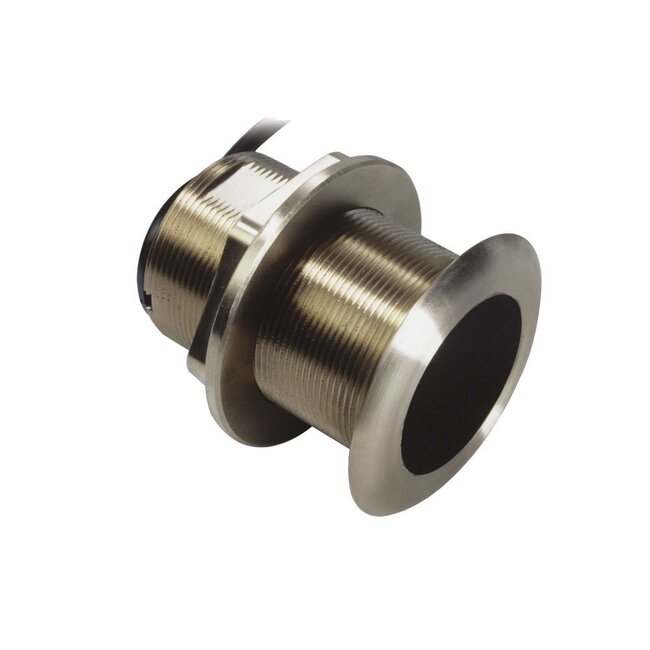

Garmin/ B60 Bronze Thru-Hull Transducer
The B60 is a 600 W, dual-frequency (50/200 kHz) transducer featuring Airmar’s innovative Tilted Element™ technology. Designed for through-hull installation, the ceramic element is fixed at either a 12° or 20° angle inside the housing to match your boat’s hull deadrise. This ensures the beam is directed straight down for optimal echo return and more accurate depth readings, all while maintaining a nearly flush profile that reduces drag.
Available models:
20° tilt for hull deadrise angles of 16° to 24°
12° tilt for hull deadrise angles of 8° to 15°
FEATURES
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Leisure/Yachting, Fishing
- Connector: Garmin 8-Pin
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Cross Reference: 010-10982-20
- Deadrise Range: 16° to 24°
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 24°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mix and Match Series: 5-Pin 600 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 20°
- Tilted Element: Yes
- Weight: 1.4 kg (3 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 60 mm (2-3/8")
- Usable Shaft Length: 68.5 mm (2.70")
- Display Connector: 8G
