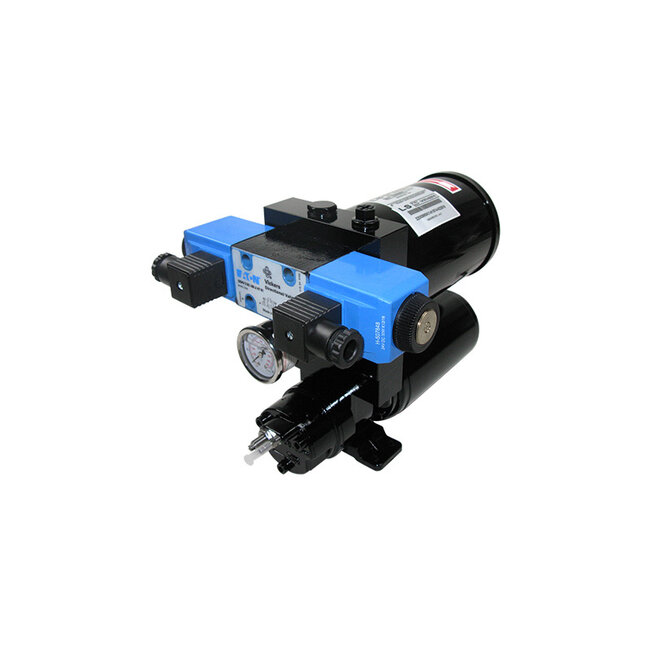

FURUNO PERMANENTLY RUNNING  HYDRAULIC PUMP EV2

Hydraulic power pack EV2 with adjustable flow available in 12V or 24V versions, designed for use in pleasure, fishing, and work boats. It is equipped with an electrodistributor and an integrated oil reservoir. Flow adjustment is done via a screw, allowing precise control of the time required for lock-to-lock steering displacement.
Caution: The pressure limiter has been factory pre-set to a maximum pressure of 30 bars. Do not attempt to modify this setting.

FEATURES

• Supply voltage: 24 Volt DC or 12 Volt DC
• Capacity to connect cylinder: 432 cubic cm
• Fluid flow setting: 0.2-2 liters per minute

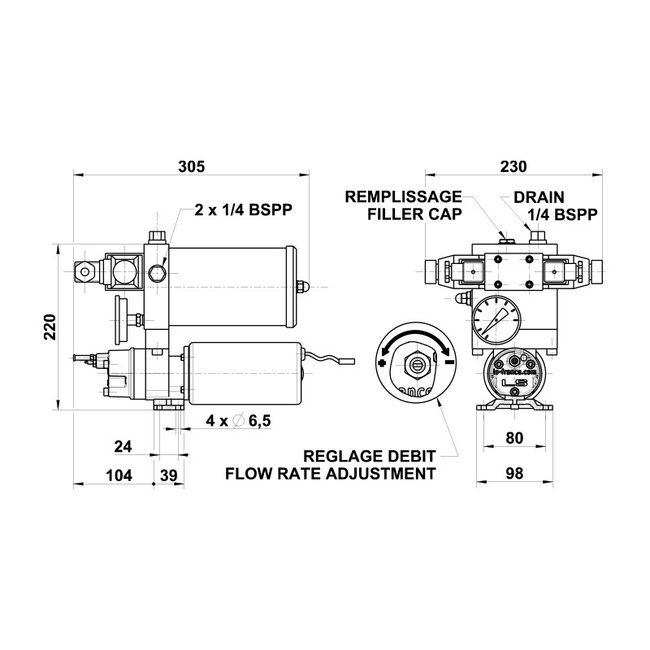

• Dimensions (L x H x W): 305 x 220 x 230 mm for HYDRAULIC PUMP EV2

SPECIFICATIONS

• Product code: 2200409
• Type of power pack: Electrovalve with adjustable flow
• Maximum cylinder capacity: 432 cc
• Recommended protection: 25A
• Volume: 1 L
• Max. pressure: 30 bar
• Flow rate: 0.2 to 2 l/min
• Weight: 9 kg

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURE

• Hydraulic pump EV2 Brochure
