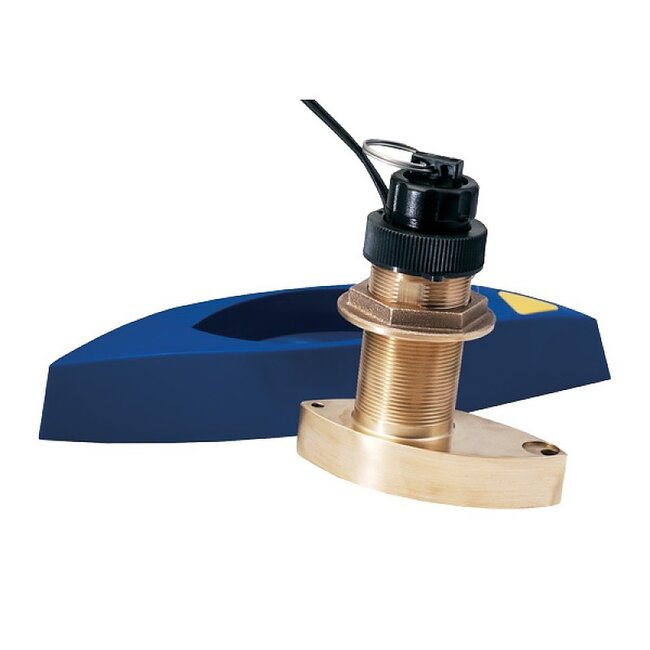

B744V Bronze 50/200 Thru Hull
The B744V is a TRIDUCER multisensor that delivers depth, speed, and temperature data from a single, through-hull housing. It features a 50/200 kHz dual-frequency ceramic element, offering excellent target detail in shallow water at 200 kHz and reliable deep-water bottom tracking at 50 kHz. This model is ideal for a wide range of hull types and is also available in a long-stem version (B744VL) for vessels with steep deadrise or thick, cored fiberglass or wooden hulls. Paired with the included high-performance fairing, the B744V maintains stable and accurate readings at speeds up to 30 knots (34 MPH), making it a versatile choice for both recreational and commercial applications.
FEATURES
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
- The extra-length housing (B744VL) allows mounting in thicker and/or high-deadrise hull
SPECIFICATIONS
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 121 mm (4.75")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
