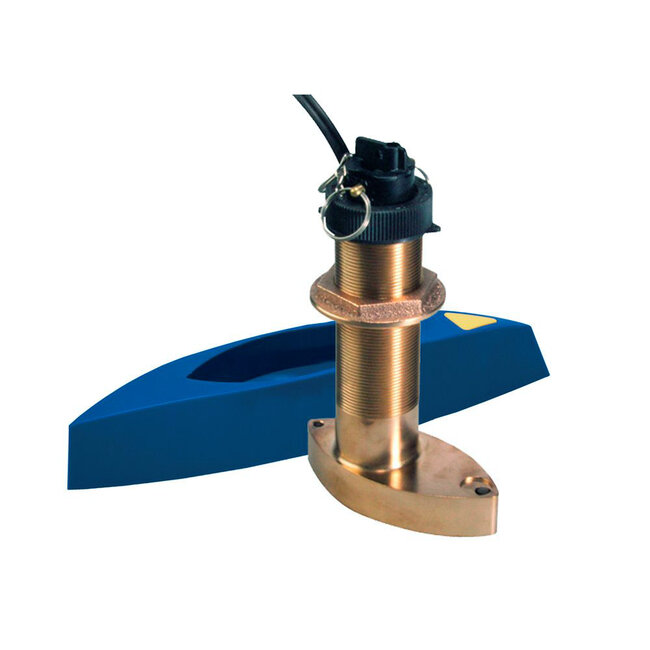

B744VL 50/200A DST Thru Hull
The B744VL is a TRIDUCER® Multisensor that combines depth, speed, and temperature measurements in one compact housing. Featuring a 50/200 kHz dual-frequency, single ceramic element, it delivers excellent target detail in shallow water at 200 kHz and reliable bottom tracking in deeper waters at 50 kHz. The B744VL includes an extended stem length, making it ideal for boats with steep deadrise hulls or thick, cored-fiberglass or wooden hulls. When paired with the required High-Performance Fairing, it provides outstanding performance even at speeds up to 30 knots (34 MPH).
FEATURES
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Extra-long stem for thick or steep-deadrise hull
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
- Also available with a shorter stem (B744V)
SPECIFICATIONS
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 140 mm (5.50")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency – 366 m (1200'), High frequency – 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable Housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
