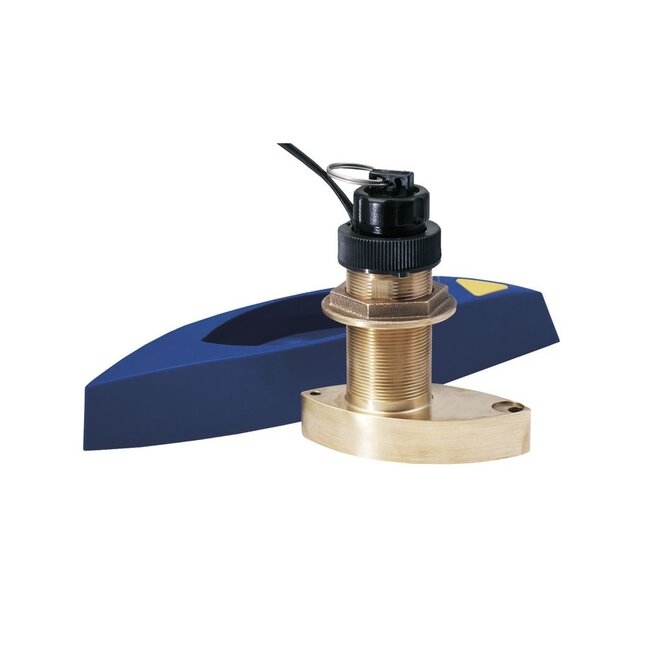

B744V 50/200A Thru Hull DST
The B744V is a TRIDUCER® Multisensor that combines depth, speed, and temperature functions in a single thru-hull housing. It features a 50/200 kHz dual-frequency ceramic element that delivers sharp target detail in shallow water at 200 kHz and reliable bottom tracking in deeper waters at 50 kHz. A longer-stem version, the B744VL, is available for vessels with steep deadrise angles or thick, cored-fiberglass or wooden hulls. When installed with the required High-Performance Fairing, the B744V performs exceptionally well at speeds up to 30 knots (34 MPH).
FEATURES
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
- The extra-length housing (B744VL) allows mounting in thicker and/or high-deadrise hull
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Leisure/Yachting, Fishing
- Connector: Furuno 10-Pin
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Cross Reference: 525STID-MSD
- Deadrise Range: Up to 25° with fairing
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 121 mm (4.75")
- Display Connector: 10F
