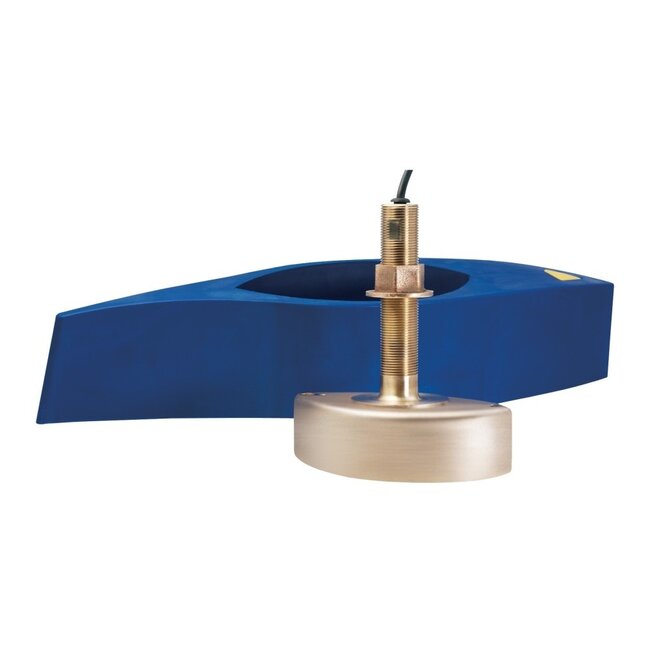

B260 1KW Bronze Thru-Hull Transducer
Airmar’s 1 kW "260 family" transducers are renowned for their unmatched performance and reliability. This powerhouse combines high output and exceptional sensitivity, making it the go-to choice for anglers using conventional fishfinders. Operating at 50 and 200 kHz, the B260 features a narrow 6° beam at 200 kHz for precise target resolution and clear imaging of fish close to structure such as wrecks and reefs. The 50 kHz frequency excels in deep-water detection with a wide 19° beam, offering broad coverage beneath the vessel. The B260 comes in a durable bronze thru-hull housing, with a stainless steel version (SS260) available for metal hulls. When installed with the included high-performance fairing, this transducer delivers consistent performance, even at speeds up to 30 knots (34 MPH).
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a 19° beamwidth for depth performance to 762 m (2500')
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1000')
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
- Bronze housing with High-performance Fairing for optimal performance at speed
- Also available in transom (TM260), in-hull (M260), and stainless steel thru-hull (SS260) mounts
- Patented Xducer ID® technology
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5')
- Common Use: Fishing, Commercial Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 19°/6°
- Country of Origin: USA
- Deadrise Range: Up to 28° with fairing
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 20° with fairing
- Max Depth: Low frequency- 735 m (2500'), High frequency- 294 m (1000')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Thru-Hull with Fairing
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 7.3 kg (16 lb.)
- Power Rating: 1 kW
- Max Deadrise Angle: 20°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: 9 m (30') and above
- Hole Size: 30 mm (1-3/16")
- Usable Shaft Length: 121 mm (4.75")
- Display Connector: Cable Required
