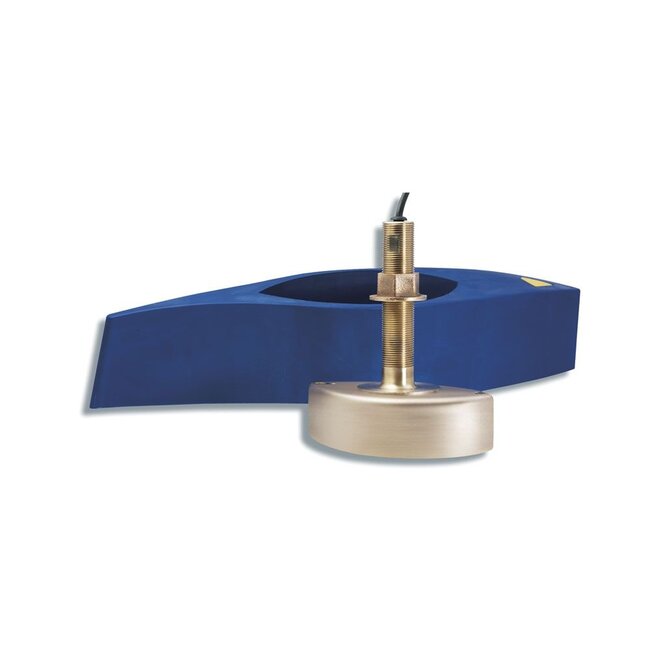

B258 DT 50/200BLQ 1KW 10M
The B258 is a cost-effective, 1 kW, dual-frequency transducer that delivers solid performance for serious anglers. Its innovative four-ceramic-element design produces an elliptical beam, offering broader coverage and enhanced target resolution across both 50 and 200 kHz frequencies. This makes it highly versatile for both shallow and deep-water fishing. When installed with the included High-performance Fairing, the B258 maintains accurate readings and reliable performance at speeds up to 30 knots (34 MPH), making it an excellent choice for high-speed vessels.
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements producing elliptical patterns for wider coverage
- 50 kHz with a 15° x 21° beamwidth for depth performance to 647 m (2200')
- 200 kHz with a 3° x 5° beamwidth for depth performance to 294 m (1000')
- Bronze-housing with High-performance Fairing for optimal performance at speed
- Greater surface area resulting in better sensitivity
- Patented Xducer ID® technology
SPECIFICATIONS
- Acoustic Window: Epoxy/urethane
- Cable-Length: 10 m (33')
- Common Use: Leisure/Yachting, Fishing
- Connector: Furuno 10-Pin
- Conventional Beam: 15°x21°/3°x5°
- Country of Origin: USA
- Cross Reference: 525TID-BHD
- Deadrise Range: Up to 28° with fairing
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 26° with fairing
- Max Depth: Low frequency- 647 m (2200'), High frequency- 294 m (1000')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Thru-Hull with Fairing
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 3.6 kg (7.9 lb.)
- Power Rating: 1 kW
- Max Deadrise Angle: 26°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: 9 m (30') and above
- Hole Size: 30 mm (1-3/16")
- Usable Shaft Length: 121 mm (4.75")
- Display Connector: 10F
