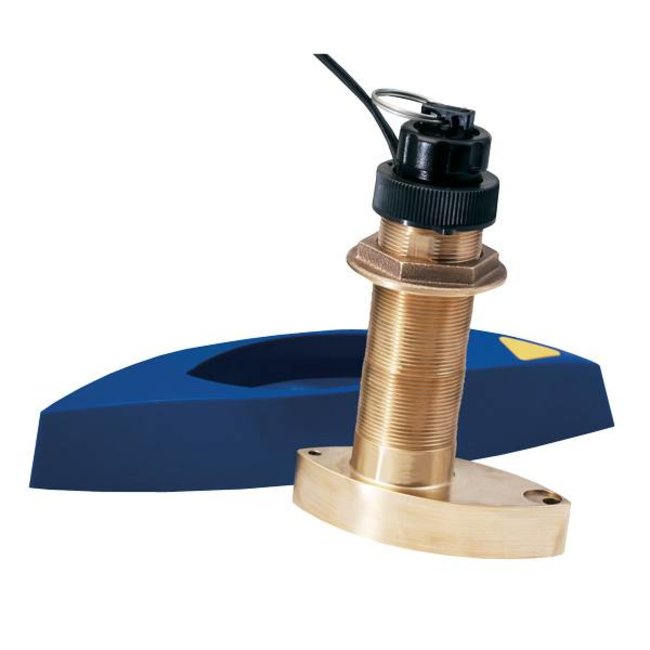

Bronze Triducer B744VL 50/200kHz
The B744VL is a powerful TRIDUCER® multisensor that combines depth, speed, and temperature readings in a single, efficient unit, requiring just one hole in your hull. Featuring a dual-frequency (50/200 kHz) ceramic element, it delivers sharp target detail in shallow water at 200 kHz and reliable bottom tracking in deeper waters at 50 kHz.
Designed with an extended stem-length, the B744VL is ideal for vessels with steep-deadrise angles or thick, cored-fiberglass and wood hulls. Paired with the included high-performance fairing, it ensures accurate readings at speeds up to 30 knots (34 MPH).
FEATURES
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Extra-long stem for thick or steep-deadrise hull
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
- Also available with a shorter stem (B744V)
SPECIFICATIONS
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 140 mm (5.50")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
