Advanced trim control system for boats up to 30 m. Dual-servo 400 mm interceptors deliver fast, automatic pitch and roll correction, reducing drag and fuel use while improving comfort, stability, and handling on flat-transom and planing hulls. Read more.
The Zipwake Series 400E Straight Kit Box Trim System is an advanced dynamic trim control solution designed for planing and semi-planing vessels up to 30 meters (100 feet). As part of the Zipwake Series E, it represents a major upgrade from the original Series S, offering more powerful dual-servo actuators, longer blade stroke (60 mm), and faster response (40 mm/s) for unmatched lift, efficiency, and reliability in demanding marine environments.
The Straight 400E configuration is optimized for flat transoms, providing accurate and balanced pitch and roll control. It is particularly suitable for larger leisure boats, light commercial vessels, and patrol craft that require consistent performance and heavy-duty operation. The system automatically compensates for roll and pitch motions, reducing fuel consumption and increasing onboard comfort.

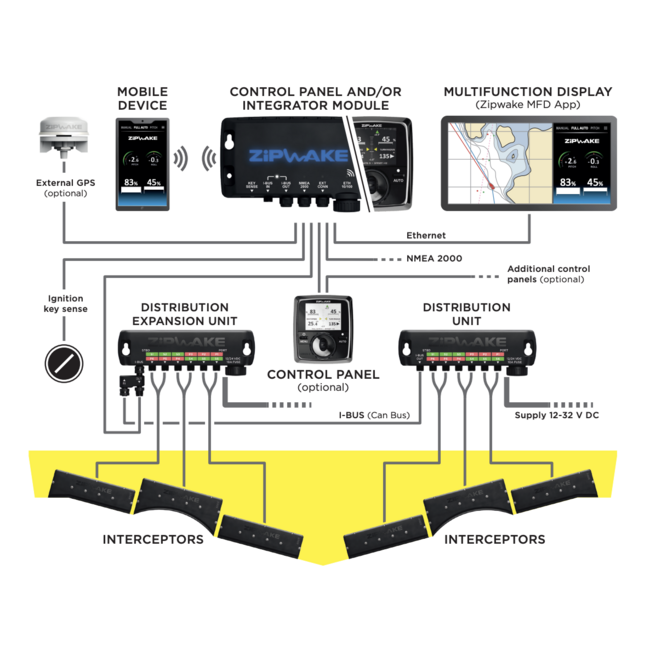

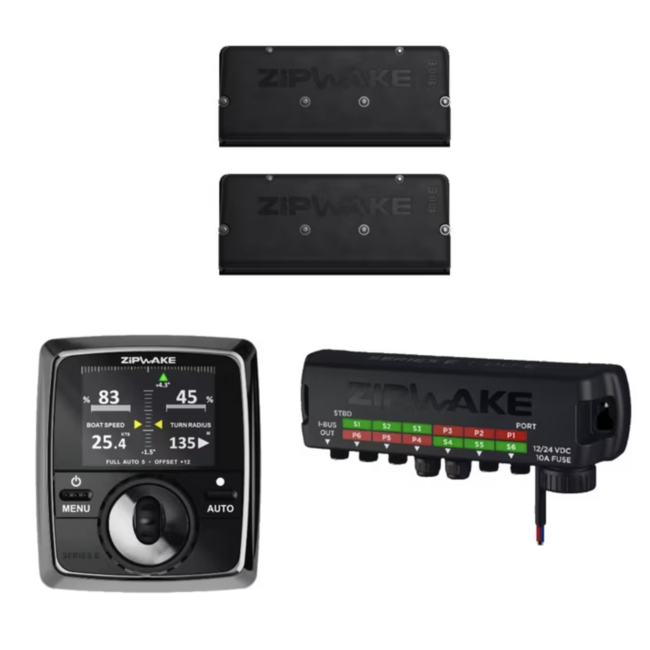

Every Zipwake Kit Box includes all the components and software needed for installation: a pair of fast-acting interceptors, a Distribution Unit (DU-E), a Control Panel (CP-E), and the required cables and mounting materials. The system can be seamlessly expanded with additional interceptors and connected to NMEA 2000 networks for data integration and monitoring.
Flat-transom optimization: Straight 400 mm interceptors deliver precise, linear trim and roll correction for flat transoms and standard hull geometries.
High-performance actuation: Dual-servo motors enable 60 mm stroke and 40 mm/s actuation speed, ensuring immediate and smooth trim response.
Automatic dynamic stabilization: Real-time compensation of pitch and roll based on integrated 3D gyro sensors and GPS data.
Fuel efficiency and comfort: Reduces hydrodynamic drag and wave resistance for smoother handling and lower fuel costs.
Professional-grade reliability: Waterproof (IP68), corrosion-resistant, and impact-protected components for long-term durability.
Integrated sensors: Includes 3D accelerometer, gyro, and GPS for continuous feedback and precision control.
Modular and expandable design: Supports up to six interceptors per distribution unit without requiring additional connectors or power supplies.
Straight Interceptors (IT400-E)
The kit includes two 400 mm straight interceptors, each equipped with dual brushless servos that provide fast and reliable actuation. Built for durability, these IP68-rated units feature self-sealing thru-hull cable fittings and watertight housings, ensuring long-term performance in harsh marine conditions.

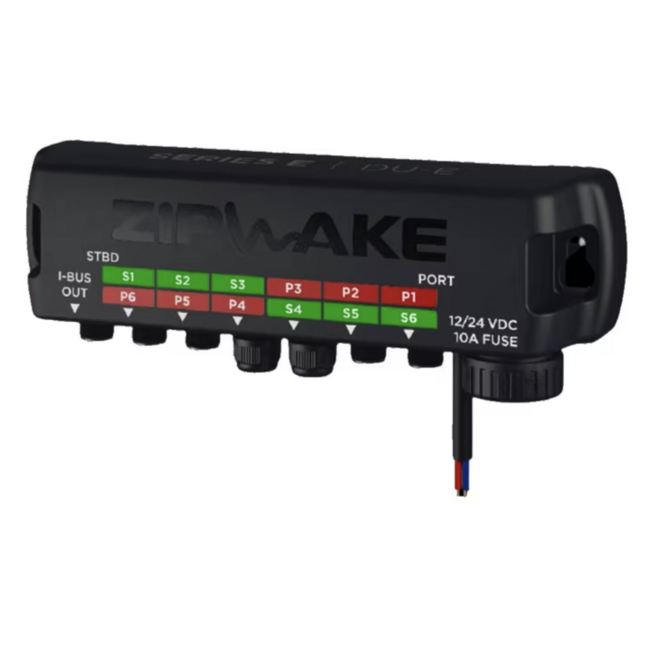

Distribution Unit (DU-E)
This unit distributes power and communication between interceptors and the control system. The DU-E is waterproof (IP67), oil-resistant, and ignition-protected, making it safe for installation in engine rooms. It includes built-in overload protection and a 4 m power cable for secure connection.

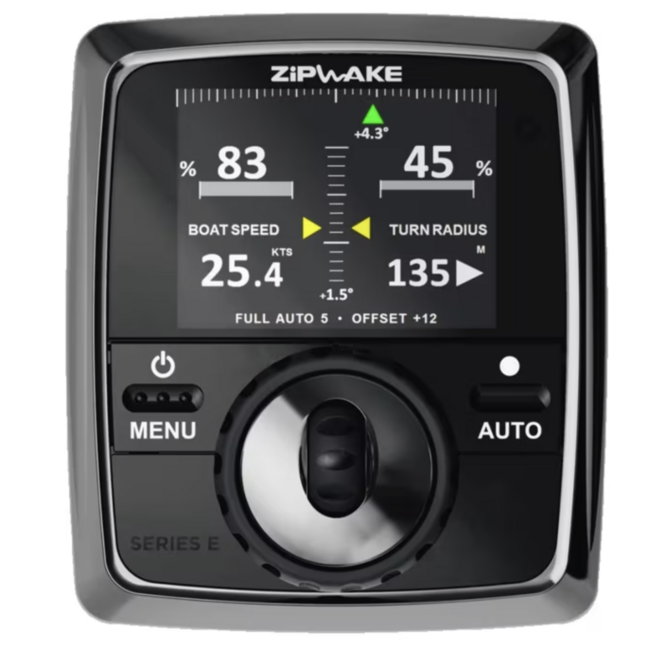

Control Panel (CP-E)
A sleek, intuitive 3D control panel with a large color display and dual rotary dials for easy manual operation. Integrated sensors allow fully automatic stabilization, and the interface provides real-time visualization of vessel trim, roll, and interceptor position.
Interceptor type: Straight
Interceptor length: 400 mm (15.7 in)
Blade stroke: 60 mm (2.4 in)
Actuation speed: 40 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 30 m (≈ 100 ft)
Voltage range: 12–32 V DC
Power consumption: 25 W max per actuator
Ingress protection: IP68 (interceptors), IP67 (distribution unit)
Servo type: Dual brushless, submersible actuators
Connector type: M12 5-pin circular
Cable: PUR 3 m (extendable to 6 m)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit box weight: ≈ 18–20 kg

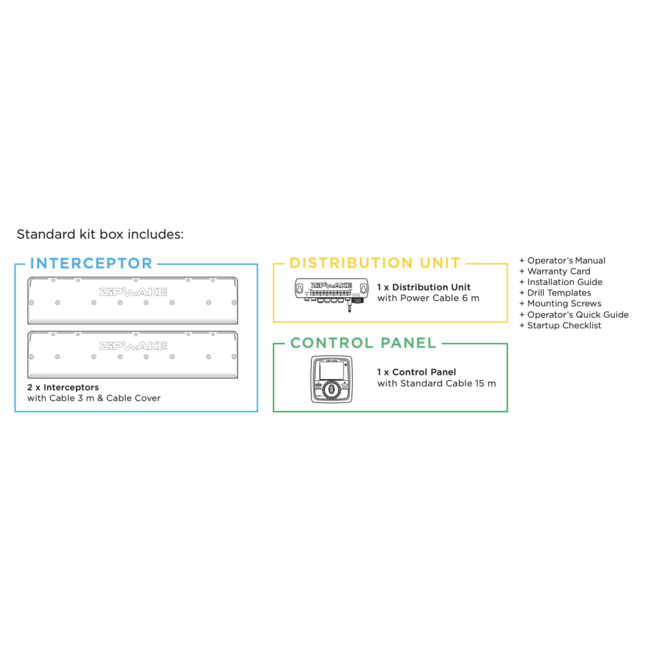

2 × Straight Interceptors (400 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-E) with 4 m power cable
1 × Control Panel (CP-E)
1 × Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card
The Straight 400E interceptors should be mounted flush on flat transom sections to maintain uninterrupted water flow and ensure even lift distribution. Use the supplied templates for alignment and drilling precision. The Distribution Unit is best installed in a dry, accessible technical space such as the engine room, while the Control Panel should be mounted within the helm console for clear visibility and ease of operation.
All cable pass-throughs below the waterline must be properly sealed using the included watertight fittings to preserve system integrity. The system’s modular design allows for future expansion (up to six interceptors per DU-E) without requiring additional connectors or power modules.
