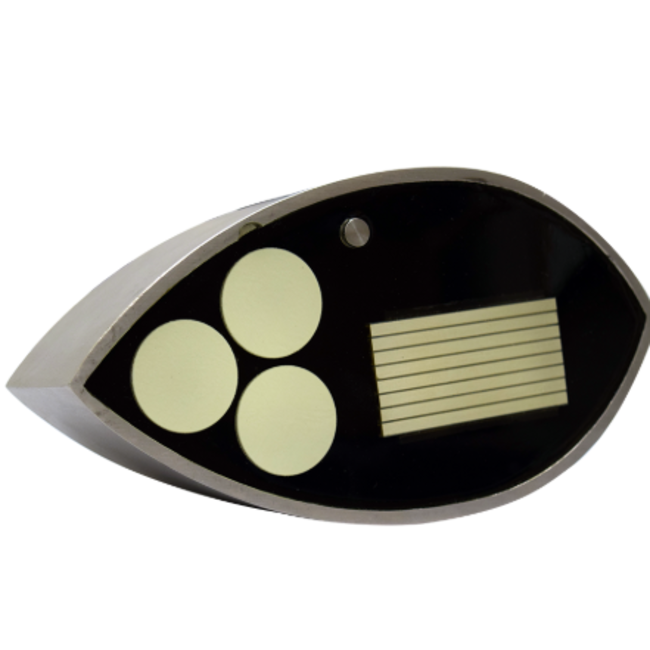

Combi Thru-Hull Transducer for DFF3D

The 165T-50/200-SS260 includes the DFF3D elements, 50/200 kHz elements, and temperature and motion sensors. It connects to the DFF3D Multi-Beam Sonar, including one echo sounder. These transducers save money and space compared to purchasing and installing two separate transducers.

Standard Features

• Stainless Thru Hull with high speed fairing block. Can be flush
  mounted in keel without using fairing block
• DFF3D Elements (165khz)
• Built-in motion sensor
• 1kW, 50/200 kHz, 20/6 ° beam angles for sounder elements. Same
  elements as an Airmar B164 transducer.
• 12M Cables with 10-Pin Connector for sounder, 7 pin connector and a
  pigtail cable for the DFF3D
• Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D
  installation
• Built in temp sensor

Mounting Style: Thru Hull
Cable Length (Foot): 40 ft
Box Dimensions: 7"H x 18"W x 25"L Weight: 25.2 lbs
