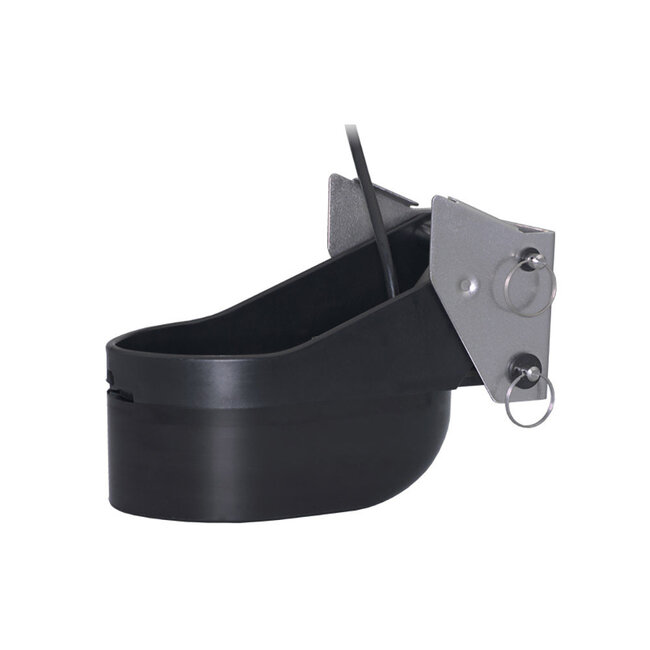

TM265LH DT XID 12M Cable
The TM265LH is a powerful, Chirp-ready transducer designed for serious anglers targeting fish at a variety of depths. Covering both high and low frequency bands, it includes optimal frequencies for detecting species like Bluefin Tuna (60 kHz), squid (133 kHz), and cod (175 kHz), along with all frequencies in between. The transducer features a seven-element low-frequency array (42–65 kHz) for excellent deep-water performance, and a high-frequency ceramic (130–210 kHz) with a narrow beam angle (10° to 6°) that delivers exceptional resolution, structure detail, and fish-target separation. Ideal for offshore and deep-sea fishing applications.
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz
- 25° to 16° port-starboard beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz
- 10° to 6° beamwidth
- Maximum depth of 304 m (1000')
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Transom mount, stainless steel bracket for installation on boats of all propulsion types
- SEALCAST™, seamless, urethane housing for long life in the water
- Also available as cavity/welded-tank (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket (PM265LH) mounts
- Patented Xducer ID® technology
SPECIFICATIONS
- Cable-Length: 12 m (40')
- Common Use: Fishing, Commercial Fishing
- Connector: Bare Wire
- Country of Origin: USA
- Display Connector: NC
- Frequency Band: Low-High
- High Frequency: 130-210 kHz
- High Frequency Beamwidth: 16°-11°
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Material: Urethane
- Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
- Mix and Match Series: 12-Pin Chirp
- Sensor Connector: MMC
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Transom Angle: 3° to 21°
- Weight: 4 kg (8.9 lb.)
- Power Rating: 1 kW
- Housing: Urethane/Stainless Bracket
- Functions: Depth, Temperature
- Hull Material: Compatible w/ all hull materials
- Max Vessel LOA: Up to 10 m (33')
- Mounting Style: Transom
