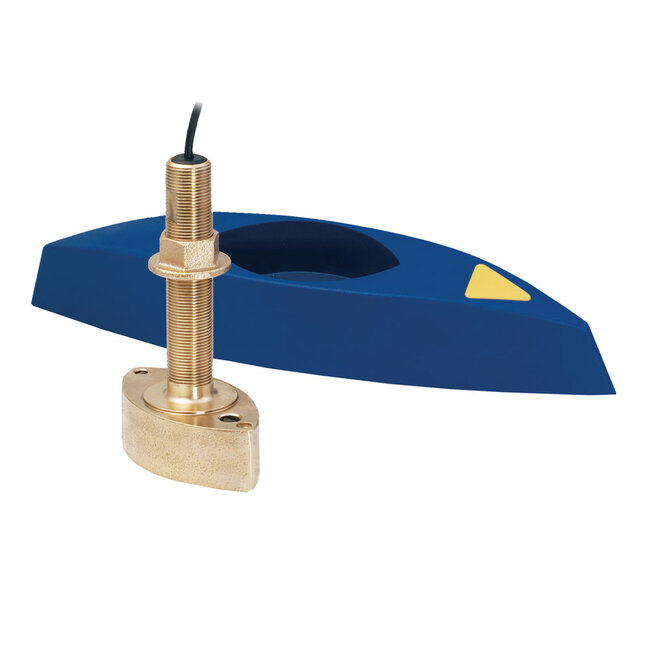

B45 50/200 Thru Hull Transducer
The B45 is Airmar’s smallest and most economical dual-frequency, bronze stem transducer. It features a single ceramic element operating at 50/200 kHz, delivering solid performance for both shallow and deep-water applications. Compact in size and easy to install, the B45 is ideal for smaller vessels. The included fairing block enhances performance by streamlining water flow around the transducer, improving bottom tracking and target resolution, even at higher speeds.
FEATURES
- Depth and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Excellent performance and sensitivity in a small housing
- Bronze housing with High-performance Fairing for optimal performance at speed
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
- Connector: Furuno 10-Pin
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Cross Reference: 525T-BSD
- Deadrise Range: Up to 28° with fairing
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 26° with fairing
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mix and Match Series: 5-Pin 600 Watt
- Mounting Style: Thru-Hull with Fairing
- Sensor Connector: MM
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 26°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 22 mm (7/8")
- Usable Shaft Length: 92 mm (3.62")
- Display Connector: 10F
