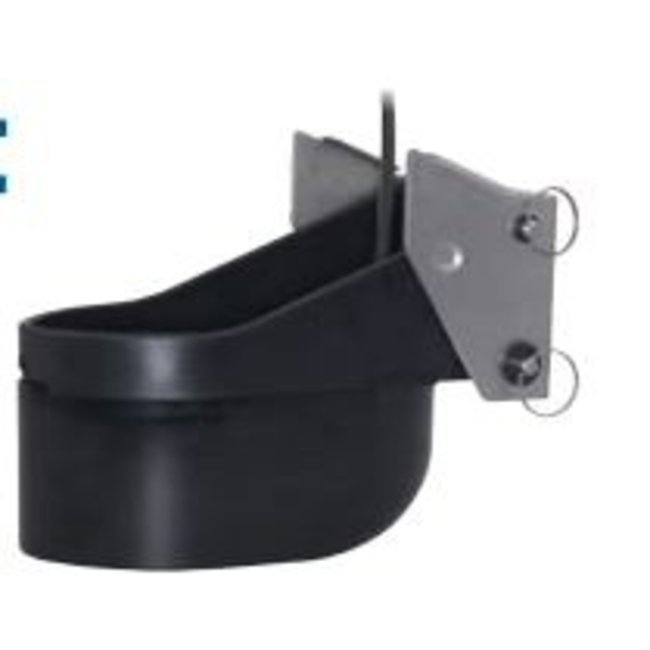

Transducer TM265LH DUAL Frequenz Urethane
The TM265LH is a high-performance CHIRP-ready transducer designed to deliver exceptional fish detection and sonar clarity across the full spectrum of high and low frequencies. It features a powerful seven-element low-frequency array operating between 42 and 65 kHz for excellent deep-water penetration, while the high-frequency ceramic covers 130 to 210 kHz with a narrow 10° to 6° beam for detailed structure and target separation. Ideal for anglers targeting specific species like bluefin tuna, squid, and cod, the TM265LH offers superior resolution, precise bottom discrimination, and reliable fish tracking across a wide range of depths.
FEATURES
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz
- 25° to 16° port-starboard beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz
- 10° to 6° beamwidth
- Maximum depth of 304 m (1000')
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Transom mount, stainless steel bracket for installation on boats of all propulsion types
- SEALCAST™, seamless, urethane housing for long life in the water
- Also available as cavity/welded-tank (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket (PM265LH) mounts
- Patented Xducer ID® technology
SPECIFICATIONS
- Power Rating: 1 kW
- Transom Angle: 3° to 21°
- Functions: Depth, Temperature
- Max Vessel LOA: Up to 10 m (33')
- Acoustic Window: Urethane
- Common Use: Fishing, Commercial Fishing
- High Frequency: 130-210 kHz
- High Frequency Beamwidth: 16°-11°
- Housing: Urethane/Stainless Bracket
- Hull Material: Compatible w/ all hull materials
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
- Mounting Style: Transom
- Retractable housing: No
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Weight: 4 kg (8.9 lb.)
