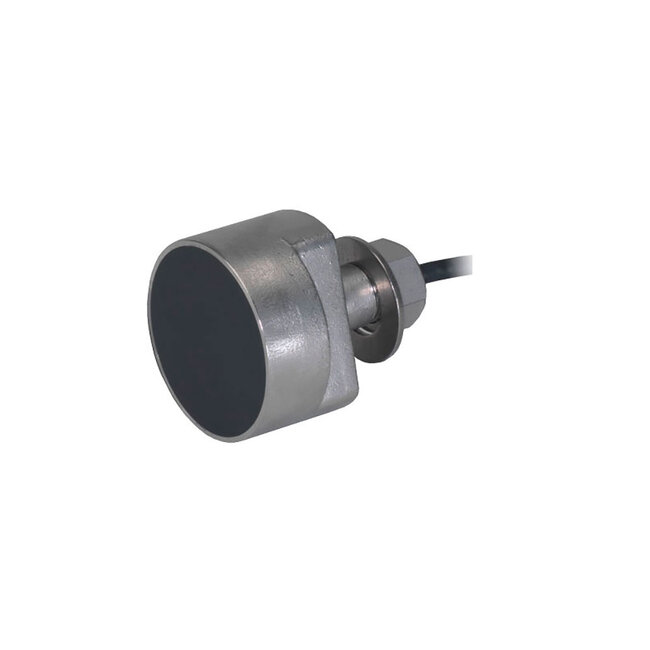

SS510 DT 200Khz Echo Range
Airmar’s Smart™ Sensors feature integrated microelectronics that process depth and temperature data directly within the sensor. This data is instantly transmitted to any compatible device that accepts NMEA output, simplifying setup and ensuring reliable performance. With EchoRange™ technology, NMEA 0183 data is delivered in real time via the RS422 standard for seamless integration with onboard computers and navigation systems.
FEATURES
- Broadband with low Q of 2
- Minimal sidelobes for concentrated energy on target providing excellent definition
- Short, threaded stem simplifies attaching to portable-mounting apparatus
- Internal transformer provides impedance match to echosounder and allows use of longer cable
- 500 W RMS, power rating is at 2% duty cycle
- Robust, stainless-steel housing
SPECIFICATIONS
- Acoustic Window: Urethane
- Applications: Bridge scour inspection systems, Portable hydrographic survey, Dredging, Autonomous Surface Drones, Hydrodrones
- Beam Angle: 9°
- Cable-Length: Various lengths offered, Maximum 20 m (65'), 7.6 m (25')
- CE Certification: Marine standard IEC60945
- Comm Method: NMEA 0183/RS422
- Connector: Bare Wire
- Current Draw: 150 mA @ 12 V for 200 kHz
- Data Output: Smart® Sensor
- Depth Accuracy: 99.46% at full range (see accuracy table for more info)
- Depth Display Resolution: 1 cm (.40")
- Echo Envelope Baud Rate: 921600
- Frequency Band: 200 kHz
- Full Auto Mode Data Output Rate: From 0.1 to 25 sec/interval
- Housing Depth Rating: Submersible to 10 m (33')
- Manual Mode: Output rate equal to ping rate
- Maximum Depth Reading: 200 m (656'), limited in manual mode
- Minimum Depth Reading: 0.4 m (15.75"), limited in manual mode
- Mounting: Pole mount capable for portable installations
- NMEA 0183 Baud Rate: 4800 (Default)
- Operating Temp Range: -5C to +60C
- Power and Data Cable: ER SS510: C304, 4 twisted pairs with TPR jacket
- Power Supply Voltage: 9 to 40 VDC, Regulated
- Reverse Polarity Protection: Yes
- Signal Type: NMEA-Smart®
- Stem Thread: 1/2"-14 NPS
- Storage Temperature Range: -30 to 70°C (-22 to 158°F)
- Temperature Resolution: 0.09C
- Temperature Sensor: 10k ohm +/-0.05C accuracy
- Functions: Depth, Temperature
- Display Connector: 0
