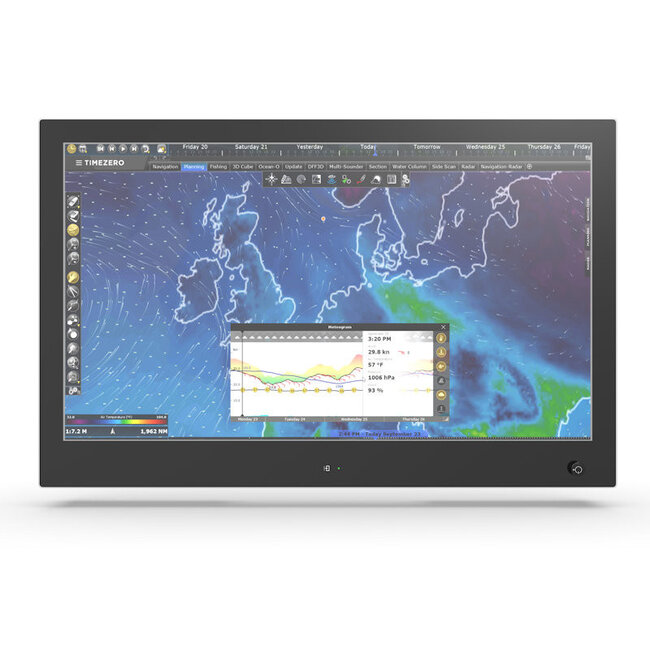

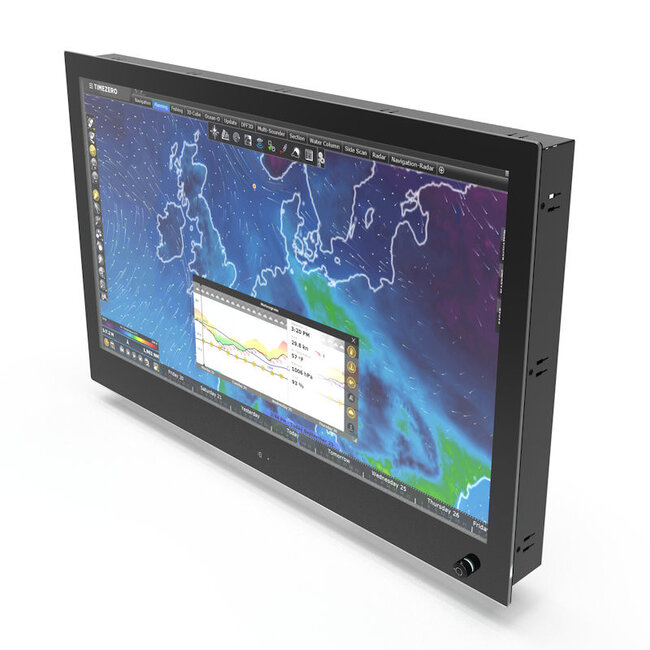

N-line N270KGE 27" Full Glass Panel Mount with High Bright, Multi Touchscreen, 9–36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N270KGE is a premium 27” full glass panel mount monitor, engineered to perform in demanding marine environments. Designed with durability and aesthetics in mind, this unit features a robust steel body and full glass front for flush console mounting—providing waterproof protection and a modern look ideal for yachts, workboats, and fishing vessels.

Equipped with a high bright display of up to 1000 nits, this model ensures excellent readability even under direct sunlight or strong ambient lighting. The front-mounted dimming encoder offers intuitive access to brightness, power, and OSD settings, while the capacitive switch at the bottom of the screen allows users to switch video inputs effortlessly.

This unit is DNV (IEC 60945) certified, making it a reliable choice for maritime navigation, surveillance, and system monitoring.

FEATURES

• DNV (IEC 60945) certified for maritime applications

• High bright display option (1000 nits) for visibility in sunlight

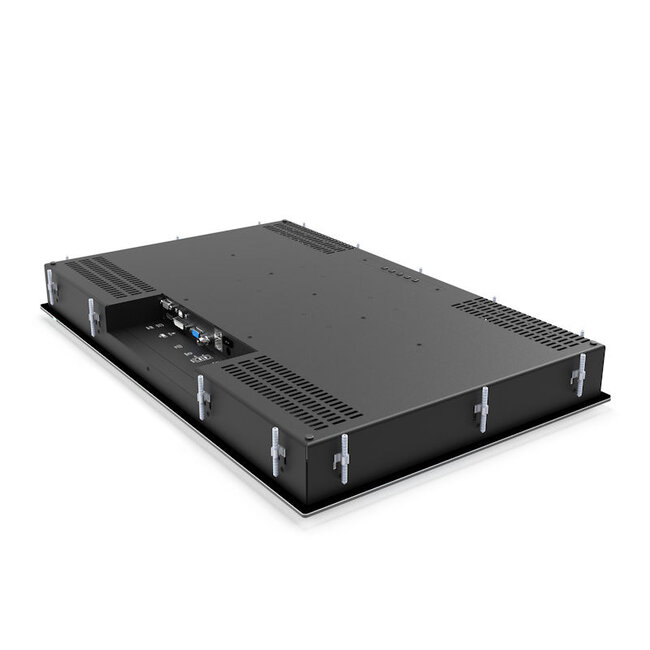

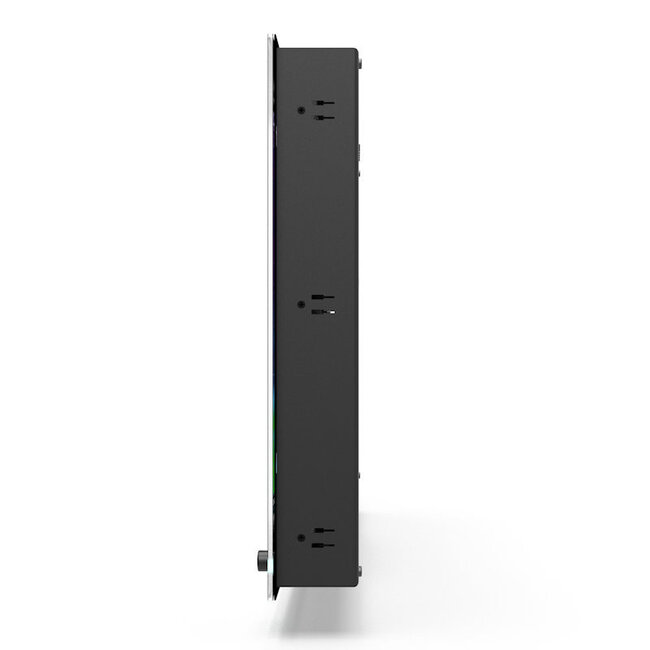

• Full glass flush-mount front with rugged steel housing

• Anti-glare and optically bonded screen for clarity and resilience

• Projected capacitive multi-touch functionality

• Front dimming encoder for OSD, brightness, and power control

• Capacitive input switch for video source selection

• Ideal for navigation, CCTV, power management, and monitoring

• Available in screen sizes from 15” to 27”

• Supports flexible dimming setups (front knob, external, or centralized)

SPECIFICATIONS

• Brand: Nottrot

• Model: N270KGE

• Screen Size: 27”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• IP Rating: IP65 (front only)

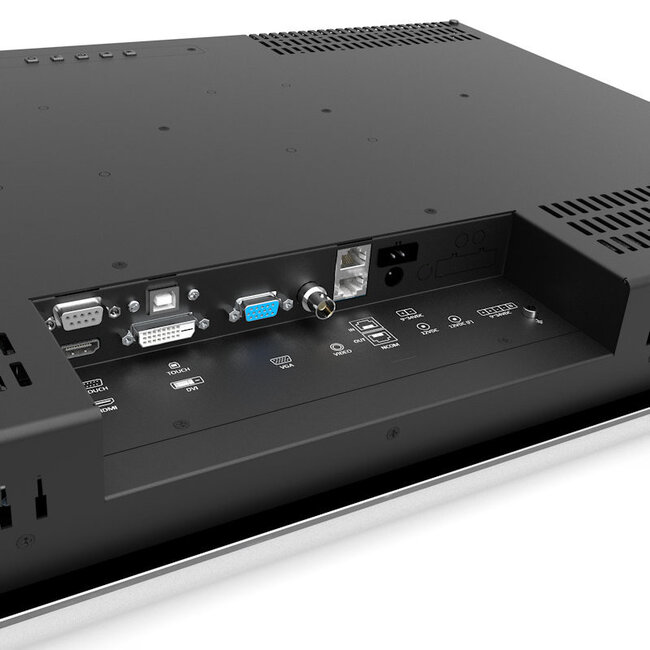

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Front encoder, optional multi-dimming support

• Capacitive Input Switch: Yes

• Optional Accessories:

  • VESA Mounting Bracket (100 x 100)

  • V-Stand for VESA-compatible setups

BROCHURES

• N-line N270KGE - DNV Product Sheet
• N-Line N270KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
