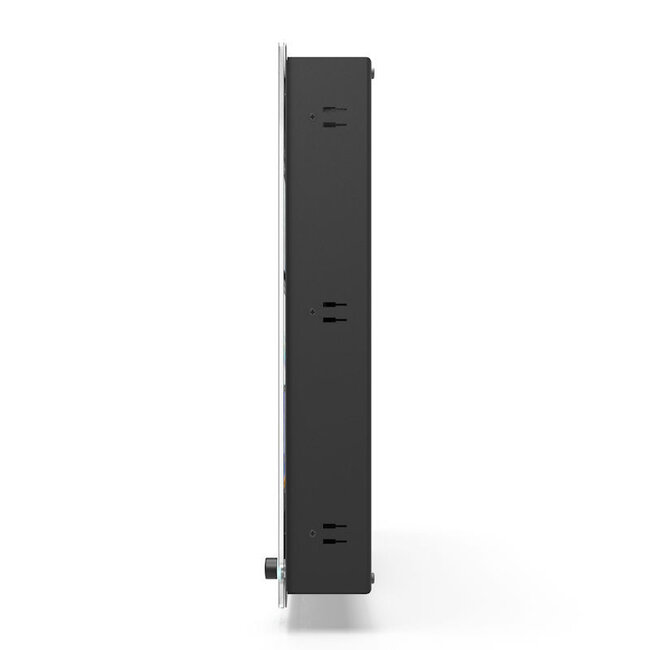

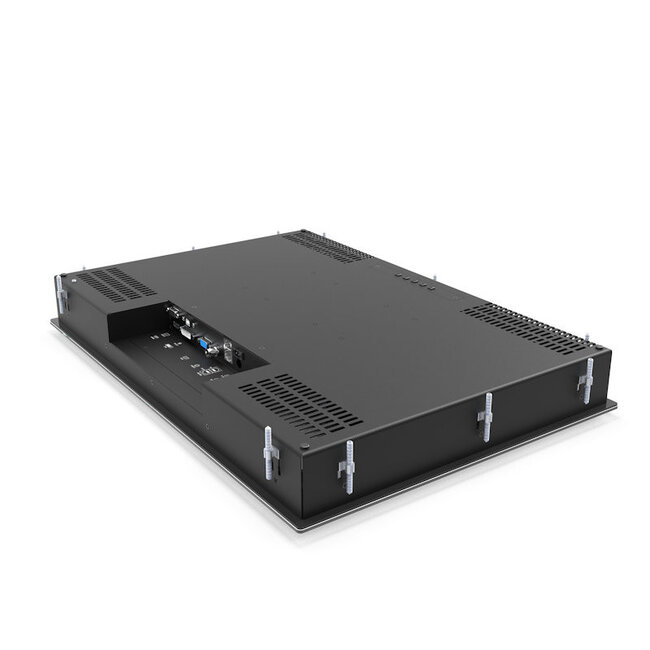

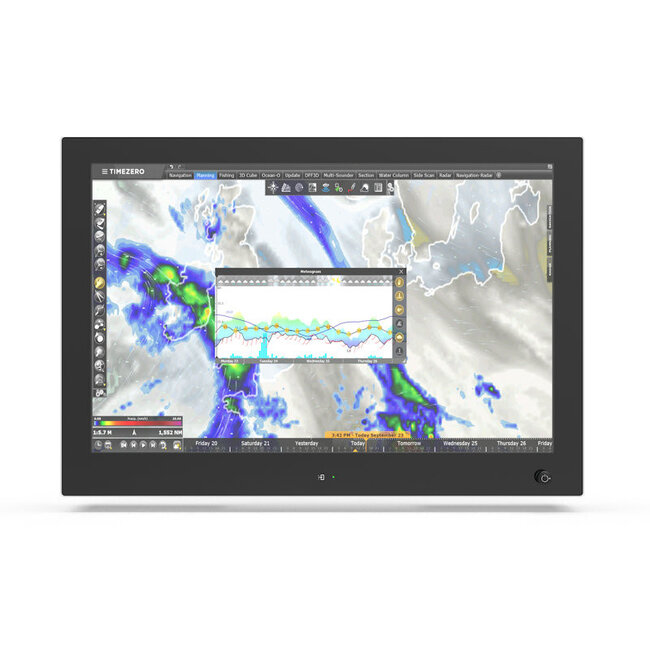

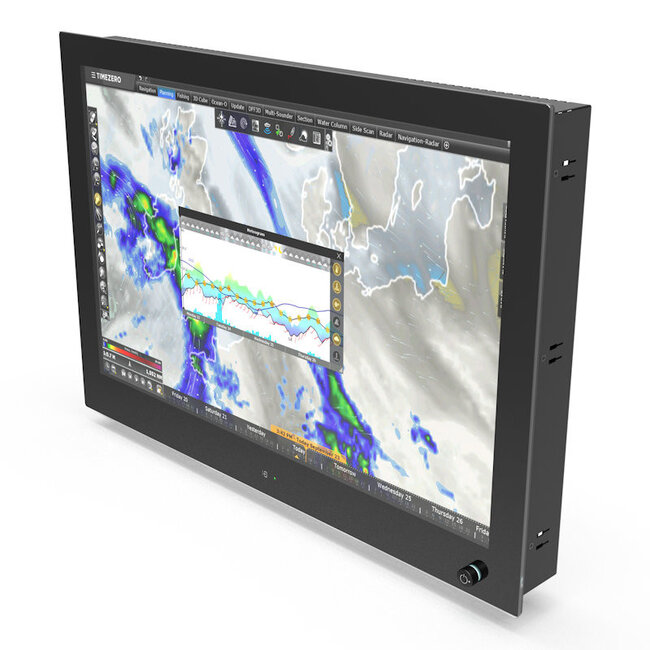

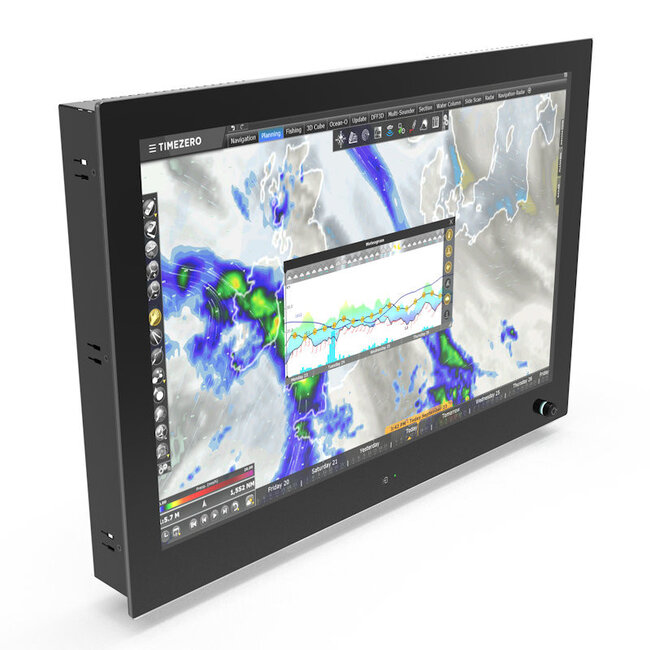

N-line N241KGE 24,1" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N241KGE is a 24,1” full glass panel mount monitor engineered for reliability, clarity, and seamless operation in demanding marine environments. Featuring a durable steel body and a waterproof full glass front, this model is built for flush console integration on yachts, workboats, and fishing vessels. Part of the N-line series (available in 15” to 27”), it’s an ideal solution for navigation, CCTV, alarm monitoring, and vessel power management.

The KGE model includes a front-mounted dimming encoder, allowing you to control brightness, power, and the on-screen display (OSD) functions directly from the panel. It also features a capacitive switch at the bottom for convenient video input selection. With a projected capacitive touchscreen and optically bonded anti-glare glass, the N241KGE ensures responsive touch functionality and crystal-clear visibility. This model is fully DNV (IEC 60945) certified, meeting rigorous maritime standards.

FEATURES

• Waterproof, full glass front for flush-mounted marine installations

• Robust steel housing for long-term durability in harsh environments

• Projected capacitive multi-touch touchscreen

• Front dimming encoder for power, brightness, and OSD menu access

• Capacitive switch for quick video source selection (KGE model)

• Optically bonded anti-glare glass for enhanced clarity and reduced reflections

• Perfect for marine navigation, CCTV, alarm systems, and control displays

• Certified to DNV (IEC 60945) standards for maritime equipment

• Flexible dimming configurations: front, external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N241KGE

• Screen Size: 24,1”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 350 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

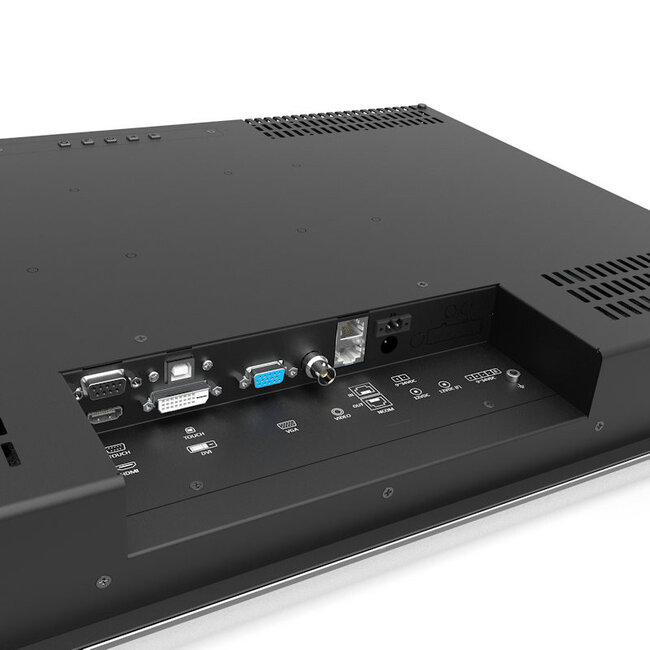

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming setups

• Capacitive Switch: Yes, for video input switching

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100 x 100 VESA bracket

BROCHURES

• N-line N241KGE - DNV Product Sheet
• N-Line N241KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
