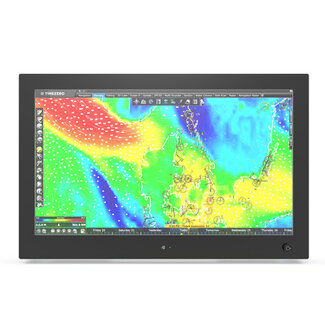

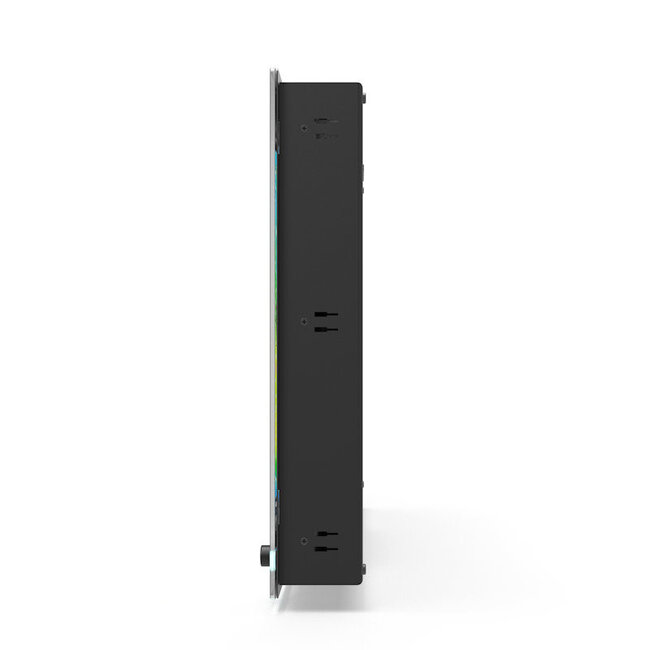

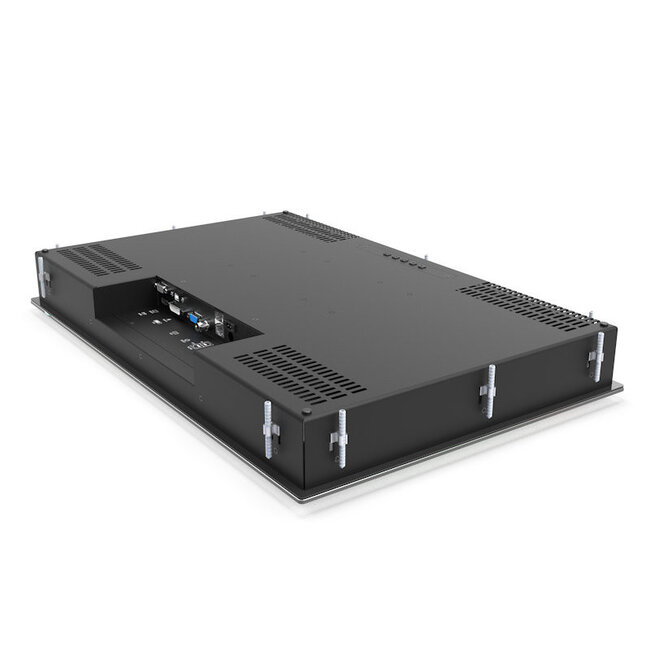

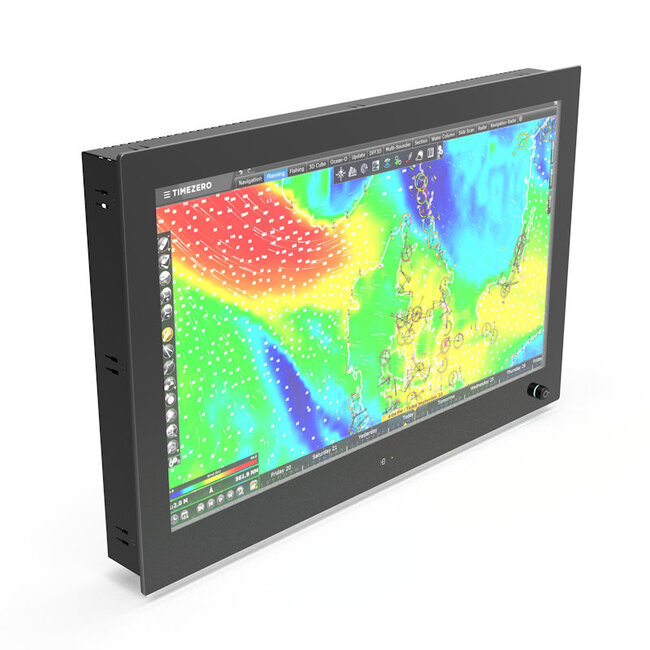

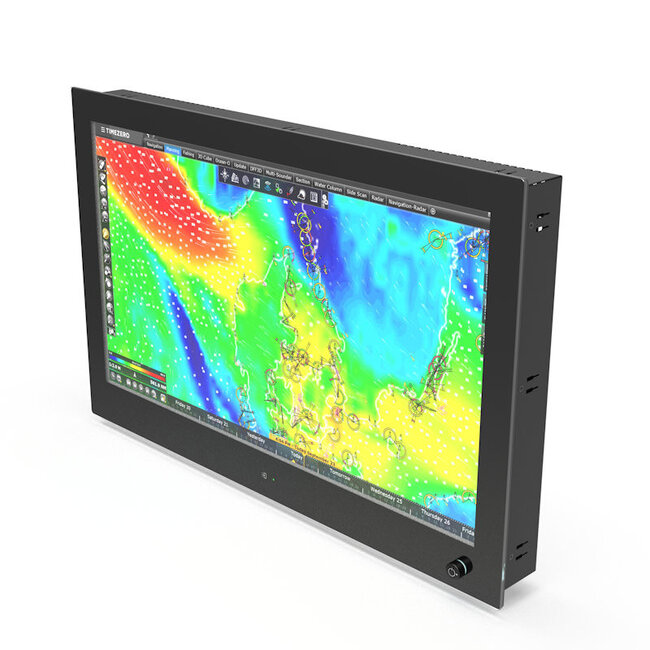

N-line N240KGE 24" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N240KGE is a 24” full glass panel mount monitor engineered for marine-grade performance, visibility, and durability. With a sleek, waterproof full glass front and rugged steel body, it is ideal for flush mounting into vessel consoles on yachts, workboats, and fishing vessels. Part of the N-line series (available in 15” to 27”), this display is a versatile solution for navigation, alarm monitoring, power management, and CCTV systems.

Equipped with a front-mounted dimming encoder, this model allows easy control of brightness, power, and OSD (on-screen display) menu functions. The KGE model also features a capacitive switch at the bottom of the display to seamlessly switch between video inputs. Designed with optically bonded anti-glare glass and a projected capacitive touchscreen, the N240KGE ensures crisp visuals and accurate multi-touch performance. It is fully certified to DNV (IEC 60945) standards, making it a reliable choice for demanding marine applications.

FEATURES

• Sleek, waterproof full glass front for flush console integration

• Durable steel housing built for long-lasting marine performance

• Projected capacitive multi-touch touchscreen

• Front dimming encoder for power, brightness, and OSD menu control

• Capacitive switch for quick video source selection (KGE model)

• Optically bonded anti-glare glass for excellent visibility

• Ideal for navigation, monitoring, power control, and CCTV systems

• Certified to DNV (IEC 60945) maritime standards

• Supports flexible dimming: front, external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N240KGE

• Screen Size: 24”

• Resolution: 1920 x 1200 pixels

• Aspect Ratio: 16:10

• Brightness: 300 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

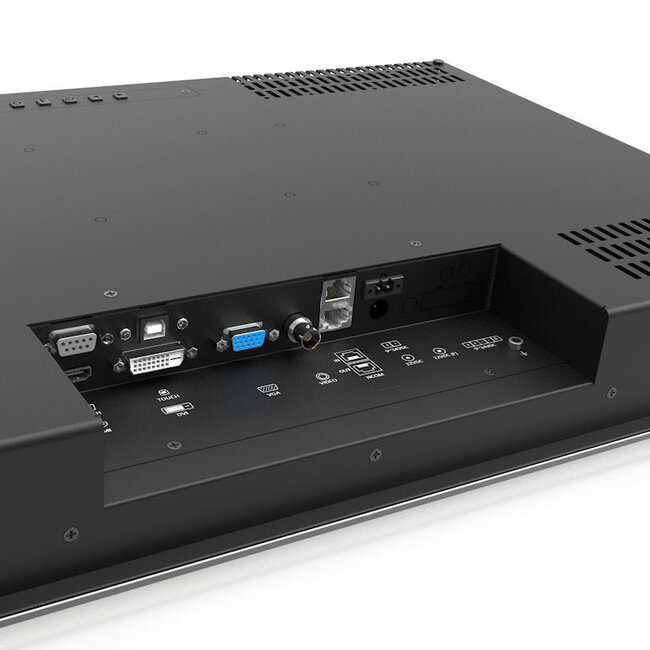

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports external and multi-dimming configurations

• Capacitive Switch: Yes, for video input selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N240KGE - DNV Product Sheet
• N-Line N240KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
