N-line N215KGE 21,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

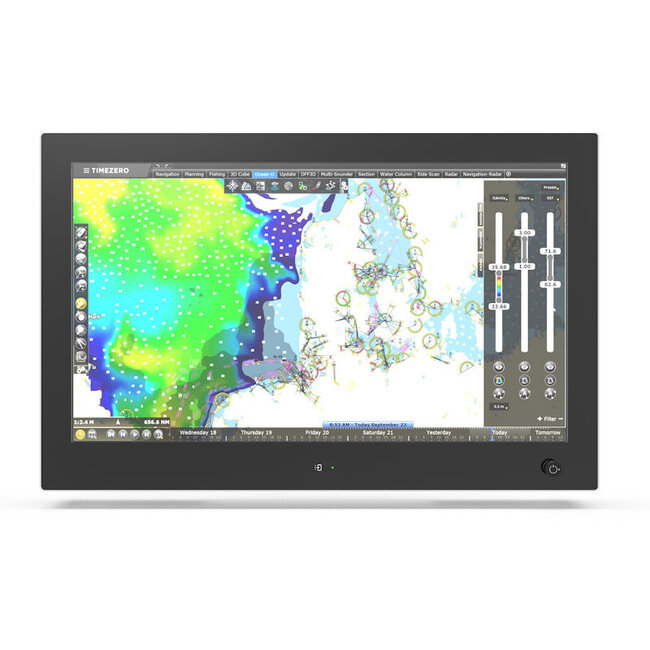

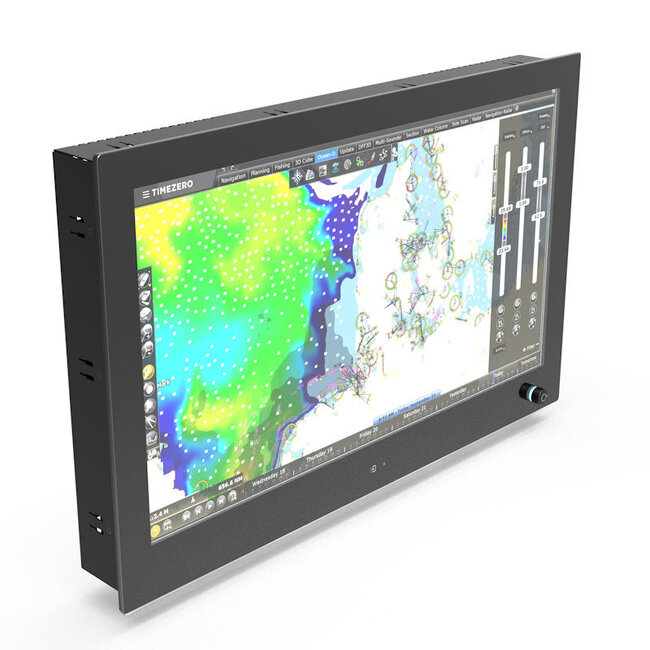

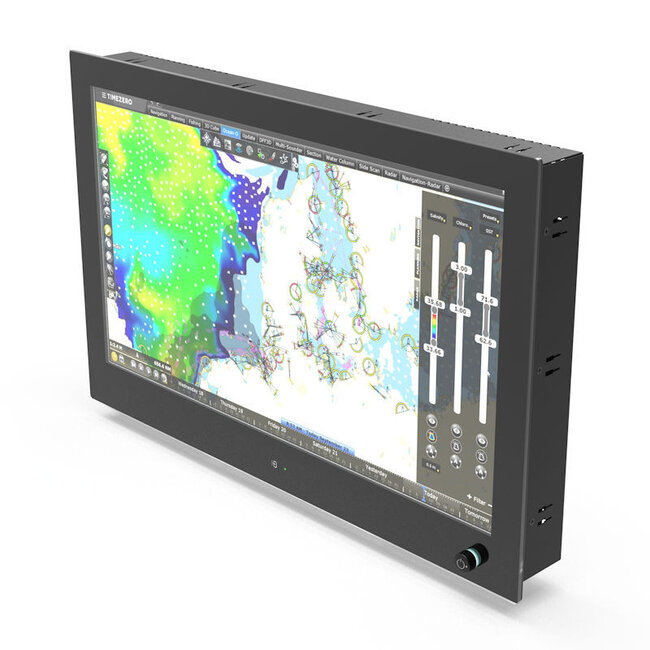

The Nottrot N-line N215KGE is a 21,5” full glass panel mount monitor engineered for high-performance use in marine environments. With a rugged steel body and a waterproof full glass front, it is purpose-built for flush console integration on yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), the N215KGE is ideal for displaying navigation data, alarm and monitoring systems, CCTV feeds, and power management interfaces.

Equipped with a front-mounted dimming encoder, users can easily control brightness, power, and access the OSD menu. The KGE model also includes a capacitive switch at the bottom of the display for effortless video input selection. The projected capacitive touchscreen ensures smooth and precise touch interaction, while the optically bonded anti-glare glass improves readability under all lighting conditions. Certified to DNV (IEC 60945) standards, this monitor meets the highest safety and reliability requirements for marine operations.

FEATURES

• Sleek full glass front with flush panel waterproof design

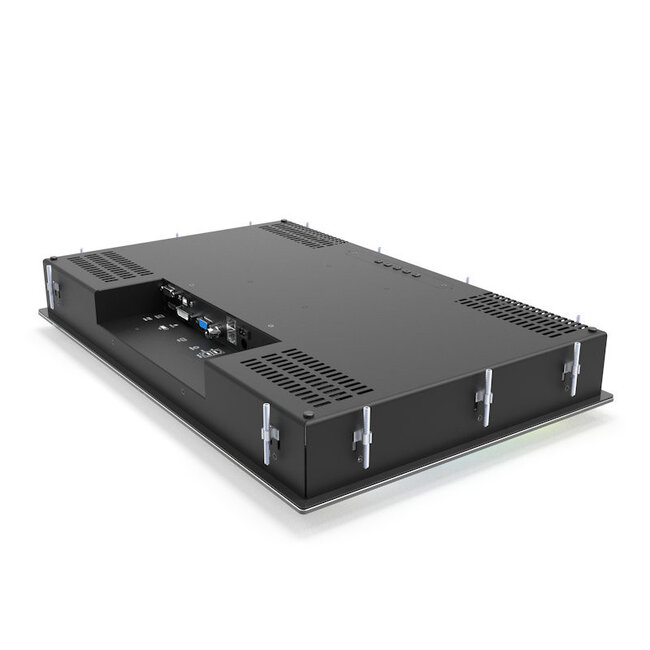

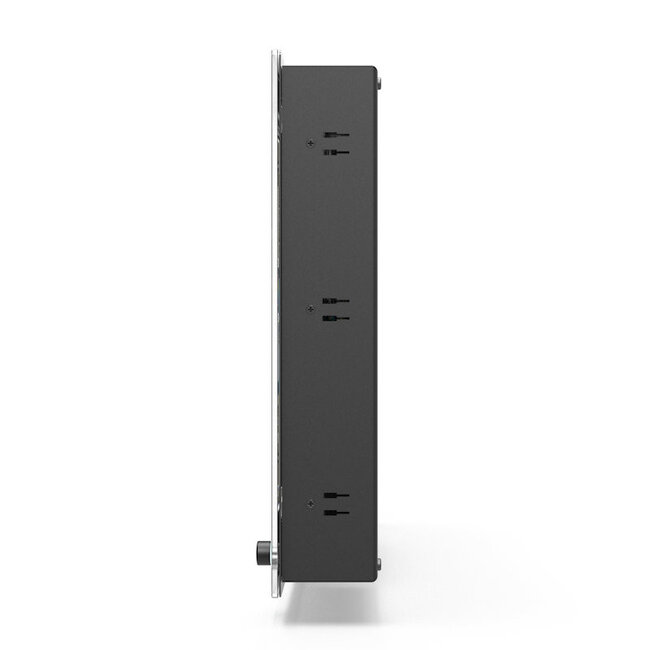

• Rugged steel construction for demanding maritime use

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness, power, and OSD control

• Capacitive switch for fast video source selection (KGE model)

• Anti-glare and optically bonded glass for enhanced screen clarity

• Perfect for navigation, CCTV, power systems, and alarm monitoring

• Certified to DNV (IEC 60945) maritime standards

• Flexible dimming options: front, external, central, or multi-display setups

• Available in screen sizes from 15” to 27”

SPECIFICATIONS

• Brand: Nottrot

• Model: N215KGE

• Screen Size: 21,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

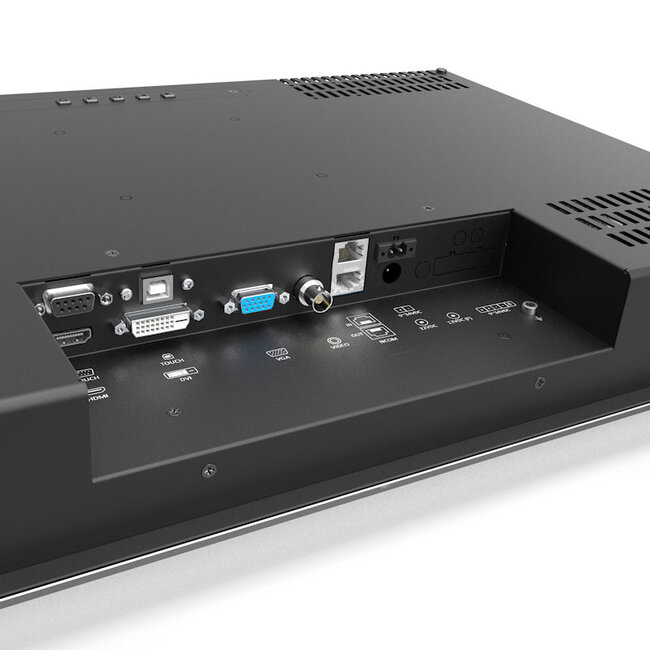

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; supports additional dimming configurations

• Capacitive Switch: Yes, for video input selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N215KGE - DNV Product Sheet
• N-Line N215KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
