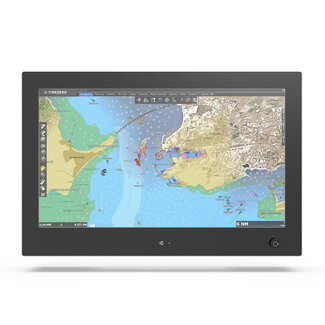

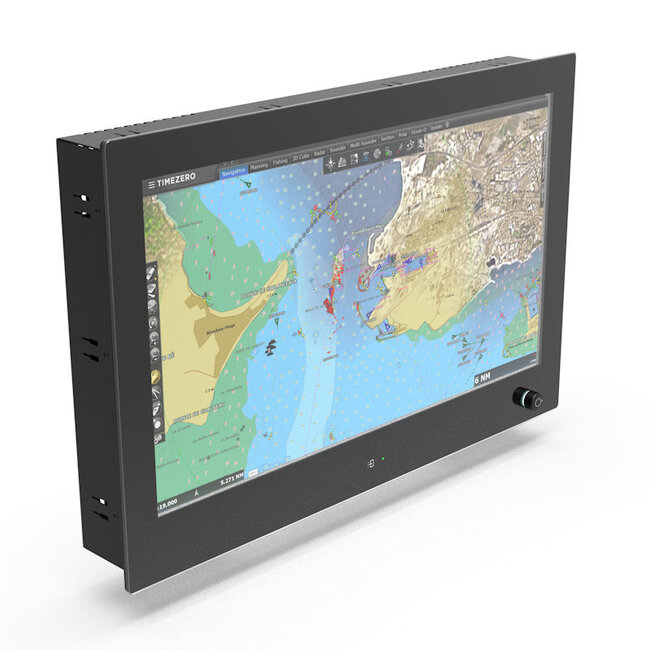

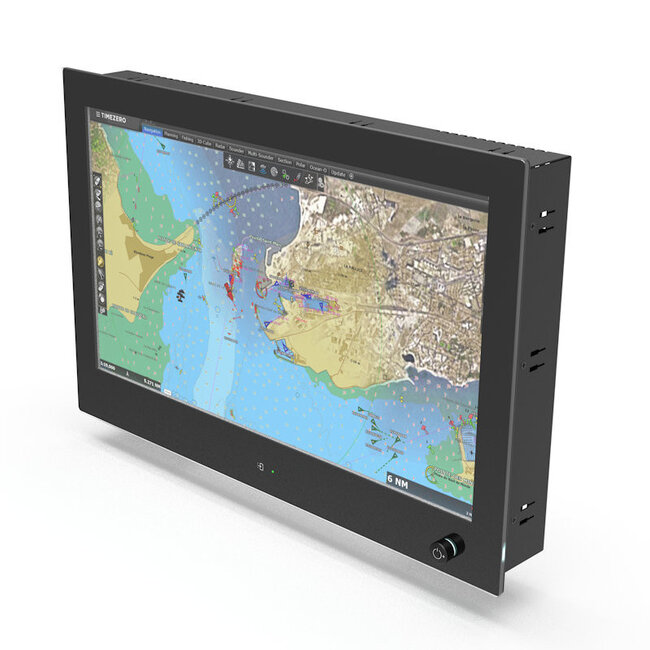

N-line N185KGE 18,5" Full Glass Panel Mount with Multi Touchscreen, 9-36V, Dimming, Optical Bonding and Anti-Glare Glass – DNV Certified

The Nottrot N-line N185KGE is a 18,5” full glass panel mount monitor designed for marine environments where durability, clarity, and versatility are essential. Built with a rugged steel body and sleek waterproof glass front, it can be flush-mounted into control consoles, making it ideal for yachts, workboats, and fishing vessels. As part of the N-line series (available in 15” to 27”), it supports a wide range of applications such as navigation, alarm monitoring, power management, and CCTV.

This KGE model features a front-mounted dimming encoder that allows users to easily adjust brightness, toggle power, and access the OSD menu. Additionally, a capacitive switch at the bottom of the screen enables seamless video input selection. The projected capacitive touchscreen ensures accurate and responsive interaction, while optically bonded anti-glare glass enhances visibility in all lighting conditions. Certified to DNV (IEC 60945) standards, the N185KGE meets the rigorous demands of the maritime industry.

FEATURES

• Sleek full glass front with waterproof flush-mount design

• Rugged steel housing for reliable marine use

• Projected capacitive multi-touch touchscreen

• Integrated front dimming encoder for brightness and OSD control

• Capacitive switch for selecting video input (KGE model)

• Anti-glare and optically bonded glass for superior readability

• Ideal for navigation, CCTV, alarms, and vessel system monitoring

• Certified to DNV (IEC 60945) maritime standards

• Flexible dimming options: front knob, external, central, or multi

SPECIFICATIONS

• Brand: Nottrot

• Model: N185KGE

• Screen Size: 18,5”

• Resolution: 1920 x 1080 pixels

• Aspect Ratio: 16:9

• Brightness: 500 nits

• Optional High Brightness: 1000 nits

• Touch Panel: Projected capacitive touchscreen

• Power Input: 9~36VDC, galvanically isolated

• Front Panel Protection: IP65 (front only)

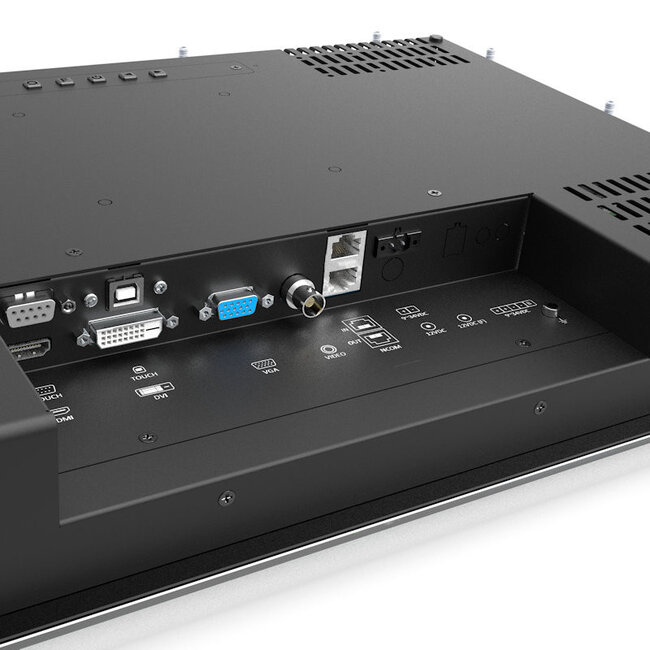

• Video Inputs: HDMI, DVI-D, VGA, CVBS (BNC)

• Dimming Control: Integrated encoder; optional external and multi-dimming support

• Capacitive Switch: Yes, for video input selection

• Certification: DNV (IEC 60945)

• Optional Accessories:

  • V-Stand for monitors with 100x100 VESA bracket

BROCHURES

• N-line N185KGE - DNV Product Sheet
• N-Line N185KGE - DNV Product Dimensions
• N-Line User Manual
• Entire N-line front and cutout dimensions
