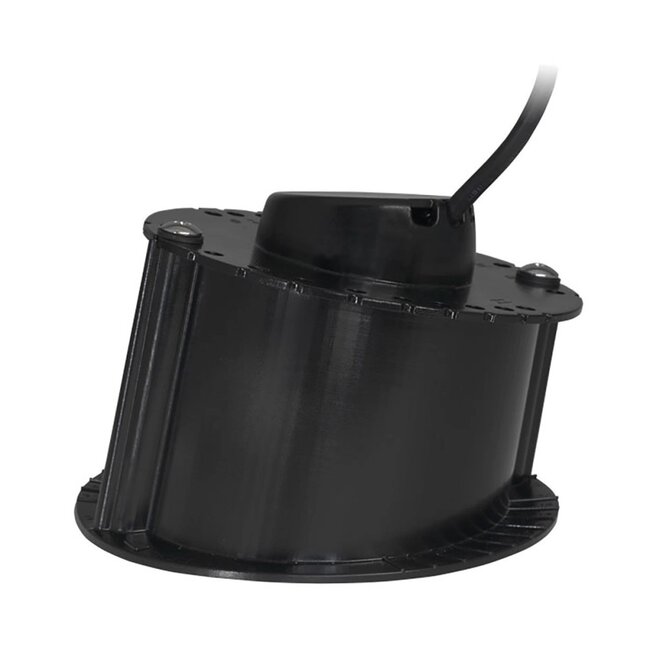

AIRMAR M285HW High-Performance 1 kW High Wide CHIRP In-Hull Transducer
€2.210,00 €1.826,45 €1.754,51 €1.450,01
Add to cart
AIRMAR M285HW High-Performance 1 kW High Wide CHIRP In-Hull Transducer
AIRMAR
(0)

AIRMAR M285HW High-Performance 1 kW High Wide CHIRP In-Hull Transducer

€2.210,00 €1.826,45
€1.754,51 €1.450,01 incl. VAT excl. VAT
In stock

The M285HW combines crisp fish-target detail with a wide CHIRP beam that stays at 25° across the frequency band. It covers a broad area beneath the boat for inshore and pelagic fishing without drilling through a solid fiberglass hull. Read more.

Standard Delivery: 4-10 working days
  • Free shipping from €750
  • Shipping across Europe
  • Installation available – call us for details
  • Reliable, knowledgeable, and committed

Product description

AIRMAR M285HW High Wide CHIRP 1 kW In-Hull Transducer

The AIRMAR M285HW combines high-frequency target detail with a constant 25° beam, giving fishermen broad coverage beneath the boat throughout its 150–250 kHz CHIRP band. The beam stays wide as frequency increases, helping locate fish in the upper water column while retaining defined fish targets and bottom returns. Its 1 kW power rating and rated depth of approximately 150 m (500 ft) suit inshore and pelagic fishing where coverage and resolution are priorities.

Designed for solid-fiberglass planing or displacement hulls on boats up to 11 m, the M285HW installs inside the vessel without a hole through the hull or an exterior protrusion. Its adjustable plastic base accommodates 0°–22° of deadrise, keeping the sonar beam directed downward. The internal mounting also suits boats that are regularly trailered or lifted.

This M285C-HW-MM variant provides depth only and includes an integrated 9 m cable with an AIRMAR 12-pin Mix and Match™ connector. Complete your setup with the Mix and Match™ CHIRP adapter cable for your compatible fishfinder or blackbox sonar module. Explore the adapter options below.

FEATURES

  • High Wide CHIRP (150–250 kHz): A 100 kHz bandwidth for detailed fish targets and bottom returns.
  • Constant 25° beamwidth: Maintains broad coverage across the full frequency band.
  • 1 kW power rating: High-frequency performance for inshore and pelagic fishing.
  • In-hull mounting: No hull penetration or exterior protrusion.
  • Adjustable mounting base: Accommodates hull deadrise from 0° to 22°.
  • Integrated 9 m cable: AIRMAR 12-pin Mix and Match™ connector.
  • Depth-only function: No temperature or speed measurement.

MAIN COMPONENTS & WHAT’S INCLUDED

M285HW CHIRP Transducer Body
1 kW High Wide transducer with a urethane acoustic window.

Adjustable Plastic Mounting Base
Secures the transducer inside the hull and allows adjustment for the hull’s deadrise.

Integrated 9 m Cable
Supplied with an AIRMAR 12-pin Mix and Match™ connector.

REQUIRED ADAPTER CABLE

Complete the connection with an AIRMAR Mix and Match™ CHIRP adapter cable, also available at the website. Each option listed is 1 m long, with an AIRMAR MMC 12-pin connection at the transducer end. The adapter is not included with the transducer.

Check the device compatibility filters for confirmed Furuno matches, then select the adapter for your equipment’s transducer input. For other brands, confirm M285HW support with the equipment manufacturer.

  • Furuno: MMC-10F-HM for 10-pin High CHIRP inputs; MMC-12F for 12-pin inputs.
  • Garmin: MMC-8G for blue 8-pin inputs; MMC-12G for orange 12-pin inputs.
  • Lowrance / Simrad: MMC-BL for blue 7-pin single-band inputs; MMC-9N for xSonic 9-pin High CHIRP inputs.
  • Raymarine: MMC-11R-HM for 11-pin High/High Wide CHIRP inputs.
  • Humminbird: MMC-HB for compatible HELIX systems with a Humminbird #9 connection; MMC-14HB for 14-pin connections without XID; MMC-14HB-X for 14-pin connections with XID.
  • Si-Tex / AVMAP–SEIWA: MMC-BB for compatible 8-pin High CHIRP inputs.

Wired Installations

  • MMC-0: Bare-wire adapter for termination at a compatible blackbox sonar module.

Optional Cable Extensions

  • MMC-EXT-10: 3 m AIRMAR MMC extension cable.
  • MMC-EXT-20: 6 m AIRMAR MMC extension cable.

Extensions provide additional cable length and do not replace the required adapter.

SPECIFICATIONS

  • Model: M285C-HW-MM
  • Power rating: 1 kW
  • Frequency: 150–250 kHz (High Wide CHIRP)
  • Total bandwidth: 100 kHz
  • Beamwidth: Constant 25°
  • Rated maximum depth: Approximately 150 m (500 ft)
  • Functions: Depth
  • Mounting: In-hull with adjustable base
  • Housing: Plastic with urethane acoustic window
  • Mounting base: Plastic
  • Hull material: Solid fiberglass only
  • Hull type: Planing or displacement
  • Recommended boat size: Up to 11 m
  • Deadrise range: 0°–22°
  • Cable length: 9 m, integrated
  • Connector: AIRMAR 12-pin Mix and Match™ (MMC)
  • Adapter cable: Required, not included

INSTALLATION CONSIDERATIONS

Secure the mounting base inside a solid-fiberglass hull, aligned with the boat’s centreline, and fill it with non-toxic antifreeze. Insert the transducer and adjust it for the hull’s deadrise so the beam points straight down. Follow AIRMAR’s installation instructions.

At Sail360, we help you choose marine equipment built to perform and made to last.

BROCHURES

M285HW 1KW Plastic Chirp Ready Installation Instructions

Single Band Chirp Transducer Comparison

Mix and Match Transducer Cable System

Specifications

Article number
41-818-1-01
EAN Code
801769002126
SKU
032-41818101
