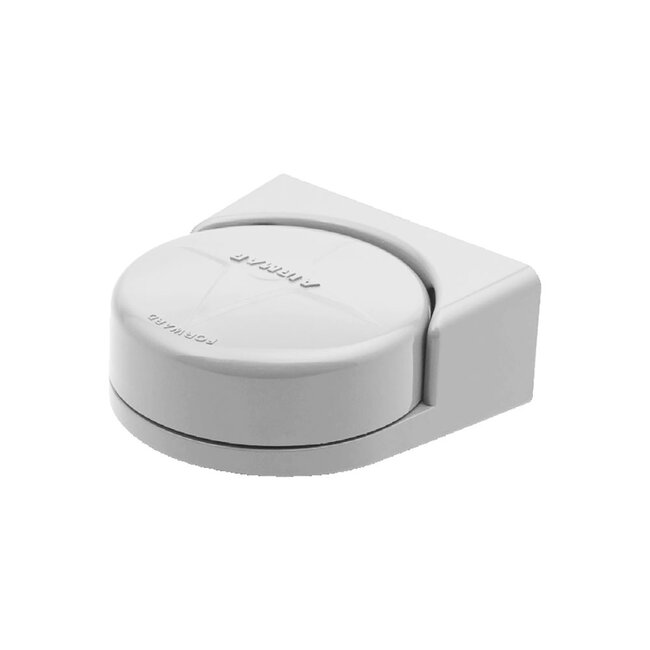

H2183 Three Axis Compass H2183
Whether you're offshore fishing or simply cruising, the patented H2183 ensures you stay on course with confidence. This highly reliable heading sensor features a three-axis, solid-state compass integrated with Airmar’s advanced sensor technology and proprietary software. The result is exceptional accuracy and stability, delivering dependable heading data even in challenging marine conditions.
FEATURES
- Better than 1° heading accuracy in static conditions
- Best-in-class 2° heading accuracy in dynamic conditions
- Default 10 Hz update rate for heading (HDG)
- Three-axis solid-state compass with dynamic stabilization
- Only recreational heading sensor that uses a three-axis rate gyro for rate-of-turn data
- Three-axis accelerometer provides best-in-class pitch and roll information
- Compass calibration can be easily done on any display or PC
- Outputs NMEA 0183 and NMEA 2000 data simultaneously
- Easily mounts on any angled bulkhead
- IPX6 waterproof housing
SPECIFICATIONS
- Boat Alignment: Yes using software
- Certs And Standards: CE, IPX6, RoHS, IEC60945
- Operating Temp Range: -25 to 55°C (-13 to 131°F)
- Pitch and Roll Data-output Update Rate - NMEA 0183: 2 Hz (adjustable up to 10 Hz)
- Pitch and Roll Dynamic Accuracy: <3°
- Pitch and Roll Range: ±50°
- Pitch and Roll Static Accuracy: <1°
- Power Supply Current: <30mA at 12 VDC
- Power Supply Voltage: 9 to 40 VDC
- Rate of Turn Accuracy: 1°/s
- Rate of Turn Range: 0 to 70°/s
- Temperature Storage Range: -30 to 70°C (-22 to 158°F)
- Three-axis Compass Data-output Update Rate - NMEA 0183: 10 Hz
- Three-axis Compass Data-output Update Rate - NMEA 2000: Adjustable up to 20 Hz
- Three-axis Compass Display Resolution: 0.1°
- Three-axis Compass Dynamic Accuracy: 2° RMS (Best-in-Class)
- Three-axis Compass Settling Time: 1 s (adjustable)
- Three-axis Compass Static Accuracy: 1° RMS when level
- NMEA 2000 LEN: 1
- Sensor Connector: 10WS
- Connector: Airmar 10-Pin (WS)
- Display Connector: Cable Required
- Comm Method: NMEA 2000®
- Country of Origin: USA
