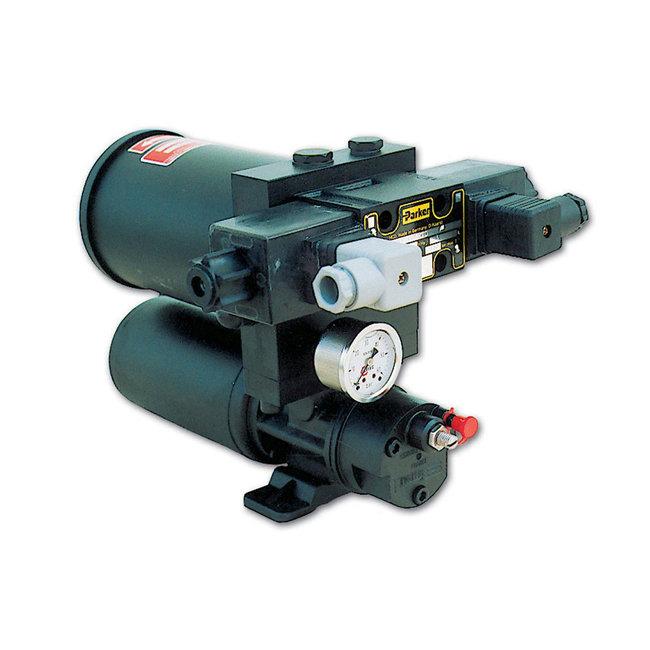

FURUNO HYDRAULIC PUMP EV3 Permanently running pump

Hydraulic power pack EV3 with adjustable flow, available in 12V or 24V, designed for pleasure, fishing, and work boats. It is equipped with an electrodistributor and an integrated oil reservoir. Flow adjustment is controlled by a screw, allowing precise regulation of the time required for lock-to-lock steering displacement.
Caution: The pressure limiter has been factory set to a maximum of 30 bars. Do not attempt to modify it.

FEATURES

• Supply voltage: 12 Volt DC or 24 Volt DC when ordering
• Capacity to connect cylinder: 650 cubic cm
• Fluid flow setting: 0.3-3 liters per minute
• Dimensions (L x H x W): 305 x 220 x 230 mm

SPECIFICATIONS

• Product code: 2200844
• Type of power pack: Electrovalve with adjustable flow
• Maximum cylinder capacity: 650 cc
• Recommended protection: 30A
• Volume: 1 L
• Max. pressure: 30 bar
• Flow rate: 0.3 to 3 l/min
• Weight: 9 kg

NOTE: Before adding to cart please select the correct V, 12V or 24V.

BROCHURES

• Hydrolic Pump EV3 Brochure
