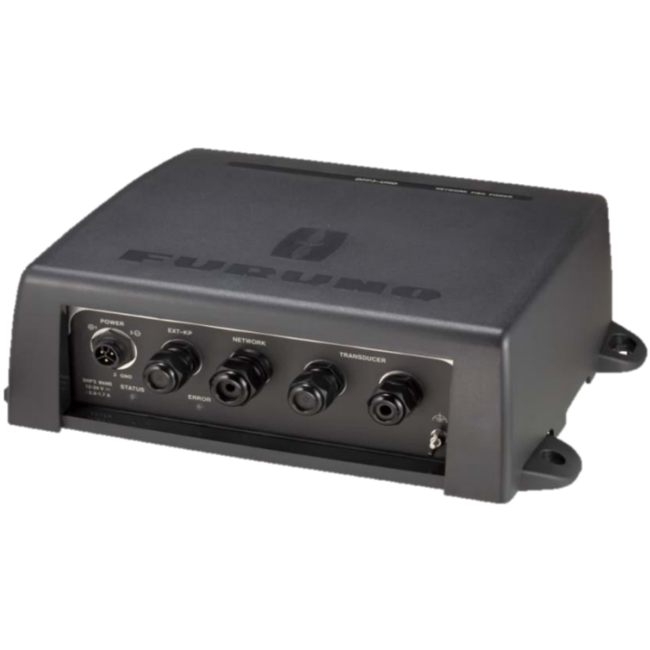

DFF3-UHD graphical echosounder Network-Fischfinder with CHIRP

UNLEASHED: HIGH-POWER 2kW/3kW TruEcho CHIRP™ NETWORK FISH FINDER

The DFF3-UHD High-Power TruEcho CHIRP™ Fish Finder for NavNet TZtouch3 delivers unmatched clarity and depth performance. With advanced digital signal processing, it provides crystal-clear, highly accurate images of fish and bottom structures, reaching depths of up to 15,000 feet.

Screenshot taken in Key West, Florida, USA.
Detected targets: bluefin tuna and amberjack.
Photo of the catch shown on the previous page was taken in this same area.
Transducer: R109LHW – CHIRP 2 kW, 38–75 kHz & 150–250 kHz.

Screenshot using Color Mode: Sunlight (NEW)
Fish echoes around structure and in mid-water.
The selected display mode is the new "Sunlight" color mode, available on TZT9F/12F/16F/19F v3.01 and TZT2BB v9.01.

ECHO STRETCH
CHIRP processing gives sharp echoes, but small targets may be hard to see. Echo Stretch thickens echoes, making targets clearer from a distance or in deep water.

TRANSMISSION AT PRESET FREQUENCY
Up to three frequencies can be saved and selected instantly. This allows quick adjustment for different depths, fishing areas, and target species. It also helps reduce interference from nearby vessels and ensures the best signal for bait, game fish, and deep-water scanning.

SEQUENTIAL TRANSMISSION
In addition to simultaneous dual-frequency transmission, the DFF3-UHD offers a new Sequential Transmission mode (Sequential A / Sequential B). This mode alternates frequencies instead of sending them together, which helps reduce side-lobe effects around the seabed and improves clarity of bottom targets.

FEATURES

• 2 kW or 3 kW Power Output
• Transmits across Low, Medium, and High CHIRP frequency ranges
• High Power = greater resolution and depth capability at all ranges
• Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
• Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
• Find and catch more of your target species, game fish, and baitfish even when they're tightly schooled or near the seafloor
• A-Scope feature and programmable Fish, Depth, or Temp Alarms
• Enhanced automatic cruising or fishing modes to suit your style of boating

SPECIFICATIONS

• TX Type: Dual Band CHIRP and CW
• Output Power: CHIRP max. 3 kW / CW 2–3 kW
• Max. Range Scale: 3 000 m
• Frequency: 25–242 kHz
• BT-5: Compatible with 5/10 kHz CW transducer
• Interconnection: Connect to MFD network via Ethernet
• Networked MFDs: NavNet TZtouch3 (v3+ software), NavNet TZT2BB (v9+ software)
• Power Supply: 12–24 VDC
• Power Consumption: 3.0–1.6 A
• Protection Level: IP55
• Dimensions: 380 × 120 × 299 mm / 15 × 4.72 × 11.78 in
• Weight: 3.6 kg / 7.94 lbs
• Bracket: Fixed mount
• Function: CHIRP + CW
• LAN: 1
• Power: 2–3 kW
• Power Input: 12/24 V
• Type: Network sounder
• Application: Fishing
• Waterproof: IP55

BROCHURES

• DFF3-UHD Installation Instructions
• DFF3-UHD Dimensions

Expert Analysis

The combination of powerful CHIRP technology and sequential transmission reduces interference and provides clarity often lacking in standard fishfinders. This sets this product apart in a market where most descriptions provide only basic information.

For the professional angler, this means the DFF3-UHD delivers better detection and more accurate data, essential for successfully locating fish species in challenging conditions.
