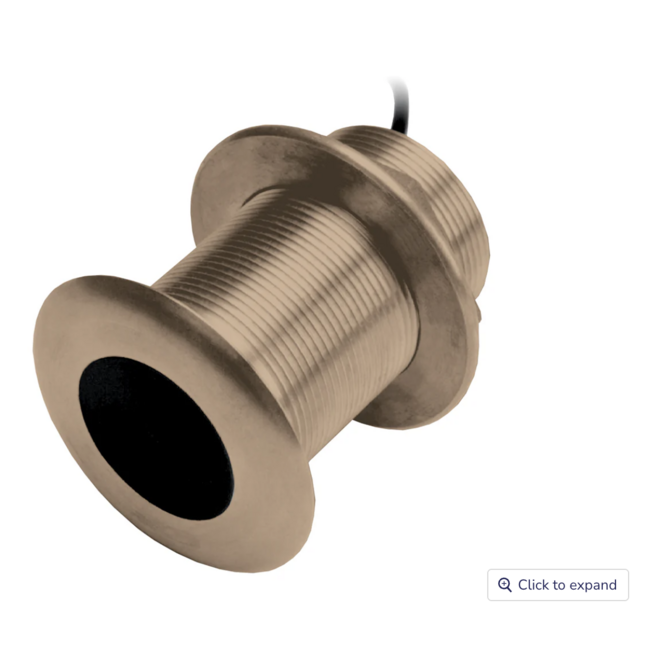

Airmar B150M single-channel CHIRP bronze thru-hull transducer operating at 95–155 kHz with 300 W output. Provides clear mid-band target separation, stable depth tracking, and built-in temperature sensing. Includes 12 m cable with 10-pin connector. Read more.
The AIRMAR B150M is a bronze single-channel CHIRP depth and temperature thru-hull transducer, designed for boaters who want clearer sonar returns than traditional 50/200 kHz units but do not need a dual-channel or high-wide system. Operating in the 95–155 kHz mid-band CHIRP range, it sends a continuous sweep of frequencies instead of a single tone, producing sharper fish arches, cleaner mid-water targets and more reliable bottom detail — especially in coastal and inshore conditions where precision matters.
With a 300 W power rating, the B150M provides strong and stable performance for small to mid-size vessels. Its bronze thru-hull housing ensures durability and consistent acoustic coupling with the water, giving more accurate readings at speed. An integrated water-temperature sensor, 12 m cable and 10-pin connector allow straightforward plug-and-play integration with compatible Furuno CHIRP modules and TZtouch sounders.
The B150M is available in 0°, 12° and 20° tilted-element versions to suit different hull deadrise angles. The selected angle does not change the transducer’s specifications or sonar performance; it simply ensures the acoustic beam is correctly oriented in the water for optimal depth readings and target definition.
Mid-band single-channel CHIRP (95–155 kHz): Provides a wide CHIRP sweep for clearer fish arches and improved target separation compared to fixed-frequency sensors.
300 W output: Strong and stable performance for coastal and inshore depth sounding.
Accurate structure definition: Better identification of bait, fish and bottom transitions.
Bronze thru-hull construction: Durable and corrosion-resistant for long-term reliability.
Integrated temperature sensor: Delivers precise water-temperature readings useful for fishing.
10-pin connector: Direct, simplified installation with compatible Furuno systems.
12 m marine cable: Flexible routing for a range of boat sizes and layouts.
B150M CHIRP Transducer Body
Single-channel CHIRP ceramic element enclosed in a bronze thru-hull housing, providing strong acoustic performance and resistance to marine conditions.
Thru-Hull Hardware Set
Threaded bronze housing, backing nut and sealing components designed to ensure a watertight, flush installation.
12 m 10-Pin Cable
Factory-installed cable with plug for direct connection to Furuno CHIRP modules and TZtouch sounders.
Power: 300 W
Frequency: 95–155 kHz (CHIRP)
Functions: Depth, temperature
Material: Bronze
Mounting: Thru-hull
Connector: 10-pin
Cable length: 12 m
Recommended use: Coastal fishing, inshore structure detection, accurate depth sounding
Supported systems: Compatible with Furuno CHIRP modules and TZtouch systems using a 10-pin transducer input.
Connector: 10-pin plug for direct, tool-free integration.
Function support: Depth and temperature display.
Note: Not designed for dual-channel or wide-beam operation.
B150M bronze CHIRP thru-hull transducer
Bronze mounting hardware
12 m 10-pin cable
Installation documentation
Install the transducer in a position where water flow is clean and free of turbulence to ensure accurate CHIRP returns. The bronze housing must sit flush with the hull for optimal performance. Avoid strakes, steps and fittings that introduce air or turbulence. Route the cable through a watertight pass-through and connect directly to the 10-pin input, keeping it isolated from electrical interference for the clearest readings.
The tilted-element thru-hull design is available in 0°, 12° and 20° versions to match different hull deadrise angles, allowing the acoustic beam to be oriented vertically in the water for optimal sonar performance.
