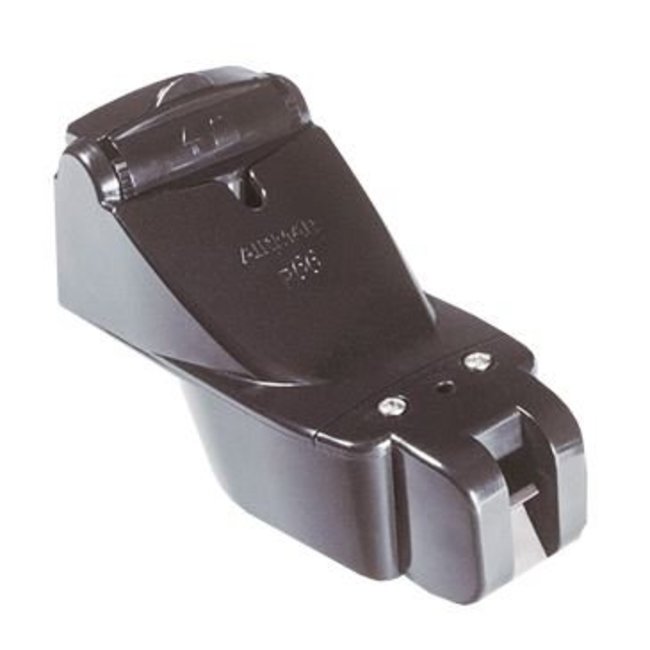

Triducer P66 DST Rear Mount
The P66 TRIDUCER® Multisensor integrates depth, speed, and temperature sensing into a single, compact housing. Featuring a 50/200 kHz dual-frequency ceramic element, it delivers reliable performance across both shallow and deep waters. Its hydrodynamic design, including a rounded nose, minimizes turbulence around the acoustic face for accurate readings at high speeds and crisp, clear sonar images. Ideal for boats up to 12 meters in length, the P66 is Airmar’s most capable TRIDUCER transom-mount sensor for versatile marine applications.
FEATURES
- Depth, speed, and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
SPECIFICATIONS
- Power Rating: 600 W
- Functions: Depth, Speed, Temperature
- Max Vessel LOA: Up to 12m
- Acoustic Window: Layered plastic urethane (LPU)
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Housing: Plastic
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Transom
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Weight: 0.5 kg (1.1 lb.)
- Comes with a 10 m cable (10pin)
