Zipwake Series 800E PRO Straight Kit Box Trim System

The Zipwake Series 800E PRO Straight Kit Box Trim System is an advanced dynamic trim control solution engineered for high-performance planing and semi-planing vessels up to approximately 30 m (≈ 100 ft). As part of the E PRO Series, it elevates the original Series E with enhanced dual-servo interceptors, reinforced electronics and ultra-fast motion correction.

Designed to actively manage pitch and roll, this system improves hull stability, maximizes lift and minimizes drag for smoother rides and greater fuel efficiency. With its hardened construction and high-speed actuation, the Series 800E PRO is ideal for demanding marine environments including commercial craft, luxury yachts and patrol vessels.

FEATURES

• Straight configuration (800 mm): Long-blade straight interceptors optimized for flat transom installations, delivering superior lift and enhanced trim stability.

• Dual brushless PRO servos: Dual actuators provide high-torque, rapid response adjustment for real-time trim control under load.

• Automatic motion control: Sensors and embedded control logic continuously measure vessel motion and apply automatic correction of pitch and roll.

• Improved fuel and performance efficiency: By reducing trim-induced drag and optimizing hull attitude, the system supports lower fuel consumption and enhanced running performance.

• Heavy-duty build & waterproofing: Interceptors rated at IP68 and electronics at IP67 ensure long-term reliability in professional marine environments. (Zipwake)

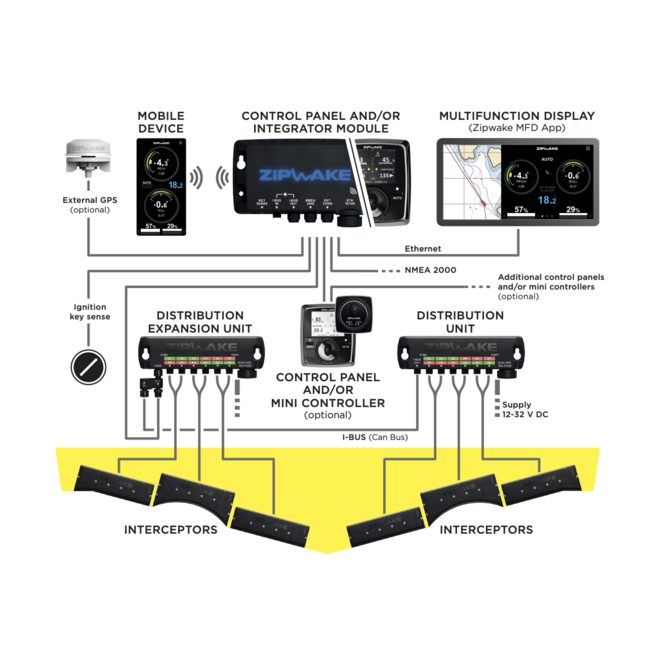

• Expandable architecture: Supports up to six interceptors per distribution unit, enabling scalable installations for large or multi-engine vessels. (Zipwake)

MAIN COMPONENTS

Straight Interceptors (IT800-E PRO Straight)

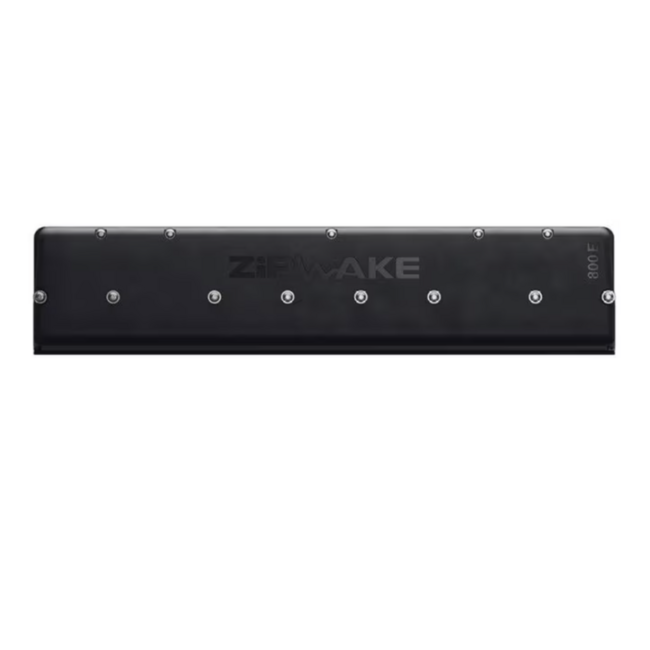

A pair of 800 mm straight interceptors equipped with dual brushless servo actuators. Their extended blade length and high-speed actuation deliver powerful lift and precision trim control for larger vessels.

Distribution Unit (DU-PRO)

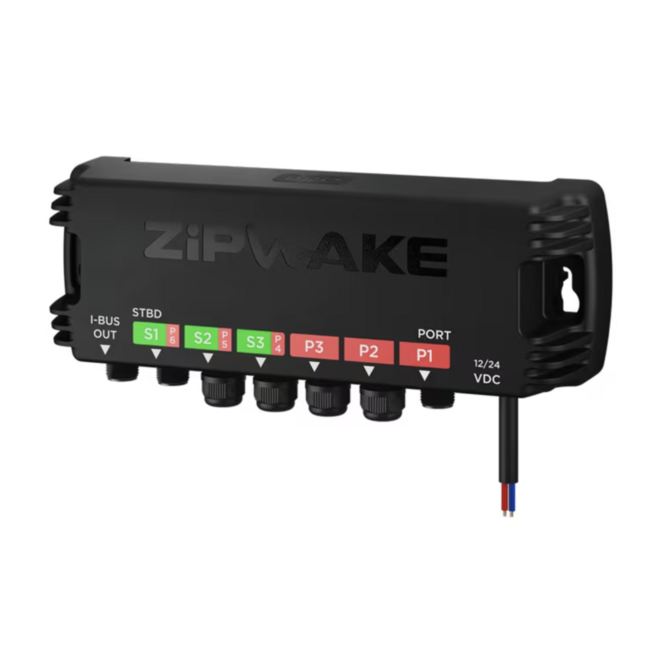

A robust, waterproof power and communications hub that supplies the interceptors and coordinates system operation. Built-in protective features handle high vibration and thermal stress in engine-room environments. (Zipwake)

Control Panel (CP-PRO)

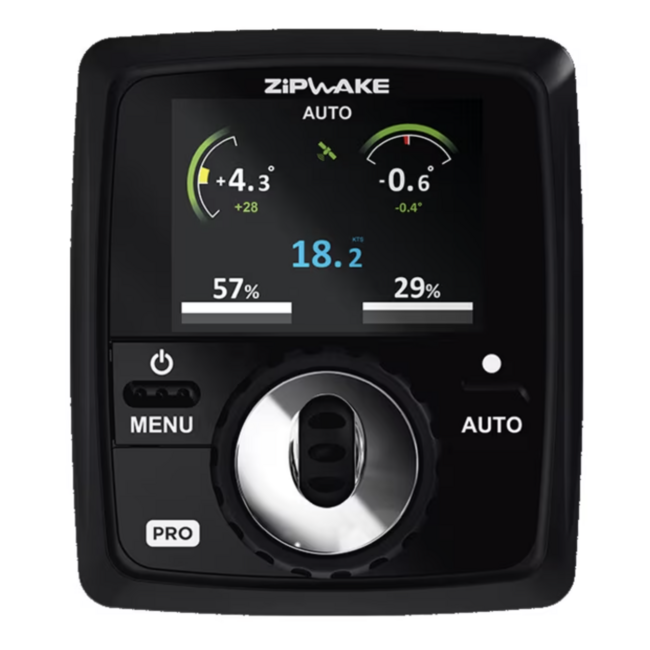

A compact colour display panel with dual dials for manual trim adjustment and system monitoring. Built-in GPS, 3D gyro and accelerometer sensors enable automatic motion correction and provide real-time vessel status feedback. (saim-group)

SPECIFICATIONS

• Interceptor type: Straight (flat transom)

• Interceptor length: 800 mm (31.5 in) (smgeurope.com)

• Blade stroke: 60 mm / or up to 60 mm full stroke in E PRO family (Zipwake)

• Maximum vessel speed: Typically up to ~60 knots (≈ 110 km/h) for PRO series

• Vessel length: Up to approx. 30 m (≈ 100 ft) (smgeurope.com)

• Voltage range: 12–32 V DC

• Power consumption: Approx. 25–35 W per actuator (smgeurope.com)

• Ingress protection: IP68 (interceptors), IP67 (electronics)

• Connector type: M12, 5-pin circular

• Cable length: 3 m standard (extendable to 6 m) (smgeurope.com)

• Operating temperature: 0 °C to +40 °C typical; electronics rated –20 °C to +85 °C ◆

• Storage temperature: –40 °C to +90 °C

• Kit box weight: Approx. 26.8 kg for model KB800-E PRO base kit (Zipwake)

WHAT THE KIT INCLUDES

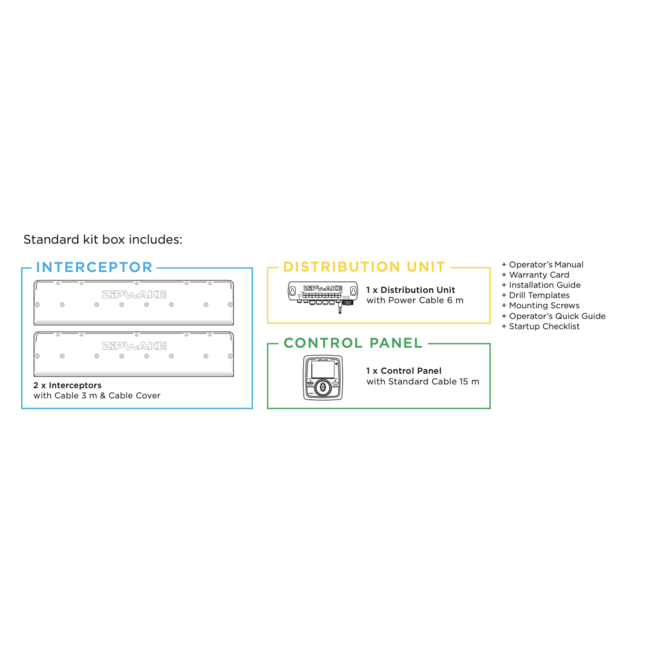

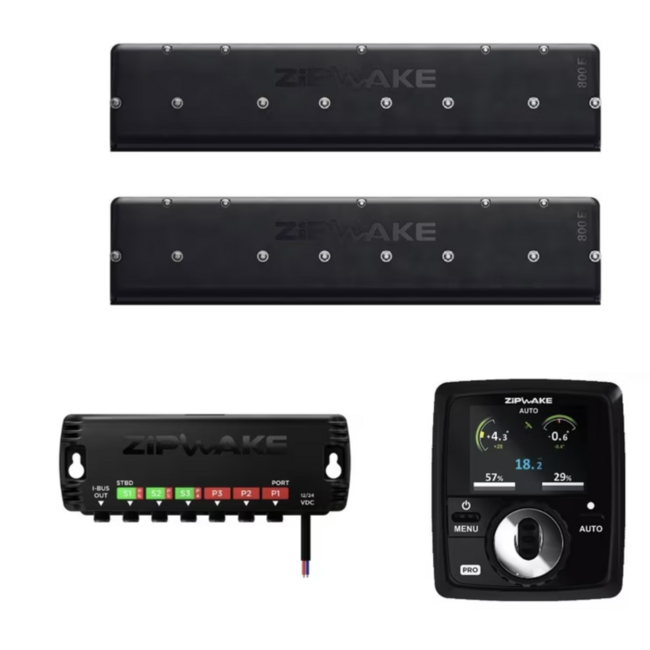

• 2 × Straight Interceptors (800 mm) with 3 m cables and mounting plates

• 1 × Distribution Unit (DU-PRO) with 4 m power cable

• 1 × Control Panel (CP-PRO) with standard cable

• 1 × Standard Extension Cable

• Operator’s Manual

• Installation Guide

• Drill Templates

• Mounting Screws

• Quick Start Guide

• Warranty Card

INSTALLATION CONSIDERATIONS

The straight interceptors must be mounted flush with the transom surface to ensure smooth water-flow and optimal lift efficiency. The Distribution Unit should be located in a dry, accessible area such as the engine room, with all cables passing through watertight glands when routed below the waterline. The Control Panel should be positioned near the helm for best visibility and operation. The system supports modular expansion of up to six interceptors per distribution unit without additional connectors or power supplies.
