Advanced trim control system with 450 mm chine interceptors for V-shaped hulls up to 18 m. The Integrator Module enables centralized, automatic pitch and roll correction, improving handling, fuel efficiency, and comfort in demanding marine environments. Read more.
The Zipwake Series 450S PRO Chine Integrator Module Kit Box Trim System is an advanced professional-grade dynamic trim control solution engineered for fast and heavily loaded vessels that demand maximum stability, precision, and responsiveness. As part of the S PRO Series, this model delivers enhanced actuator power, upgraded waterproofing, and superior build quality compared to the standard Series S, making it ideal for commercial and high-performance use.

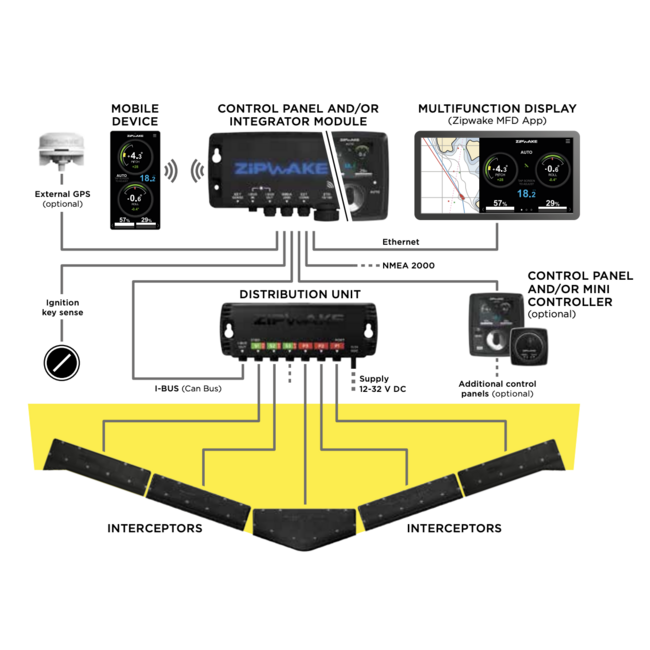

The Chine configuration is specifically designed for angled or V-shaped hull surfaces, enabling efficient lift and roll correction where straight interceptors cannot be installed. The Integrator Module (IM) provides centralized control for multiple Zipwake systems, combining plug-and-play simplicity with advanced connectivity through NMEA 2000, supporting GPS and sensor data integration for complete vessel awareness.
The system ensures real-time dynamic stabilization by automatically adjusting the trim and roll angles, significantly improving handling, fuel efficiency, and onboard comfort in all conditions. It is compatible with up to six interceptors, allowing for scalable installation and future upgrades.
Professional-grade design: Built for heavy-duty, continuous operation with enhanced durability and precision components.
Chine configuration: Tailored for angled transoms and V-shaped hulls, ensuring balanced lift and accurate roll control.
Centralized integration: The Integrator Module links multiple Zipwake S PRO units into a unified control system.
Plug-and-play connectivity: Simplifies setup and expansion through standardized NMEA 2000 interface.
Automatic stabilization: Real-time dynamic correction of roll and pitch using integrated 3D sensors.
Fuel efficiency: Optimizes running angle to minimize resistance and fuel consumption.
Smart operation: Seamless automatic mode with instant feedback on vessel trim, roll, and interceptor positions.
Scalable system: Supports up to six interceptors without requiring additional connectors or power modules.

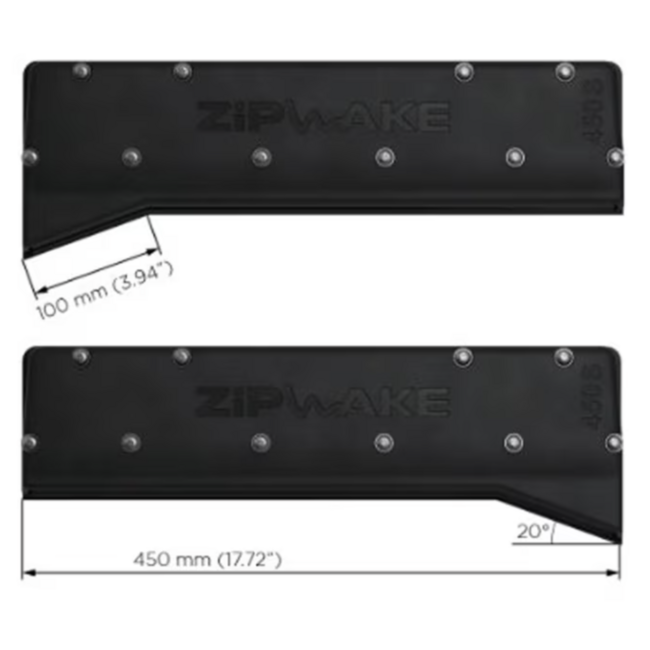

Chine Interceptors (IT450-S PRO Chine)
Two 450 mm chine interceptors designed for installation on angled or V-shaped transoms. Equipped with powerful brushless servomotors, they deliver rapid 30 mm actuation stroke and high-precision control, even at speeds above 50 knots. The housings are fully submersible (IP68) and oil- and impact-resistant.

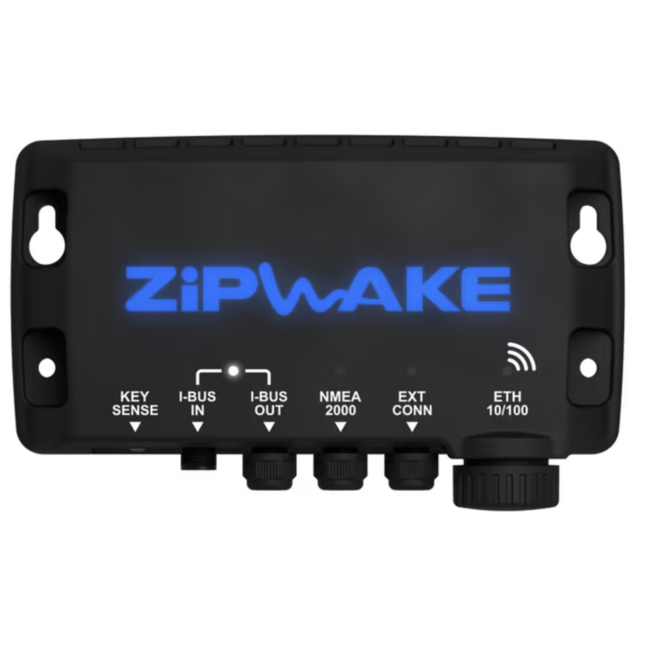

Integrator Module (IM-S PRO)
This compact unit manages system coordination and connects directly to NMEA 2000 networks and smart devices. It allows full control via multifunction displays (MFDs) or the Zipwake app. The IM is waterproof, easy to install behind the helm or dashboard, and includes wireless update capabilities for simplified maintenance.

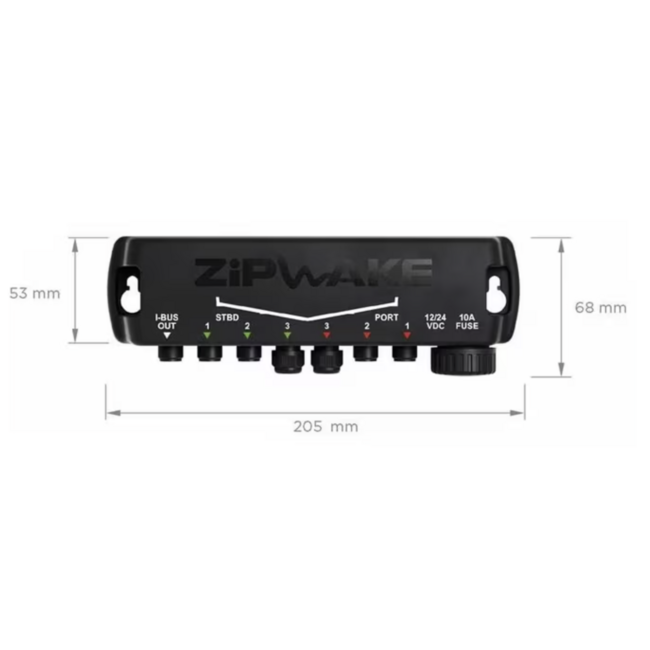

Distribution Unit (DU-S PRO)
Powers the interceptor pair and protects the system with integrated fuses and overload protection. Rated IP67 and safe for installation in engine compartments.
Interceptor type: Chine (angled transom)
Interceptor length: 450 mm (17.7 in)
Blade stroke: 30 mm (1.2 in)
Actuation speed: 20 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 18 m (≈ 60 ft)
Voltage range: 12–32 V DC
Power consumption: 25 W maximum per interceptor
Ingress protection: IP68 (interceptors), IP67 (distribution unit and integrator module)
Servo type: Brushless, submersible actuators
Connector type: M12 5-pin circular
Cable: PUR 3 m (extendable to 6 m)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit weight: ≈ 18 kg

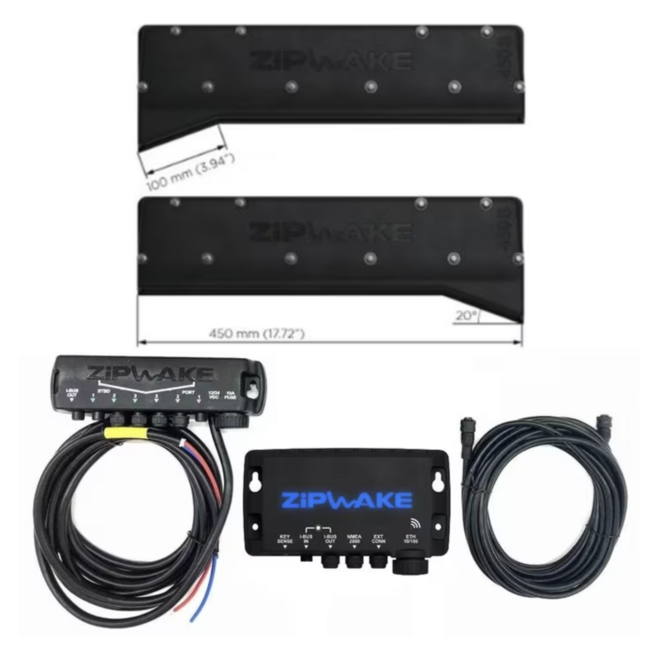

2 × Chine Interceptors (450 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-S PRO) with 4 m power cable
1 × Integrator Module (IM-S PRO)
1 × Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card
The 450S PRO Chine interceptors must be positioned flush along the hull’s V-shaped transom surfaces to maintain a uniform water flow and ensure proper lift distribution. When installing the Integrator Module, locate it near the helm or bridge for easy network access and visibility, using a single waterproof Ethernet connection.
The Distribution Unit should be installed in a dry technical compartment, allowing access for power supply and maintenance. Cable routing below the waterline requires careful sealing using watertight fittings to preserve IP rating. The modular design allows straightforward expansion up to six interceptors for broader trim coverage and improved vessel balance.
