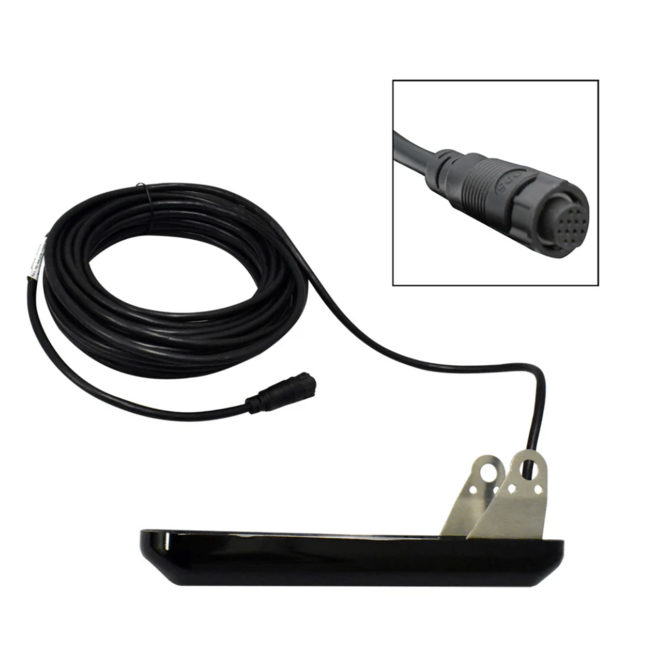

Airmar 455T-TM903 CHIRP Side-Scan transom-mount transducer, 150 W per side at 445–465 kHz. Designed for small and mid-size vessels, it delivers clear port/starboard imaging with a temperature sensor, 12-pin Furuno plug and 12 m cable. Read more.
The AIRMAR 455T-TM903 is a high-frequency CHIRP Side-Scan transom-mount transducer designed for vessels using the built-in CHIRP Side-Scan function of Furuno NavNet TZtouchXL displays (TZT10X, TZT13X, TZT16X). Operating at 150 W per side within a 445–465 kHz CHIRP band, it provides sharp, high-contrast left/right imaging ideal for structure detection, seabed analysis and survey applications. The rugged plastic housing and included mounting bracket make it suitable for a wide range of hull types.
This model is ideal for small to medium vessels, trailer boats, workboats and recreational craft requiring clear side-scan coverage without thru-hull installation. The transom-mount design simplifies installation and service access while maintaining reliable acoustic performance. With an integrated temperature sensor, a 12-pin Furuno connector, and a 12 m cable, it offers straightforward plug-and-play compatibility with supported systems.
High-frequency CHIRP Side-Scan: Provides detailed port/starboard imaging with strong target separation.
Optimized for TZtouchXL: Works with the built-in CHIRP side-scan function on TZT10X, TZT13X and TZT16X.
445–465 kHz CHIRP band: Ideal for shallow to mid-depth high-resolution imaging.
150 W per side: Consistent output for clean, stable returns.
Rugged plastic housing: Lightweight, durable and suitable for transom installations.
Integrated temperature sensor: Delivers accurate water temperature data.
Transom mount bracket: Included for secure and adjustable installation.
12-pin Furuno interface: Direct plug-and-play connection.
Transom-Mount Sidescan Transducer
Plastic-body CHIRP Side-Scan transducer with integrated temperature sensor, designed for reliable lateral imaging on vessels where thru-hull installation is not preferred.
Mounting Bracket & Hardware
Complete transom-mount bracket system with adjustable angles, stainless hardware and installation fittings.
Connection Cable (12 m)
Factory-installed marine cable with a 12-pin Furuno connector for direct connection to TZtouchXL displays.
Power: 150 W per side
Frequency: 445–465 kHz (High-Frequency CHIRP)
Material: Plastic
Installation: Transom mount
Connector: 12-pin Furuno
Cable length: 12 m
Sensors: Water temperature
Primary function: High-frequency CHIRP side-scan imaging
Compatible MFDs: TZT10X / TZT13X / TZT16X (NavNet TZtouchXL)
Supported systems: Fully compatible with Furuno NavNet TZtouchXL displays using built-in CHIRP Side-Scan.
Connector: 12-pin Furuno plug; no adapters required.
Function support: Enables CHIRP Side-Scan imaging and temperature display.
Limitations: Not compatible with older NavNet models or systems lacking built-in side-scan capability.
455T-TM903 CHIRP Side-Scan transducer
Transom-mount bracket and stainless hardware
12 m cable with 12-pin Furuno connector
Installation documentation
Mount the transducer on the transom where it has clean, undisturbed water flow at all operating speeds. Avoid strakes, steps and exhaust outlets that generate turbulence or aeration. The bracket must be aligned to maintain correct beam orientation for accurate port/starboard imaging. Route the cable through a watertight fitting and keep it clear of high-interference wiring. Full functionality requires a NavNet TZtouchXL display with built-in CHIRP Side-Scan.
