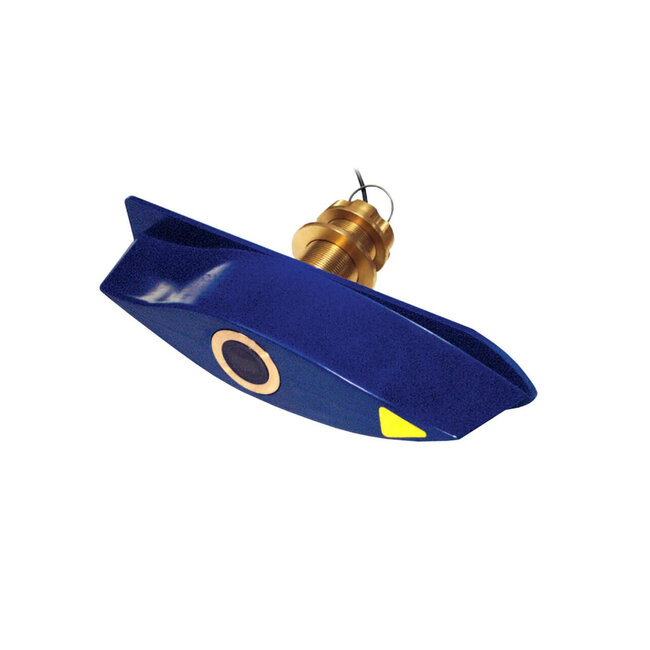

B122 DT Long Stem Bronze

The B122 is a long-stem, through-hull transducer specifically engineered for thick-hulled wooden boats or vessels with steep deadrise angles. Its extended housing ensures proper installation in challenging hull structures, while the included high-performance fairing aligns the transducer beam vertically for strong echo returns and accurate readings, even at higher speeds. The retractable design allows the insert to be easily removed for maintenance or storage without compromising hull integrity. With built-in temperature sensing and a straightforward single-cable connection, the B122 delivers reliable depth and temperature data to any compatible instrument or display.

FEATURES

• Depth and temperature
• 100 W
• 200 kHz frequency most common marine instrument systems
• For thick-hulled or steep-deadrise vessel
• Can install as a low-profile mount with adapter ring
• Retractable insert in a bronze housing only
• Also available in NMEA 0183 or NMEA 2000® versions

SPECIFICATIONS

• Power Rating: 100 W
• Max Deadrise Angle: 28°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 9 m (30')
• Hole Size: 51 mm (2"), 57 mm (2-1/4") installation with adapter ring
• Acoustic Window: Urethane
• Common Use: Cruising/Racing Sailboats, Leisure/Yachting
• Conventional Beam: 14°
• Data Rate: 1X per second
• Max Deadrise: Up to 28° with fairing
• Max Depth: Up to 180 m (590')—Broadband
• Mounting Style: Thru-Hull with Fairing
• Retractable housing: Yes
• Single or Dual Frequency: Conventional Single Frequency
• Tilted Element: No
• Weight: 3.9 kg (8.7 lb.)
