Professional dynamic trim system for vessels up to 18 m. The Zipwake 300S PRO Integrator combines high-speed straight interceptors with centralized IM-S PRO control, delivering real-time pitch and roll correction, fuel savings, and stability at high speed Read more.
The Zipwake Series 300S PRO Integrator Module Straight Kit Box Trim System is a professional-grade trim and stabilization solution designed for fast and demanding vessels up to 18 m (≈ 60 ft) in length. As part of the S PRO range, it delivers faster response times, stronger components, and improved durability compared to the standard S Series — ensuring maximum reliability under continuous use.
Unlike the standard control panel configuration, this version integrates the Zipwake Integrator Module (IM-S PRO), which allows centralized management of multiple Zipwake systems or interceptors from a single streamlined interface. It connects seamlessly with multifunction displays (MFDs) and smart devices, making it ideal for vessels with more complex installations or multiple engines.
With real-time automatic control of pitch and roll, the 300S PRO Integrator Straight Kit optimizes performance, improves comfort, and reduces fuel consumption. Its compact, watertight, and modular design ensures a straightforward installation process and effortless system expansion.
Centralized control: Integrator Module enables seamless connection to multiple Zipwake units and MFDs.
Professional performance: Built for heavy-duty use in fast commercial and leisure craft.
Ultra-fast servo response: High-speed actuators ensure immediate trim correction under load or wave impact.
Automatic stabilization: Continuously adjusts pitch and roll for optimal comfort and efficiency.
Fuel economy: Reduces drag and improves hydrodynamic performance.
Compact straight design: Perfect for transoms with limited space requiring linear lift response.
Wireless configuration: Can be monitored and updated via the Zipwake app on smart devices.
Durable and watertight: IP68-rated interceptors and IP67-rated electronics ensure reliable operation in all conditions.

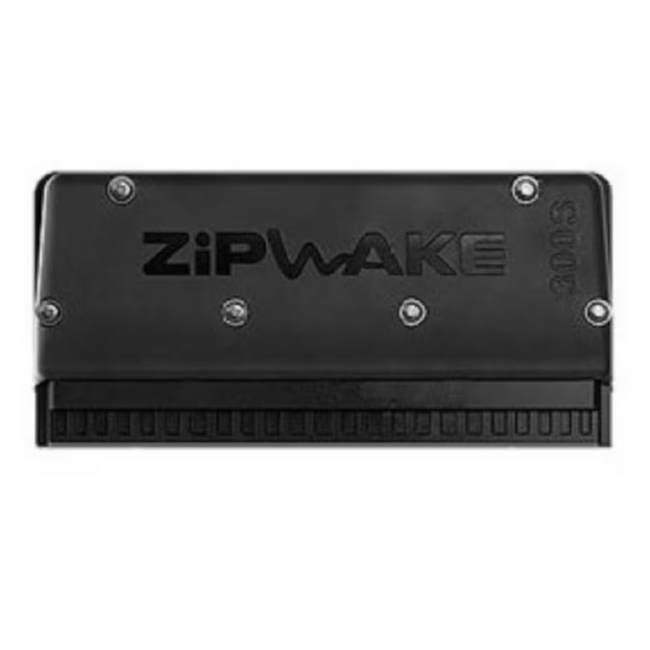

Straight Interceptors (IT300-S PRO)
Two 300 mm straight interceptors with brushless servo technology, delivering fast, precise lift control. Their compact design provides efficient performance even at high speeds, making them ideal for fast planing hulls.

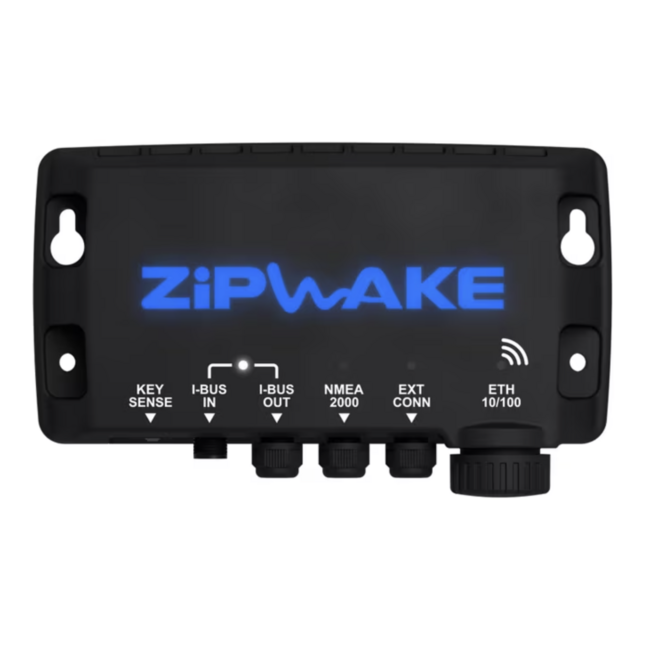

Integrator Module (IM-S PRO)
Compact, waterproof module that replaces the traditional control panel. It connects multiple interceptors or systems through a single network and supports wireless control and updates via smartphones or tablets. Fully compatible with NMEA 2000 and MFD interfaces, it enables flexible installation options across different consoles.

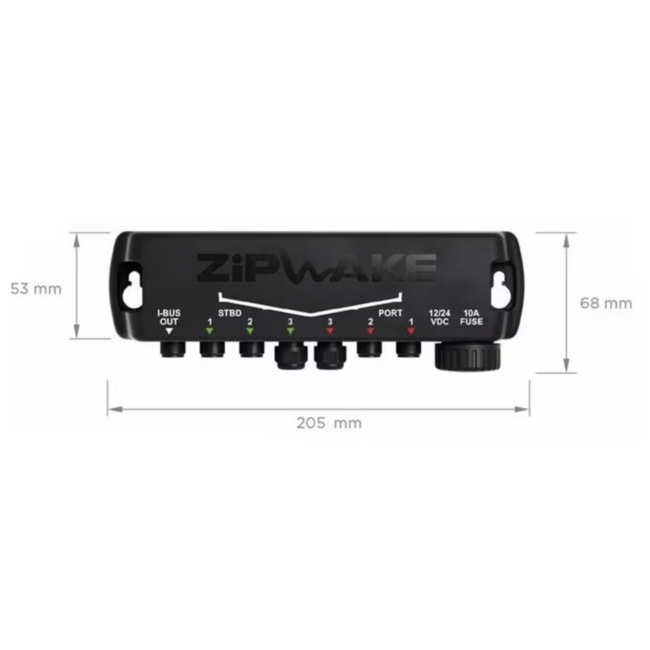

Distribution Unit PRO (DU-S PRO)
Provides power and data management for up to six interceptors. The unit is waterproof, oil-resistant, and ignition-protected for safe installation in demanding environments. Includes a 4 m power cable and built-in protection circuitry.
Interceptor type: Straight
Interceptor length: 300 mm (11.8 in)
Blade stroke: 30 mm (1.2 in)
Actuation speed: 20 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 18 m (≈ 60 ft)
Voltage range: 12 – 32 V DC
Power consumption: Approx. 25 W max
Ingress protection: IP68 (interceptors), IP67 (DU & IM modules)
Servo type: Brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit box weight: ≈ 12 kg (26 lb)

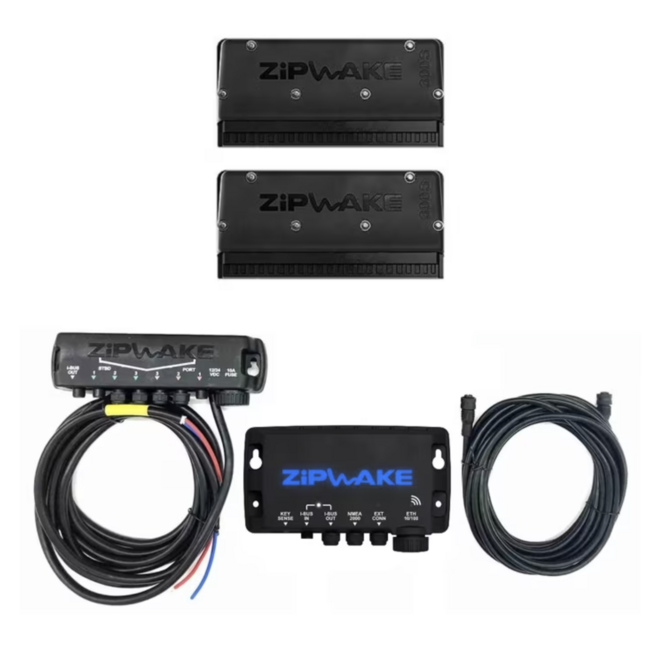

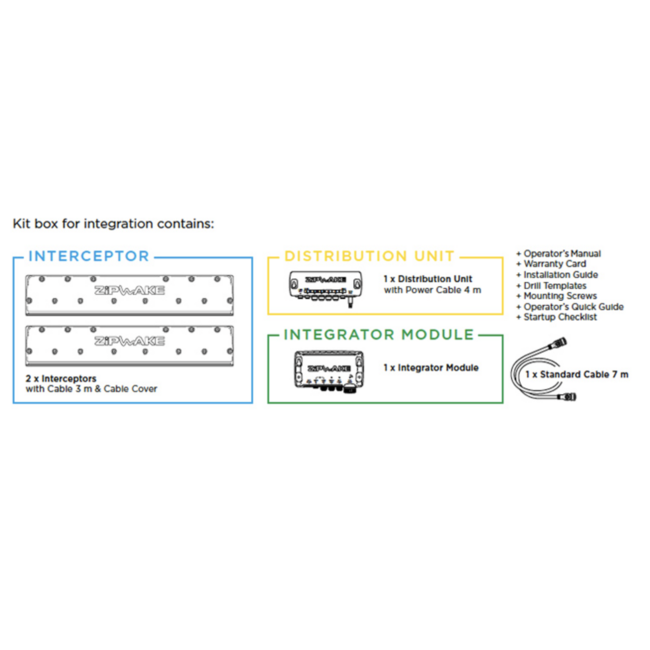

2 × Straight Interceptors (300 mm) with 3 m cables and mounting plates
1 × Distribution Unit PRO (DU-S PRO) with 4 m power cable
1 × Integrator Module (IM-S PRO)
1 × Standard Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card
INSTALLATION CONSIDERATIONS
The Integrator Module allows flexible mounting locations — typically behind the helm, in the flybridge, or in an engine compartment. Its compact size and watertight design simplify installation, while standard Ethernet connectors ensure straightforward MFD integration. The straight interceptors should be flush-mounted along the transom for optimal waterflow and efficiency. Proper cable sealing and alignment are essential to maintain IP ratings and system integrity.
