Zipwake Series 750S Integrator Module Straight Kit Box Trim System

The Zipwake Series S 750S Integrator Module Straight Kit Box Trim System is an advanced dynamic trim control solution designed for vessels up to 15.5 m (50 ft) and speeds of up to 110 km/h (≈60 knots). Compared to conventional trim tab systems, the Series S provides 5–10 times faster response, improved lift, and simplified installation. This model includes 750 mm straight interceptors, offering greater lift force for larger or stern-heavy craft while maintaining precise pitch and roll correction.

The kit integrates high-performance interceptors with the Integrator Module (IM-S) and a rugged distribution unit, ensuring seamless connectivity to multifunction displays (MFDs) and smart devices. With wireless control via the Zipwake app, the system allows configuration, monitoring, and updates directly from smartphones or tablets. Its fully automatic operation enhances stability, safety, and fuel efficiency, while keeping dashboards clean and uncluttered.

FEATURES

• Automatic stabilization: Real-time pitch and roll correction with integrated GPS, gyro, and accelerometer sensors.
• Straight interceptor design: 750 mm interceptors provide enhanced lift for larger or stern-heavy vessels.
• Integrator Module (IM-S): Enables seamless integration with MFDs, CAN bus systems, and wireless devices.
• High responsiveness: 60 mm blade stroke and fast actuation for immediate trim adjustments.
• Fuel efficiency: Optimized trim reduces drag and fuel consumption.
• Scalable system: Supports up to six Series S interceptors per distribution unit.
• Durable build: Waterproof, oil-resistant, and ignition-protected for reliable operation.
• User-friendly operation: Wireless control and optional support for up to three additional control panels.
• Upgradeable software: Updates available via the Zipwake app or website.

MAIN COMPONENTS

Straight Interceptors (IT750-S Straight)

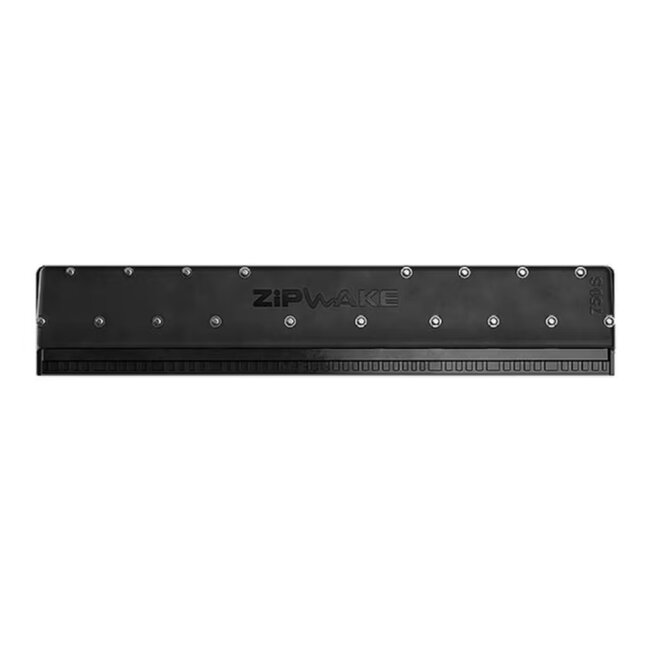

Two 750 mm straight interceptors with fast single-servo actuators. Designed for precision stabilization on sport and semi-commercial craft, they deliver superior lift and rapid correction of roll and pitch.

Distribution Unit (DU-S)

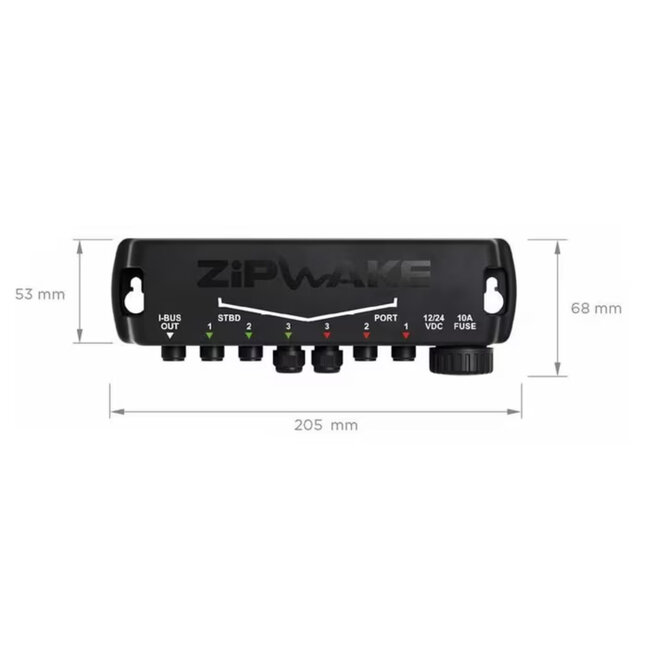

Supplies power and connectivity to all components. Waterproof, oil-resistant, and ignition-protected for safe installation below deck. Includes a 4 m power cable and built-in protection. Supports up to six interceptors.

Integrator Module (IM-S)

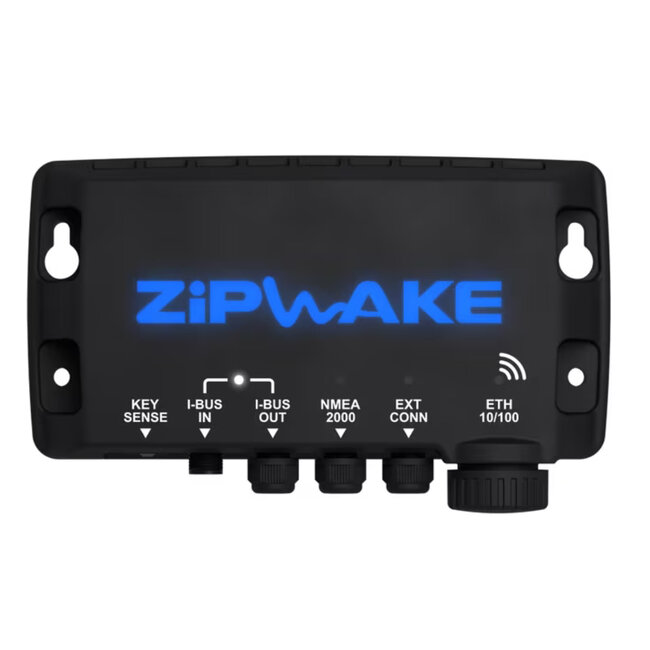

Compact, waterproof module that integrates the Zipwake system with MFDs and wireless devices. Equipped with RGB LED status indicators, CAN bus interface, and seamless connectivity. Allows real-time monitoring, control, and updates through the Zipwake app.

SPECIFICATIONS

• Interceptor length: 750 mm (29.5 in).
• Interceptor type: Straight.
• Blade stroke: 60 mm (2.4 in).
• Actuation speed: 30 mm/s.
• Maximum vessel speed: Up to 60 knots (≈110 km/h).
• Suitable vessel length: Up to 15.5 m (50 ft).
• Voltage range: 12–32 V DC.
• Power consumption: Approx. 25 W max.
• Ingress protection: IP68 (interceptors), IP67 (DU-S, IM-S).
• Servo type: Single brushless servo actuators.
• Connectivity: NMEA 2000, CAN bus, wireless via Zipwake app.
• Cable length: 3 m standard (extendable).
• Operating temperature: 0 °C to +40 °C (32 °F to 104 °F).
• Storage temperature: –40 °C to +90 °C (–40 °F to 194 °F).
• Kit box weight: Approx. 20–22 kg.

WHAT THE KIT INCLUDES

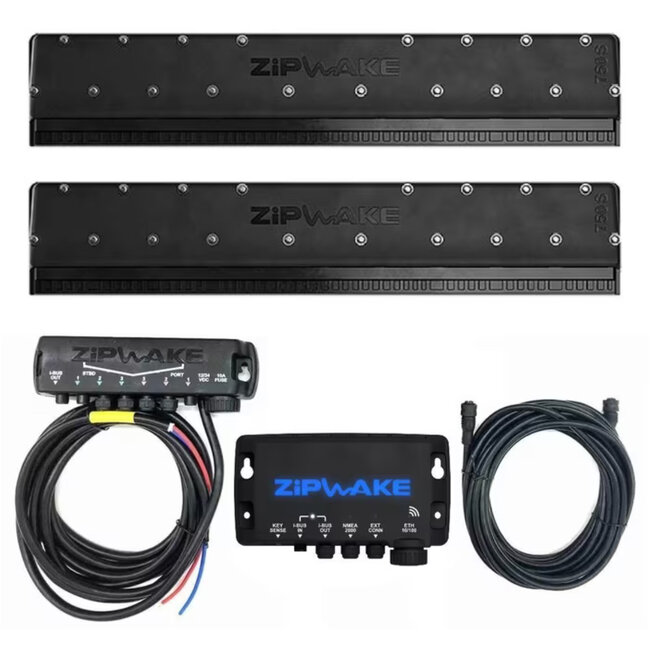

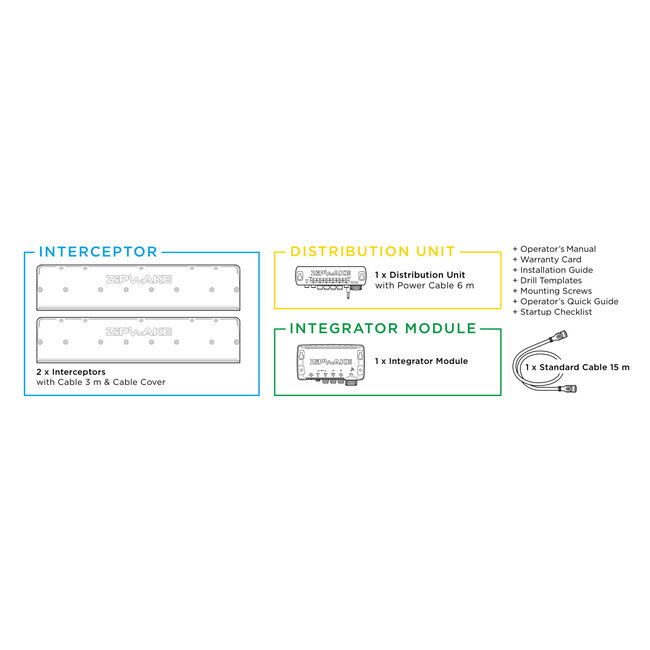

• 2 × Straight Interceptors (750 mm) with 3 m cables and mounting plates.
• 1 × Distribution Unit S (DU-S) with 4 m power cable.
• 1 × Integrator Module (IM-S).
• 1 × Extension Cable.
• Operator’s Manual.
• Installation Guide.
• Drill Templates.
• Mounting Screws.
• Quick Guide.
• Warranty Card.

INSTALLATION CONSIDERATIONS

The 750 mm interceptors should be mounted symmetrically on the transom, ensuring blades are flush with the hull surface. Use the included drill templates for precise alignment. Due to their larger size, verify there is sufficient flat mounting space on the transom. The Distribution Unit should be installed in a dry, accessible compartment (such as the engine room), allowing room for cable routing. If cables run below the waterline, always use watertight grommets. The IM-S can be mounted behind the dashboard, on a flybridge, or in the machinery space, requiring only a single Ethernet cable to an MFD. When installing, check clearance for blade extension (60 mm stroke) to avoid interference.
