The Zipwake Series 400E Chine Kit Box Trim System is a professional-grade dynamic trim control solution designed for vessels up to 30 m (100 ft) and speeds of up to 60 knots. As part of the Series E range, it features larger, faster, and more robust interceptors than the Series S, making it ideal for heavier and high-performance boats.
The Chine configuration is specifically engineered for angled hull surfaces, providing optimal roll and pitch compensation on deep-V and multi-hull vessels. The Series E delivers enhanced lift, faster response, and smoother navigation through its 60 mm blade stroke, 40 mm/s actuation rate, and dual-servo technology. With automatic stabilization, improved comfort, and reduced fuel consumption, it ensures a safer and more efficient ride in all sea conditions.
Chine-optimized design: Tailored for angled hull sections, providing precise lift and superior roll correction.
High-performance operation: Dual-servo actuators for fast and accurate motion control at speeds up to 60 knots.
Automatic stabilization: Continuously adjusts pitch and roll for maximum comfort and safety.
Fuel efficiency: Reduces drag and wave resistance, improving overall fuel economy.
Rugged and watertight: IP68-rated interceptors and IP67-rated electronics ensure reliability under demanding conditions.
System scalability: DU-E supports up to three dual-servo interceptors; expandable to six with the DU-EX.
Easy installation: Includes all cables, templates, and hardware for quick and precise mounting.

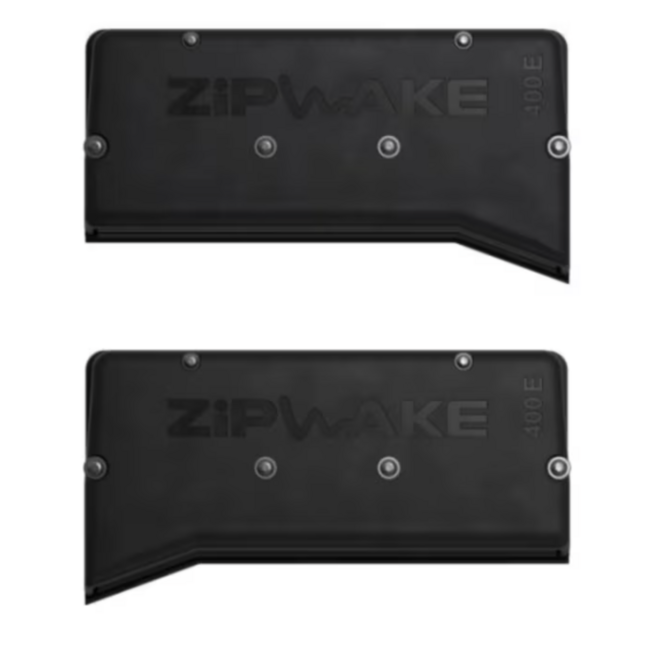

Chine Interceptors (IT400-E Chine)
Two 400 mm chine interceptors, designed for angled hull surfaces. Equipped with dual brushless servos that deliver rapid blade movement and superior lift for effective stabilization even at high speeds.

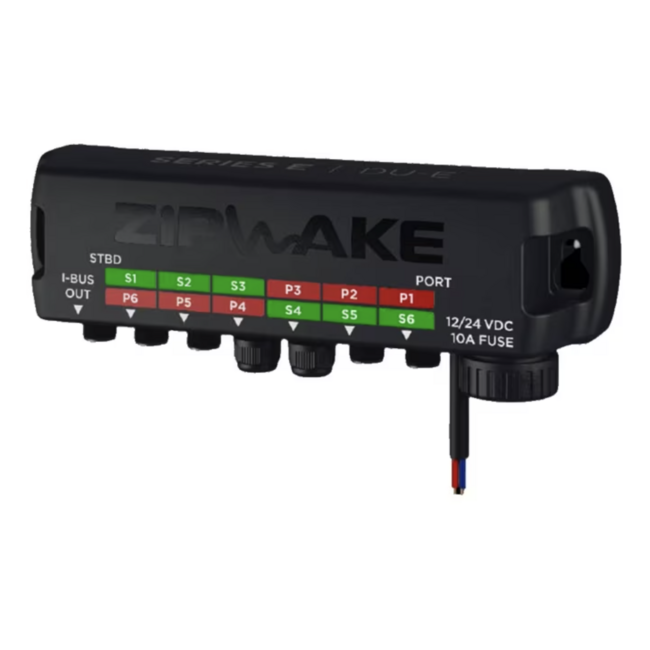

Distribution Unit (DU-E)
The central power and communication hub of the system. It connects and supplies power to the interceptors, providing built-in protection against short circuits and overloads. Rugged, waterproof (IP67), oil-resistant, and ignition-protected, it is safe for installation below deck.
Control Panel (CP-E)

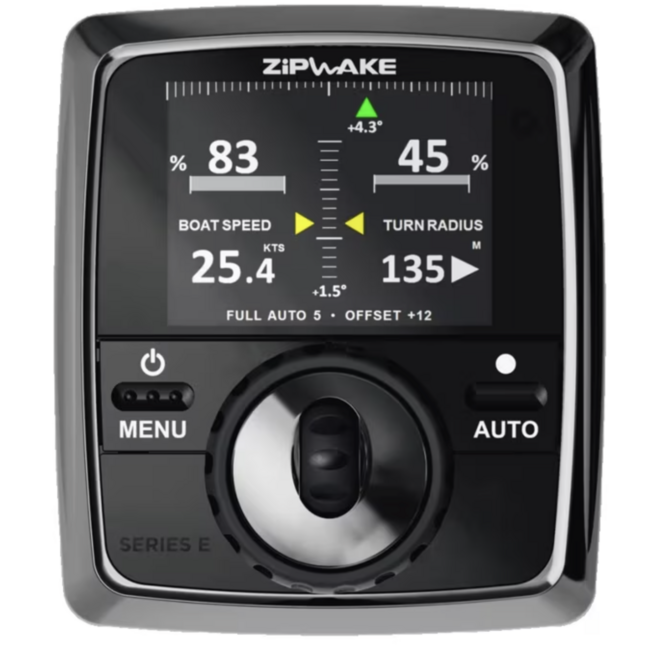

An intuitive 3D control panel featuring a bright, sunlight-readable display and dual control dials for easy manual adjustments. It enables fully automatic operation, continuously monitoring vessel speed, roll, and pitch angles.
Interceptor type: Chine (angled surface)
Interceptor length: 400 mm (15.7 in)
Blade stroke: 60 mm (2.4 in)
Actuation speed: 40 mm/s
Maximum vessel speed: Up to 60 knots (≈ 110 km/h)
Vessel length: Up to 30 m (≈ 100 ft)
Voltage range: 12–32 V DC
Power consumption: Approx. 50 W max
Ingress protection: IP68 (interceptors), IP67 (DU & CP)
Servo type: Dual brushless, submersible actuators
Connector type: M12 5-pin circular
Cable length: 3 m standard (extendable to 6 m)
Operating temperature: 0 °C to +40 °C (32 °F – 104 °F)
Storage temperature: –40 °C to +90 °C (–40 °F – 194 °F)
Kit box weight: ≈ 15 kg (33 lb)

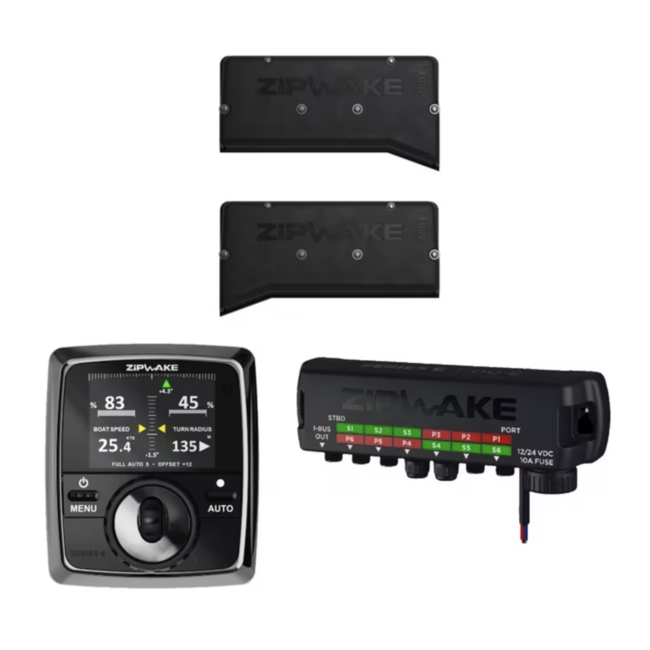

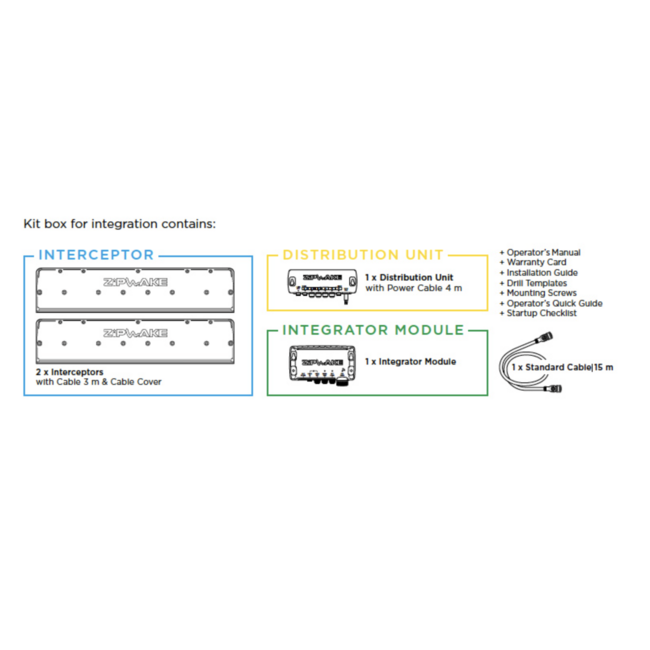

2 × Chine Interceptors (400 mm) with 3 m cables and mounting plates
1 × Distribution Unit (DU-E) with 4 m power cable
1 × Control Panel (CP-E)
1 × Standard Extension Cable
Operator’s Manual
Installation Guide
Drill Templates
Mounting Screws
Quick Start Guide
Warranty Card
The chine interceptors should be installed flush with the angled hull surfaces to ensure optimal water flow and effective roll control. Each interceptor must be mounted precisely using the included drilling templates to maintain balance and symmetry. The Distribution Unit is best placed in a dry, accessible area such as the engine room, while the Control Panel should be mounted at the helm for easy access and visibility.
Cable penetrations below the waterline must be sealed with watertight grommets to preserve IP protection. The system’s modular architecture allows for seamless expansion up to six interceptors without additional connectors or power supplies. Correct alignment and configuration ensure consistent lift, smooth stabilization, and efficient performance at all speeds.
