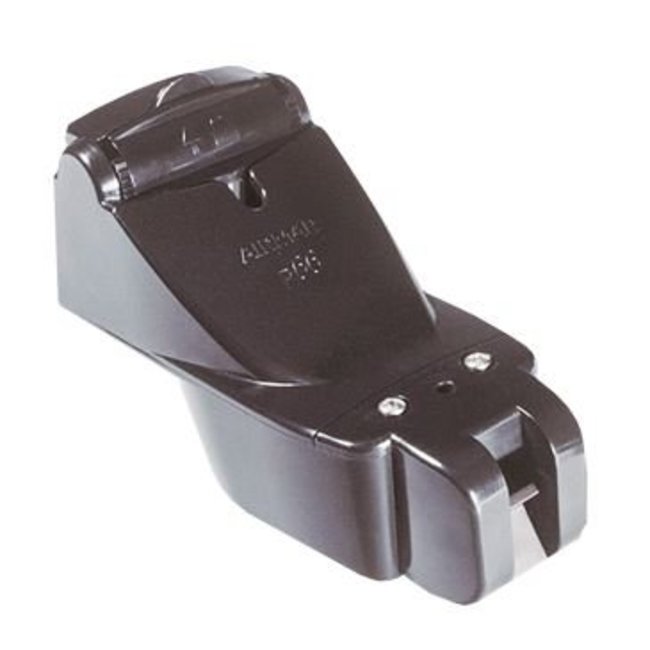

Transducer P66DT Rear Mount
The P66S TRIDUCER® Multisensor integrates depth, speed, and temperature sensing into a single, hydrodynamic housing designed for transom mounting. Operating on a dual-frequency 50/200 kHz ceramic element, it delivers excellent target detail in shallow waters and solid bottom tracking in deeper depths. The rounded nose design minimizes turbulence under the transducer face, enabling accurate readings even at high speeds. Ideal for boats up to 8 meters (25 feet), the P66S is Airmar’s top-performing TRIDUCER for transom-mount applications.
FEATURES
- Depth, speed, and fast-response water-temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
SPECIFICATIONS
- Power Rating: 600 W
- Functions: Depth, Speed, Temperature
- Max Vessel LOA: Up to 8 m (26')
- Acoustic Window: Layered plastic urethane (LPU)
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Housing: Plastic
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Transom
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Weight: 0.5 kg (1.1 lb.)
