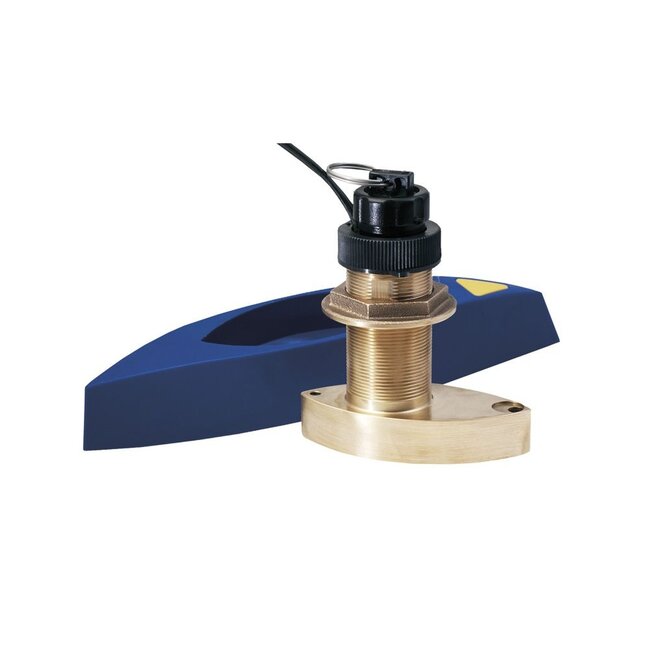

B744V 50/200A Thru Hull DST
The B744V is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. Its 50/200 kHz, dual-frequency ceramic element delivers detailed target definition in shallow water at 200 kHz and reliable bottom tracking in deeper waters at 50 kHz. For vessels with steep deadrise or thick, cored hulls made of fiberglass or wood, the B744V is also available in an extended stem version (B744VL). When paired with the required High-performance Fairing, it delivers excellent performance at speeds up to 30 knots (34 MPH).
FEATURES
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
- The extra-length housing (B744VL) allows mounting in thicker and/or high-deadrise hull
SPECIFICATIONS
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Leisure/Yachting, Fishing
- Connector: Raymarine 9-Pin
- Conventional Beam: 45°/12°
- Country of Origin: USA
- Cross Reference: A66091
- Deadrise Range: Up to 25° with fairing
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency - 366 m (1200'), High frequency - 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lb.)
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 121 mm (4.75")
- Display Connector: RAYA
